Pressure Sensor Option Installation (if required)
1. Perform all combine and header manufacturer safety
precautions for servicing header.
2. Remove header from combine.
3. Insert stop to prevent movement of header.
4. Release all pressure in hydraulic cylinders.
• Lower feeder house against lock and hold button for
10 seconds
5. Turn off combine and remove key from ignition.
6. Set combine parking brake.
7. Disconnect all drive shafts from header.

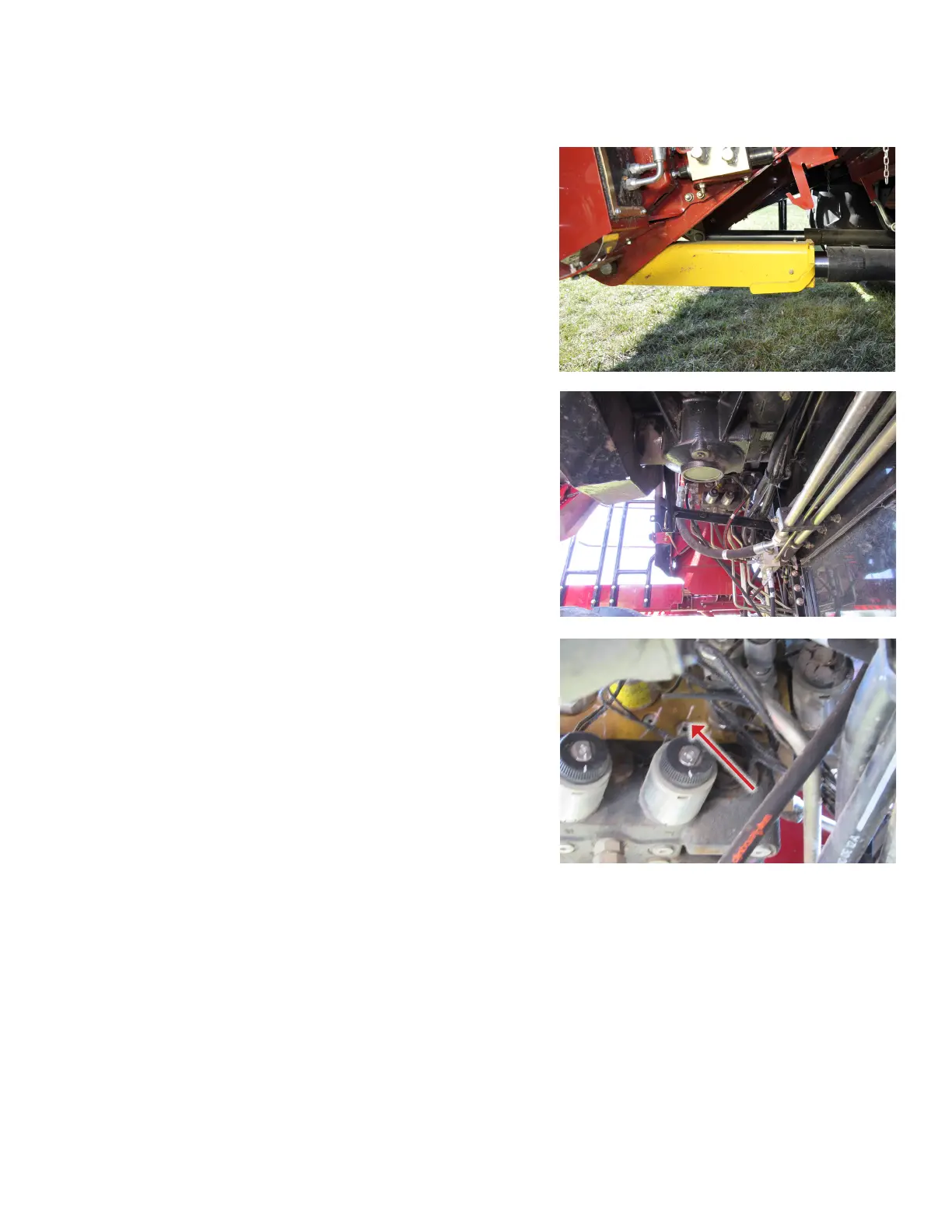

8. Install pressure sensor in marked location.
• Remove plug
• Install provided pressure sensor
9. Connect harness to sensor.
• Usually tied back to another harness
10. Carefully route harness to front of combine near header
connector attaching with zip ties.
11. Connect harness to main insight wiring (4 pin round
AMP connector).
