Installation
Feathersight
®
Option Installation (if equipped)

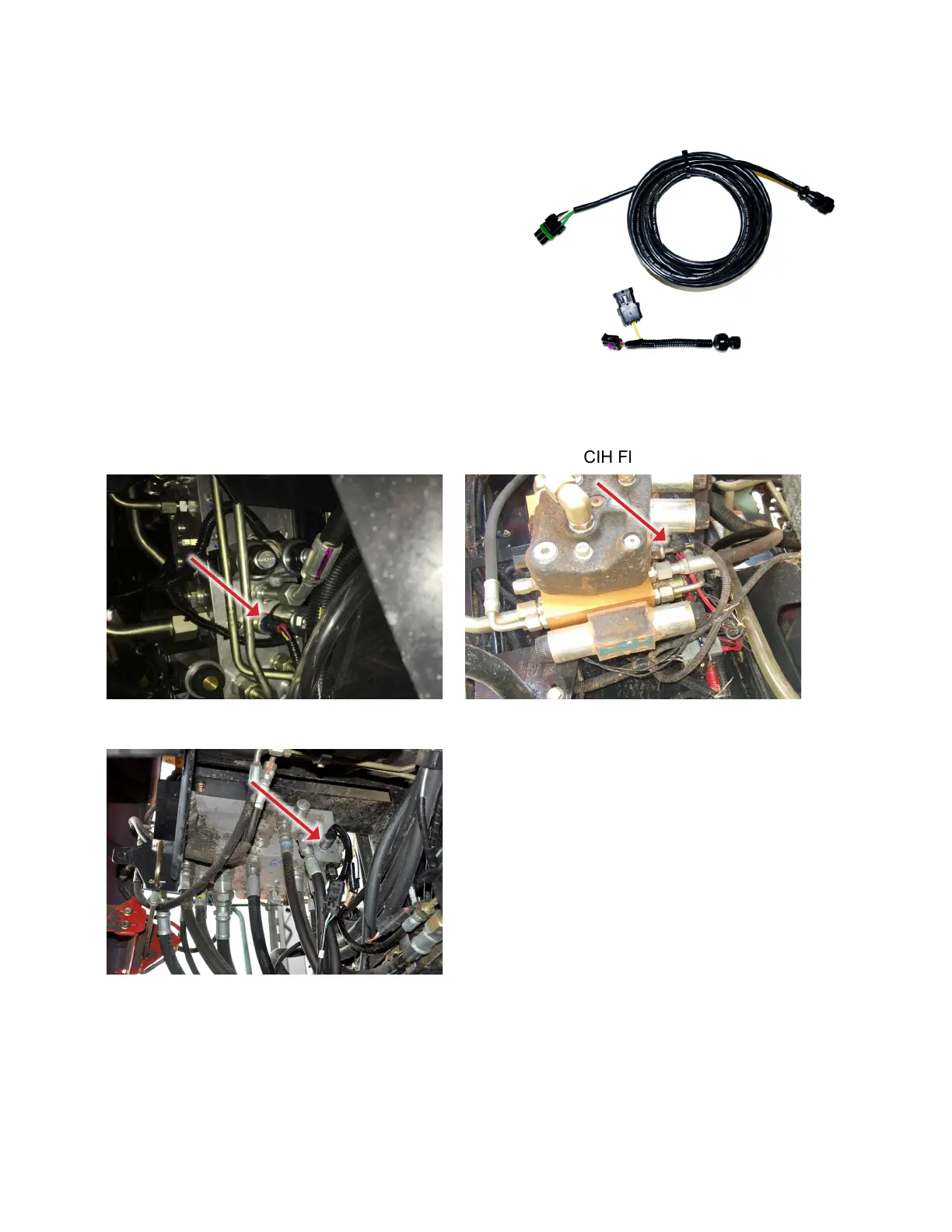

1. If combine already has a feederhouse pressure sensor
connect “Y” harness in-line with combine feeder house
pressure sensor on main valve block.
• If combine does not have a feeder house pressure
sensor follow steps in next section
2. Connect harness to sensor.
3. Carefully route harness to front of combine near header
connector and attach with zip ties.
4. Connect harness to main insight wiring (4 pin round
AMP connector).
CIH Flagship, x250 CIH Flagship
CIH Midrange (if equipped)
