7
Installation
“Basic” Harness Only Systems
Harness only systems do not use the Insight box. After completing this section go directly to
Combine Ground Calibration section.

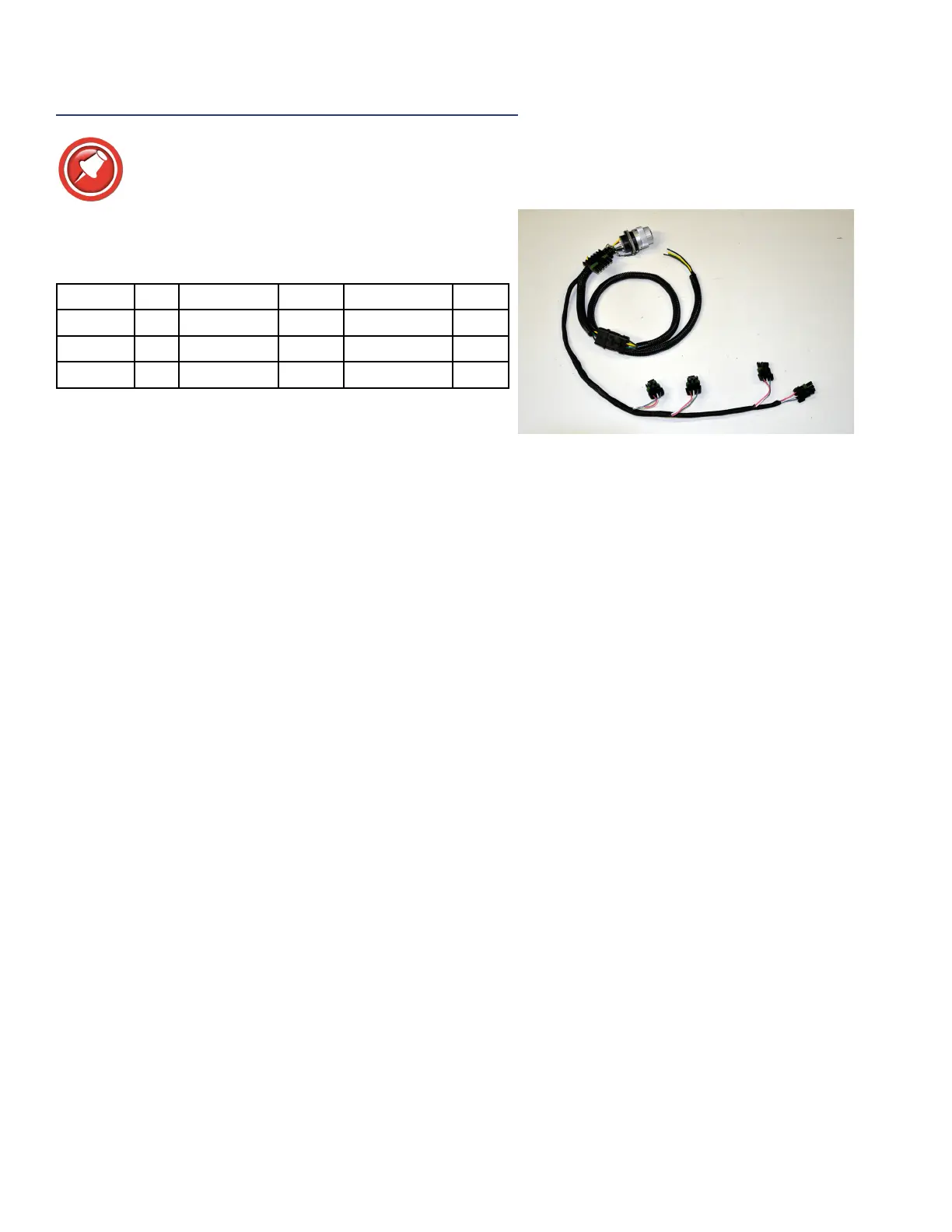

1. Connect sensor wiring to main Headsight harness.
• Sensor location as viewed from operator’s seat
Le Le Center Center Right Center Right
2 Sensor X X
3 Sensor X X X
4 Sensor X X X X
*L-Left, LC-Left Center, C-Center, RC-Right Center, R-Right
2. Connect 31 pin Y311 connector to combine.
3. Connect remaining Y312 connector to header.
• If you have no Y312 connector, you may connect warning /stubble lights using wire labels
R
LC
L
RC
