Case IH 9250 - Insight Systems; Insight Box Mounting and Main Harness Wiring

2
Installation
Complete the installation portion of the header manual before continuing. If you have
a “Basic” Harness Only System, you may ignore the sections and steps in this manual
designated “Insight”.
Insight
®
Systems
Insight
®
Box Mounting and Main Harness Wiring
If you do not have an Insight box, proceed to “Basic” Harness only System section. Skip steps
2-4 if the Header manual already had you mount Insight box.

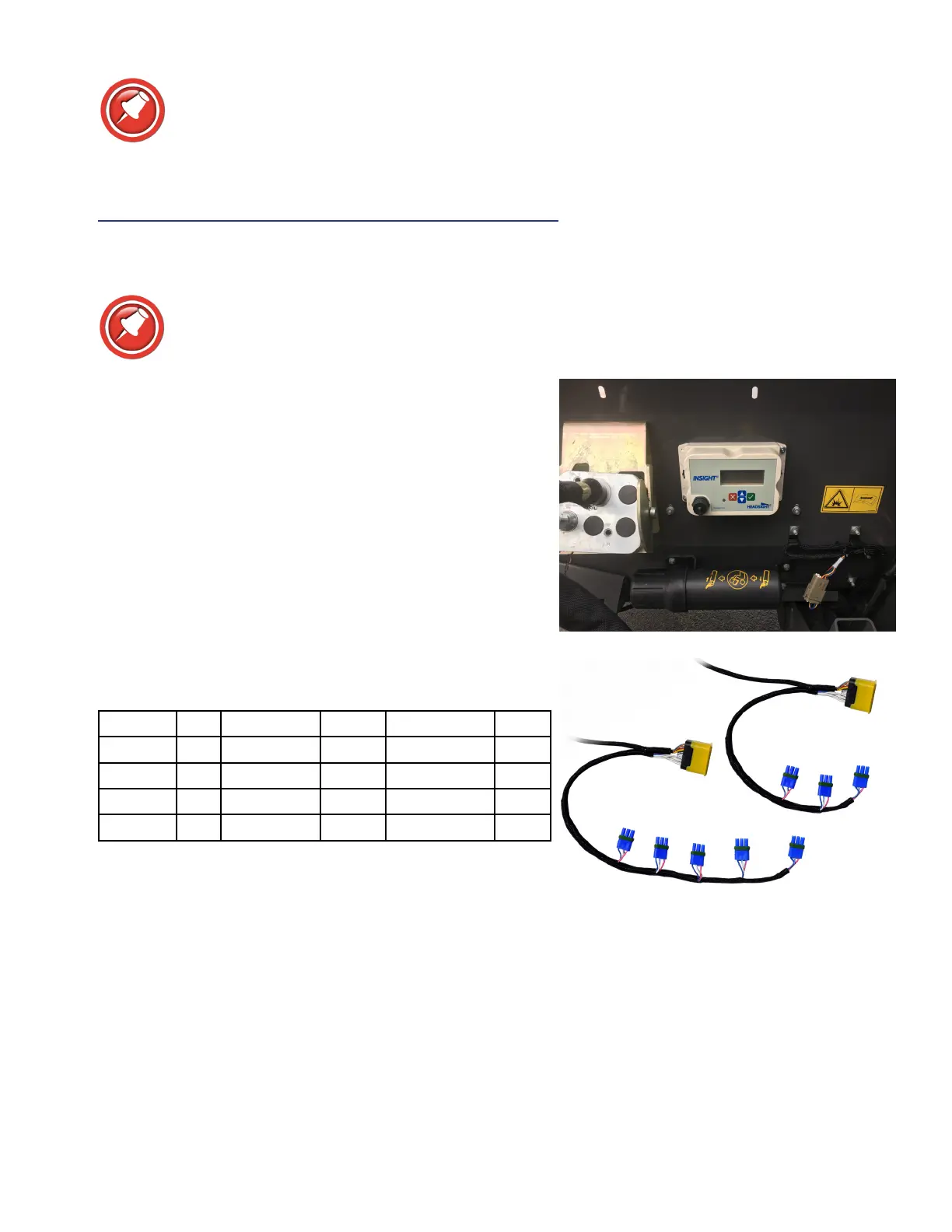

1. Connect main Headsight harness to Insight box.
2. Hold box at rear of header so Headsight harness can
reach feeder house electrical connection of combine and
mark mounting hole locations.
3. Drill mounting holes using ¼" drill bit.
4. Secure box to header using ¼" bolts provided.
5. Connect sensor wiring to main Headsight harness.
• Sensor location as viewed from operator’s seat
Le Le Center Center Right Center Right
2 Sensor X X
3 Sensor X X X
4 Sensor X X X X
5 Sensor X X X X X
*L-Left, LC-Left Center, C-Center, RC-Right Center, R-Right
6. Connect 31 pin Y311 connector to combine.
7. Connect remaining Y312 connector to header.
• If you have no Y312 connector, you may connect warning /stubble lights using wire labels
RC
R
C
LC
L
R
L
C
