Case IH 9250 - Insight Settings; Tilt Algorithm Selection

14
Settings
Insight
®
Settings
Tilt Algorithm Selection

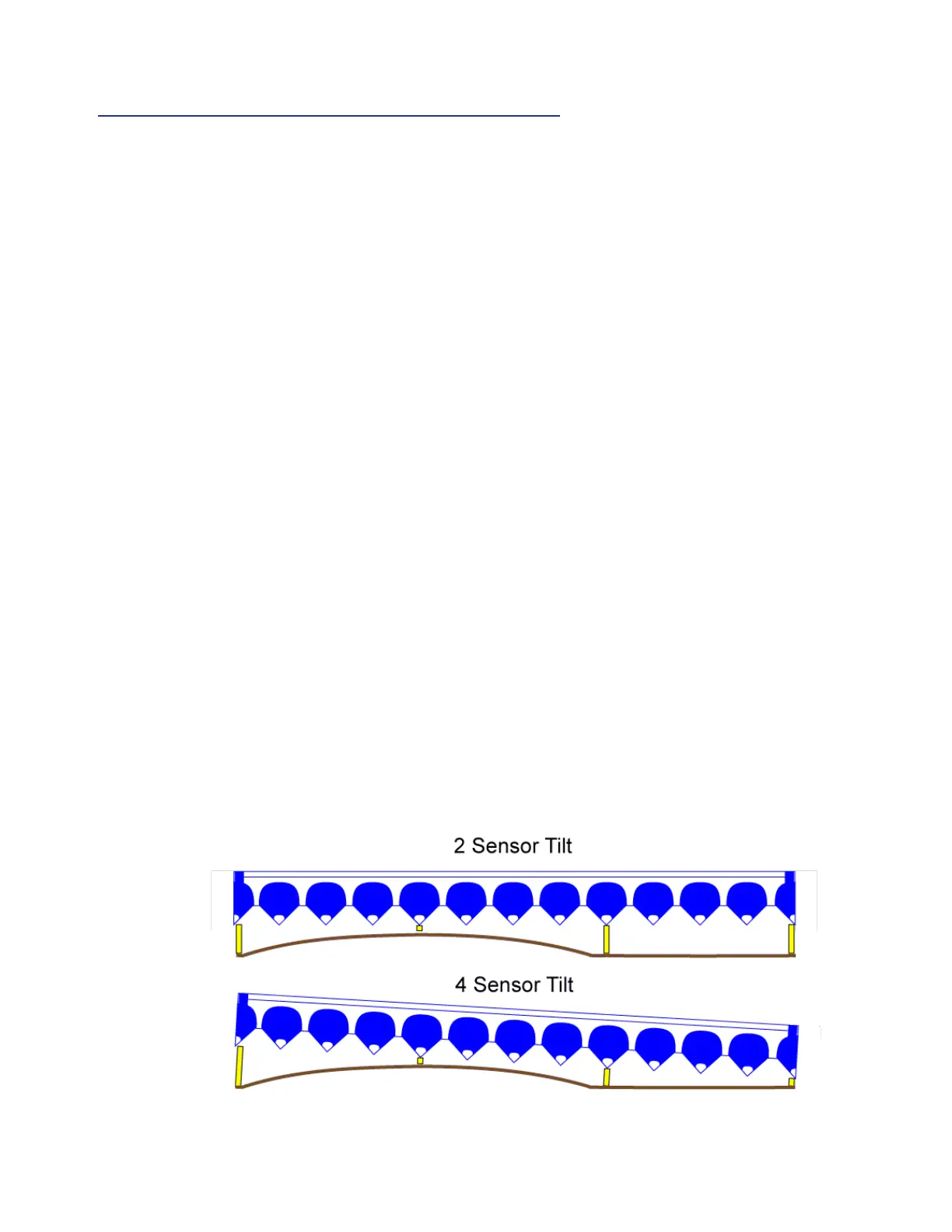

Headsight offers two algorithm choices for controlling lateral tilt. The choice of tilt algorithm is only
available for 4 and 5 sensor systems. To change this setting go to >>Setup>>Tilt Options in the Insight
menu.
Use 2 sensor tilt (default setting) when harvesting:
• Across terraces
• Standard conditions
Use 4 sensor tilt when harvesting:
• Parallel to terraces
• Parallel to ditches
• With irrigation tracks
Outer 2 sensor tilt (default setting)
• Outer sensor on each side controls lateral tilt
• Keeps the outer two sensors the same distance from the ground
• All sensors control height
• Any sensor can cause the header to raise, all need to agree to lower the header
• Keeps the header’s highest point closer to the ground but header may be higher on average
Outer 4 sensor tilt
• Outer TWO sensors on EACH side control lateral tilt
• Keeps the closest of each outer pair of sensors the same distance from the ground
• All sensors control height
• Any 1 can raise, all need to agree to lower
• Keeps the header closer to the ground on average but may have one end higher
