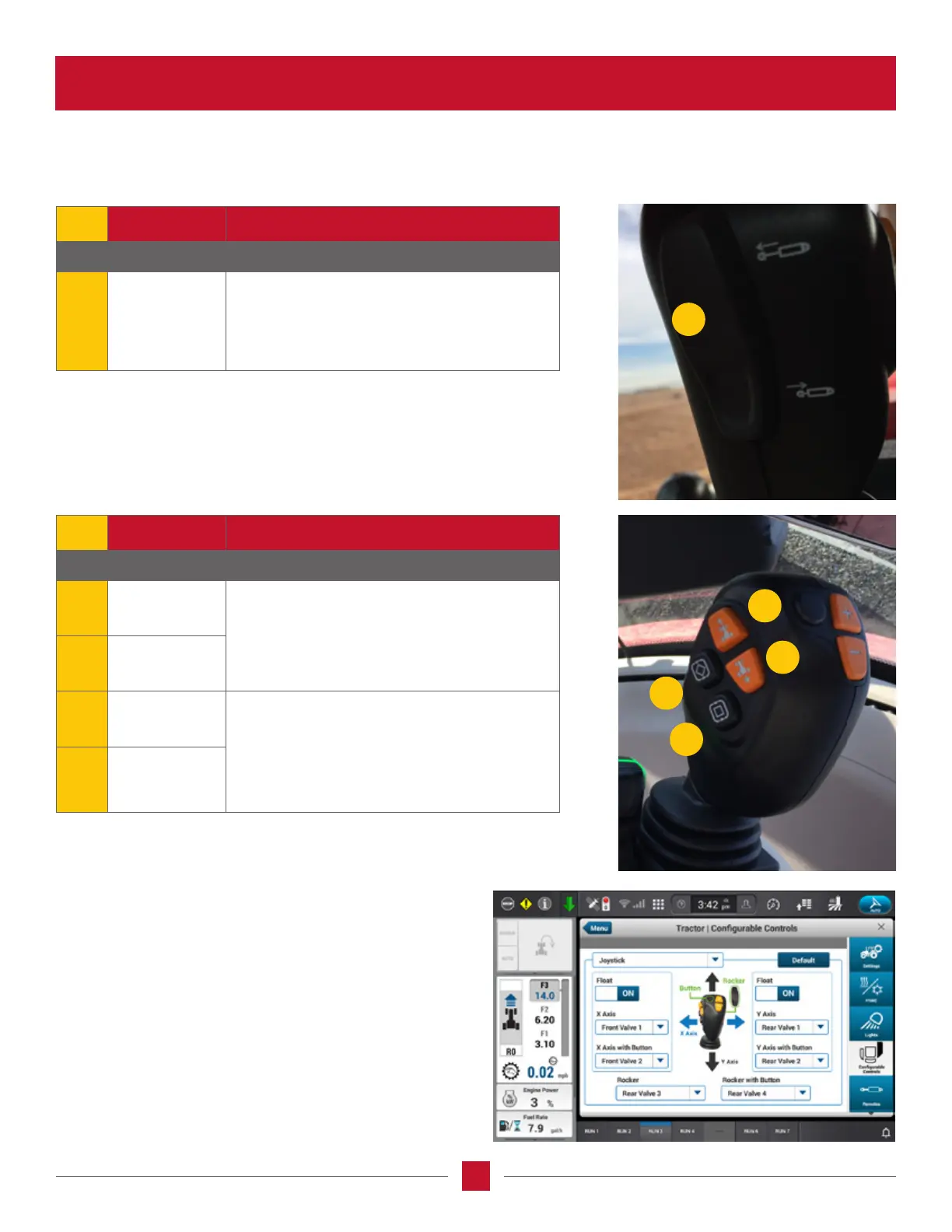

The joystick has other tractor functions which can be controlled on the joystick in addition to the normal loader functions.
The joystick section in the AFS Pro 1200 display is where
the joystick can be programmed to the front or the rear
remotes on the “X or Y” axis. The assignment of the
remotes is based on operator preference.
NOTE: If the rear remotes are to be used with the joystick,
the operator can assign up to four of the rear remotes to
the joystick. The armrest remote levers will not be active
until they are re-assigned back.
REF NAME FUNCTION
FRONT OF JOYSTICK
4
Black Rocker
Switch
The black rocker switch – is used for the
movement of the grapple on the electro-
hydraulic front (EHF) 3 or control the electro-
hydraulic rear (EHR) 3 when assigned.
REF NAME FUNCTION
LEFT SIDE OF JOYSTICK
5
Shuttle
Forward
The operator can shuttle the tractor forward or
shuttle in reverse on the joystick handle. This
is very handy when in a loader application.
6
Shuttle
Reverse
7
Programmable
Buttons #1
2 programmable buttons of the left side of
the handle. When either of the programmable
buttons are pushed the operator will be taken
to the AFS Pro 1200 programing screen where
the operator can assign the button a function.
8
Programmable
Buttons #2
4
5
6
8
7
