Case IH VISION PRO - Armrest Walkaround: Joystick; Optional Joystick

CASE IH PRO VISION OPERATING SYSTEM GUIDE
28

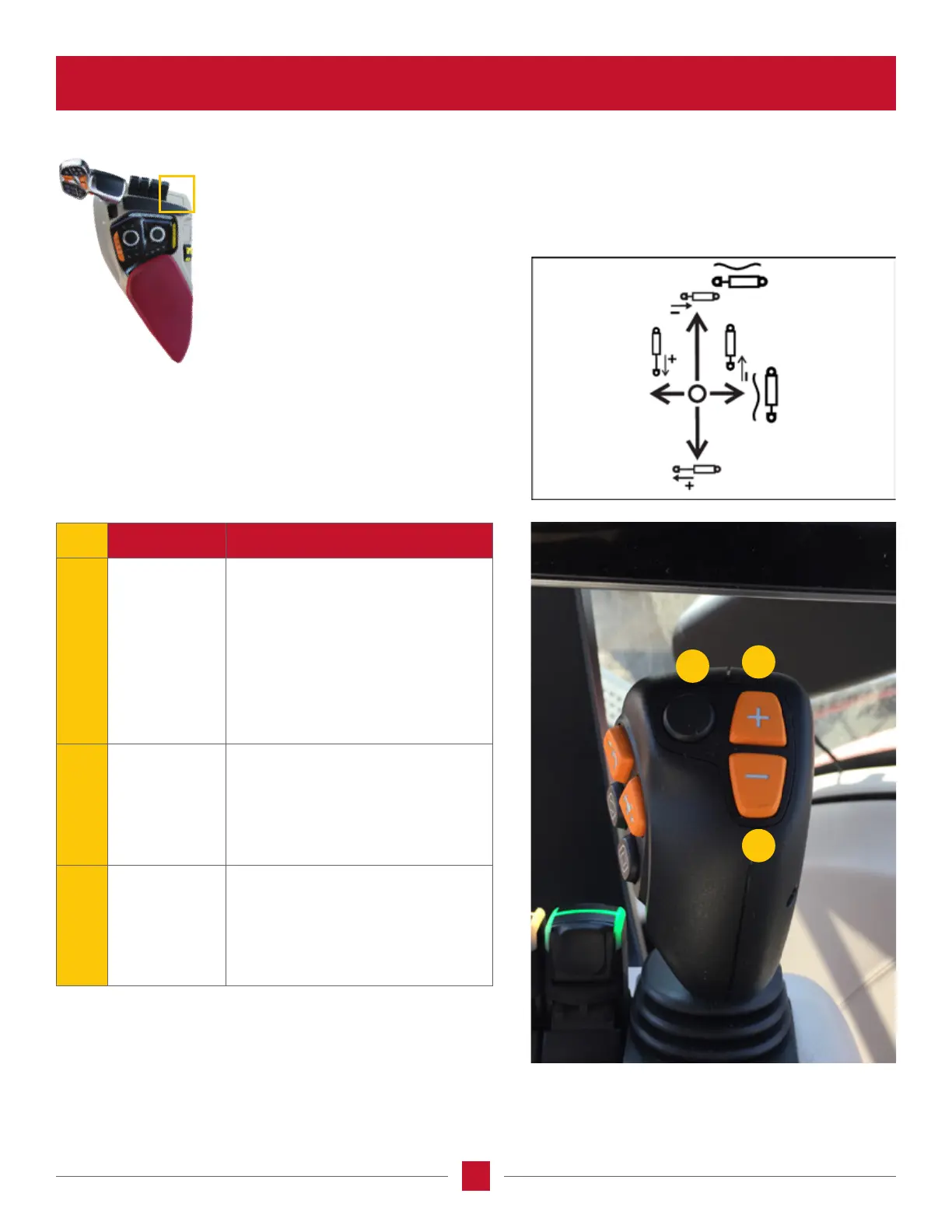

ARMREST WALKAROUND
OPTIONAL JOYSTICK
The AFS Connect Magnum tractor has
as an optional joystick in the armrest.
The joystick in a loader application
will allow the operator to:
• Raise the loader up
• Lower the loader
• Grapple function
• Ability to control the dumping and
curling of the bucket
REF NAME FUNCTION
1 Black Button
The black button on the top of the
handle is used in the movement of
the “X” or the “Y” axis to control the
additional remotes if selected.
NOTE: The “Y” axis is the movement
of the joystick frontward or rearward
and the “X” axis is the movement
left to right.
2
Plus Sign (+)
Button
The plus sign (+) allows the operator
to scroll up through the pre-set
speeds in the A-post, the same
way as using the rabbit on the
multifunction handle.
3
Minus Sign (-)
Button
The minus sign (-) allows the
operator to scroll down through the
per set speeds in the A-post, the
same way as using the turtle on the
multifunction handle.
1
2
3
