Case IH VISION PRO - AFS Pro 1200 Display: Tire Pressure; Tire Pressure Monitoring System (TPMS)

55
TIRE PRESSURE MONITORING SYSTEM (TPMS)
TPMS is optional on all AFS Connect
®
Magnum
™
tractors.
The system monitors the tire pressure in any combination
of up to 16 tractor and/or implement tires. A pressure
sensor is installed on each monitored tire which transmits
information to the TPMS control module. 16 sensors are
provided with this option.
To enable tire pressure monitoring, a sensor must be
installed on all tires being monitored, and the operator
must identify the ideal pressure for each of the tires.

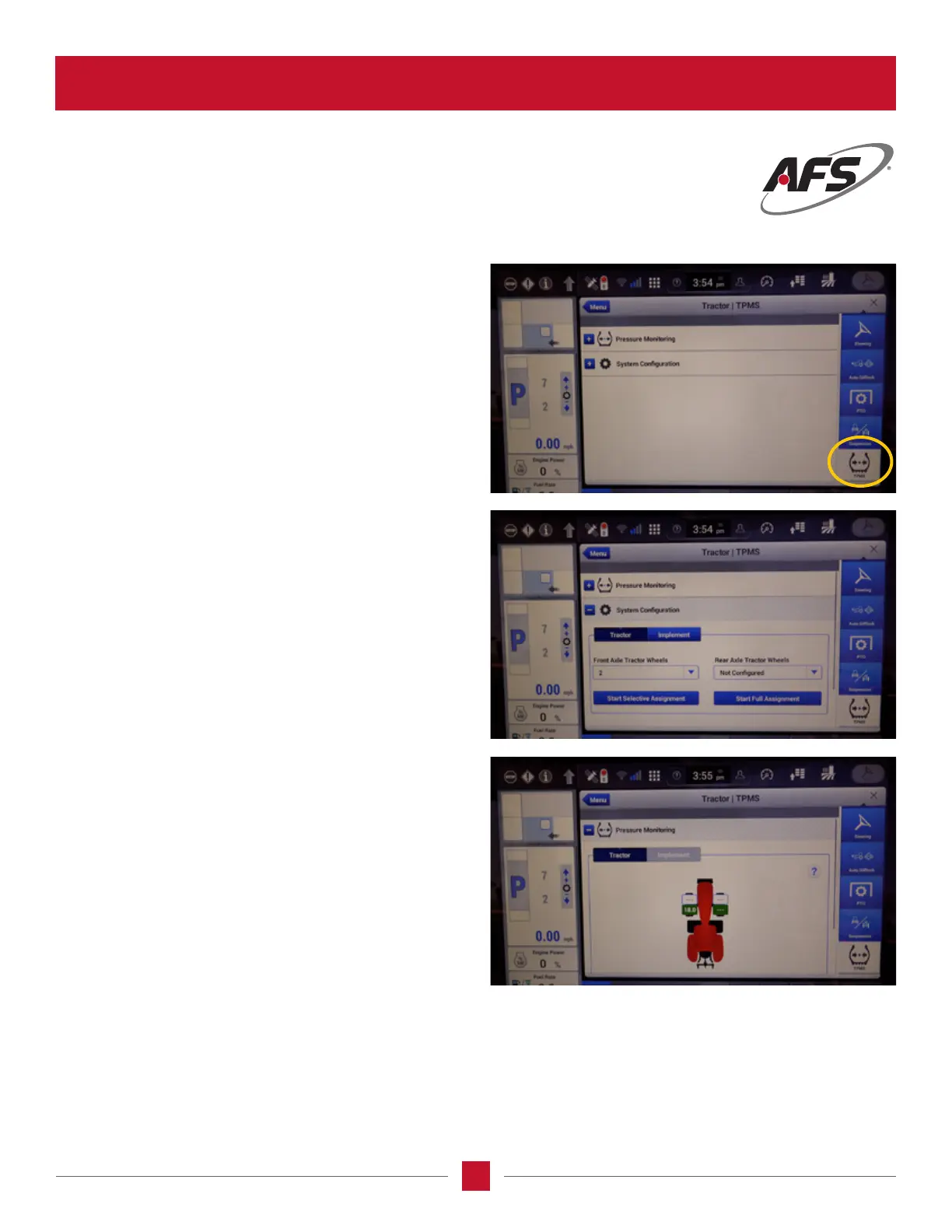

To display TPMS screen, press the TPMS Wizard on
the right side bar.
Pressure Monitoring
Two values are displayed for each assigned tire:
• The upper value shows the ideal or desired pressure
for the tire.
• The lower value shows actual sensed pressure of the tire.
Pressure measurements are in PSI or bar depending on the
unit of measurement selected.
The actual sensed values are color-coded:
• Green represents minimal difference between the ideal
and actual values, that is, less than 2.9 psi (0.2 bar).
• Yellow represents a difference of 2.9-5.8 psi (0.2-0.4 bar)
between the ideal and actual values.
• Red indicates represents a difference greater than
5.8 psi (0.4 bar) between the ideal and actual values.
Adjust tire pressure where required.
