5-TRANSPORTOPERATIONS
CX130Cwithblade
SelecttheHworkmode.

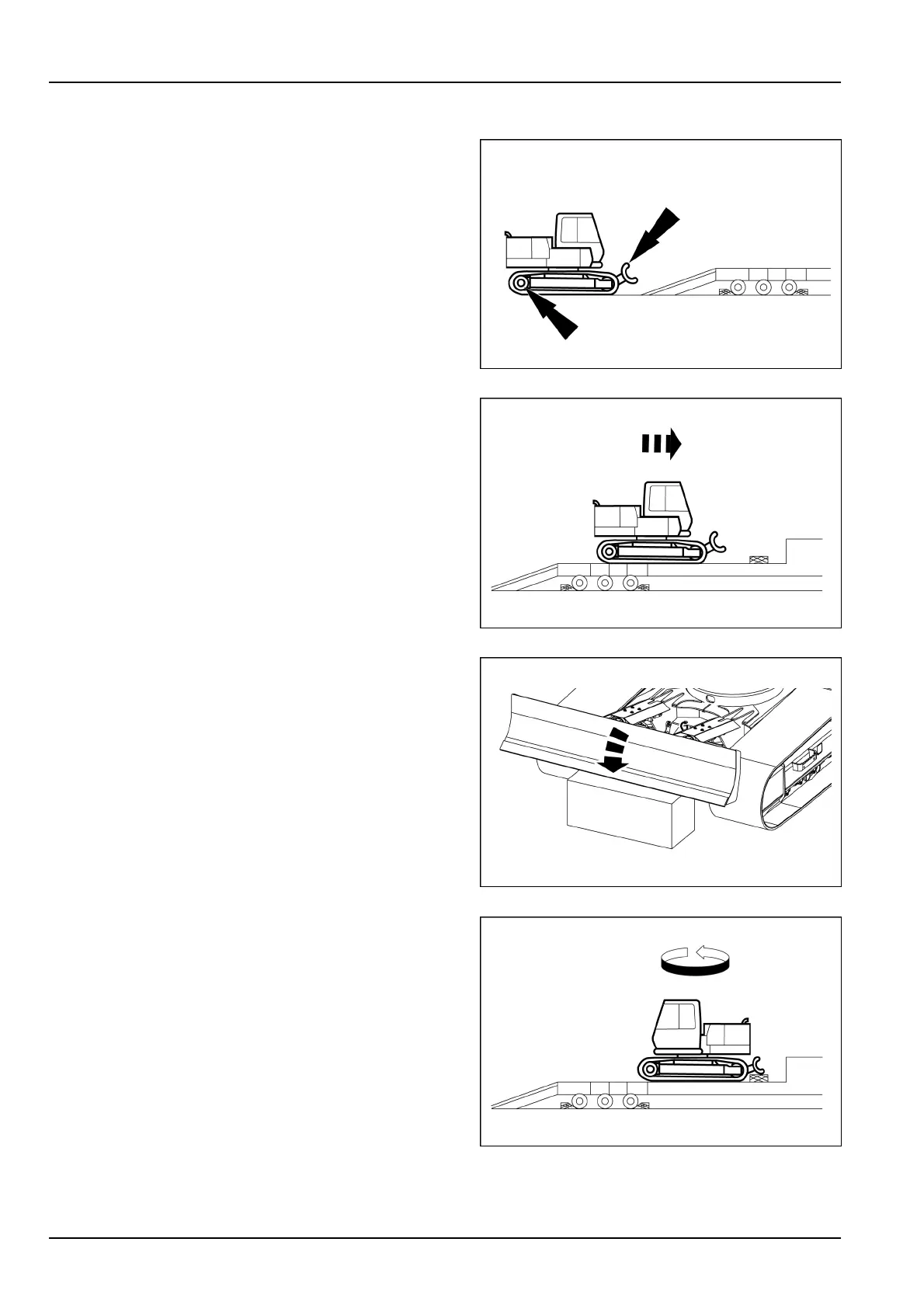

Alignthemachinetothetrailer,soasthebladefacesthe
trailerramps.Fullyraisetheblade.
NOTICE:Startingfromthisposition,thetravelcontrol
leversmustbepushedforwardtomoveontherampsand
onthetrailerbed.Conrmthetravelcontroldirections
beforestartmovingontotheramps.
SMIL20CEX0024AA12
Slowlyclimbthetrailerramps.Slowlytravelonthetrailer
bedtoreachtherestingposition.
SMIL20CEX0031AA13
Afterreachingtherestingposition,lowerthebladeonthe
supportingblock.
Makesurethatthereisenoughspacebetweentheblock
andthetrackstoroutethetie-downchains.
SMIL19CEX2664AA14
Slowlyturntheupperstructure180°.
SMIL20CEX0028AB15
5-6
