Casio QT-6100 Service Manual
5
of 1
of 1 rating
139 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
— 1
1
—
13.

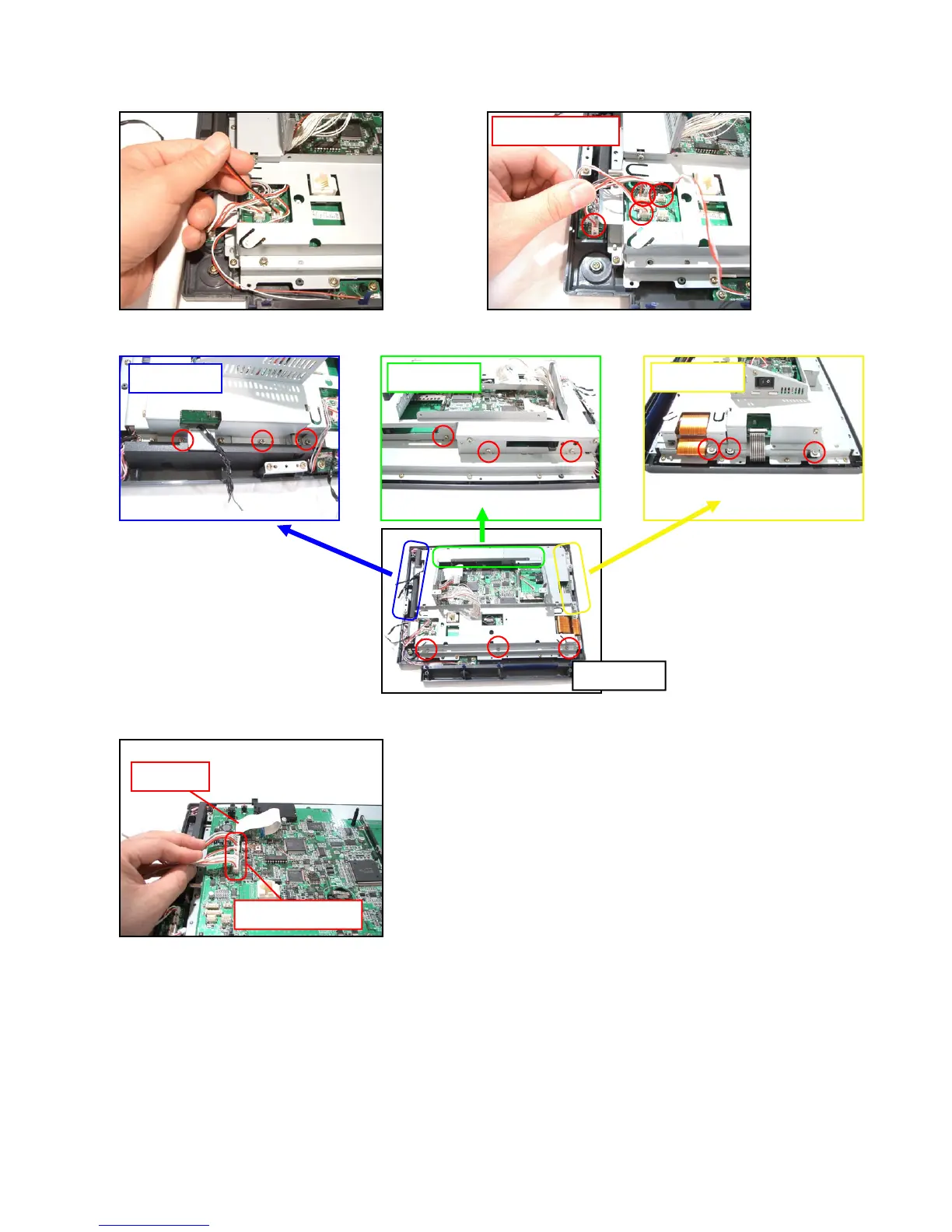

Remove the connector for the battery and the battery
.
15.
Remove four connectors.
14.
Remove twelve screws and the metal bracket.
Connectors
×
4
FPC
15.
Remove three connectors and one FPC.
Screw
×
3
Screw
×
3
Screw
×
3
Screw
×
3
Connectors
×
3
12
14
Table of Contents
Table of Contents
2
Specifications
3
I/O Ports
4
Drawer
5
Option List
5
Duration of Life
6
Installing Precautions
6
Machine Initialization
7
How to Initialize the Terminal
8
How to Flag Clear the Terminal (or INIT2)
9
How to Load IPL (Initial Program Loading)
9
System Initialization
9
IPL Operation
10
Disassembly
11
QT-6060D Disassembly
15
Assembly
17
QT-6060D Assembly
21
Option Installation
23
To Install the I-Button
23
To Install the MCR
24
Remote Printer/Slip Printer
26
To Install the Drawer
26
In Line / on Line
27
Inline Interface
27
Online Interface
28
Diagnostic Operation
29
Notes for the DIAG
29
To Start the Diagnostic Program
29
DIAG Command Input System
30
Status Display
30
3 RAM WRITE/READ Test
31
Check Item
31
Batch Test 1/2
32
Operation of each Test
32
RAM Read Only Test
33
RAM Write/Read Test
33
Flash Check Sum Test
34
Flash Clear Write/Read Test
34
CF-Card Read Only Test
35
CF-Card Write/Read Test
35
CF-Card Clear Test
36
CF-Card Clear Write/Read Test
36
LCD Test
37
LCD Backlight off Test
38
LCD Calibration Test
38
Remote Cust DISP Test
39
External Printer Print Test
40
RS232C PORT Test
41
RS232C PORT Batch Test
42
Ethernet Test
43
MAC (Media Access Control) Address SET
44
Drawer Open Test
45
Time Setting / Time Display
45
Buzzer Test
46
OBR Test
46
MCR Test
47
Charging Test
48
Block Diagram
49
Circuit Explanation
49
LSI Block Diagram
50
Power Supply Circuit
51
Reset Circuit
51
Drawer I/F Circuit
52
Cpu (Ic26: Sh7751)
53
Pin Assignment
53
Block Diagram
54
Pin Function
55
G/A (IC14: Upd65945Gj-093-JEU)
60
Sdram (Ic12: Hy5V52Alfp-H-C)
61
Display Controller - Pin Assignment
62
Display Controller - Pin Function
63
Ethernet Controller Pin Assignment
67
Error Code List
68
Error Messages
68
Operation Prompt
73
System Error Code
74
OS Fatal Error
76
CPU Exceptional Error
77
Booster Error
79
IC Data
80
Main PCB
80
Main PCB View
92
PCB Layout
92
Interface PCB View
94
Circuit Diagram
95
Parts List
112
Exploded View
113
Main PCB Block Parts List
114
Front Case Block Parts List
117
LCD Block Parts List
117
Power Supply PCB Block Parts List
118
Rear Case Block Parts List
118
Connector Pcb Block
119
LED PCB Block Parts List
119
Other
119
Exploded View - QT-6060D
120
Display Pcb Block
121
QT-6060D Parts List
121
Display Block
122
Stand Block
122
Drawer (Dl-2425)
123
Drawer Exploded View
123
Drawer Parts List
124
Drawer (Dl-2525)
125
Drawer (Dl-2785)
127
Drawer (Dl-2786)
129
Drawer (Dl-2920)
131
Drawer (Dl-2921)
133
Drawer (Dl-3616)
135
Drawer (Dl-3617)
137
