Casio TE-2200 Dealer's Manual

15
IPL
TE-2200/2400 Dealer's Manual
IPL (Initial program loading)
IPL should be made before initializing when the application program has been modified.

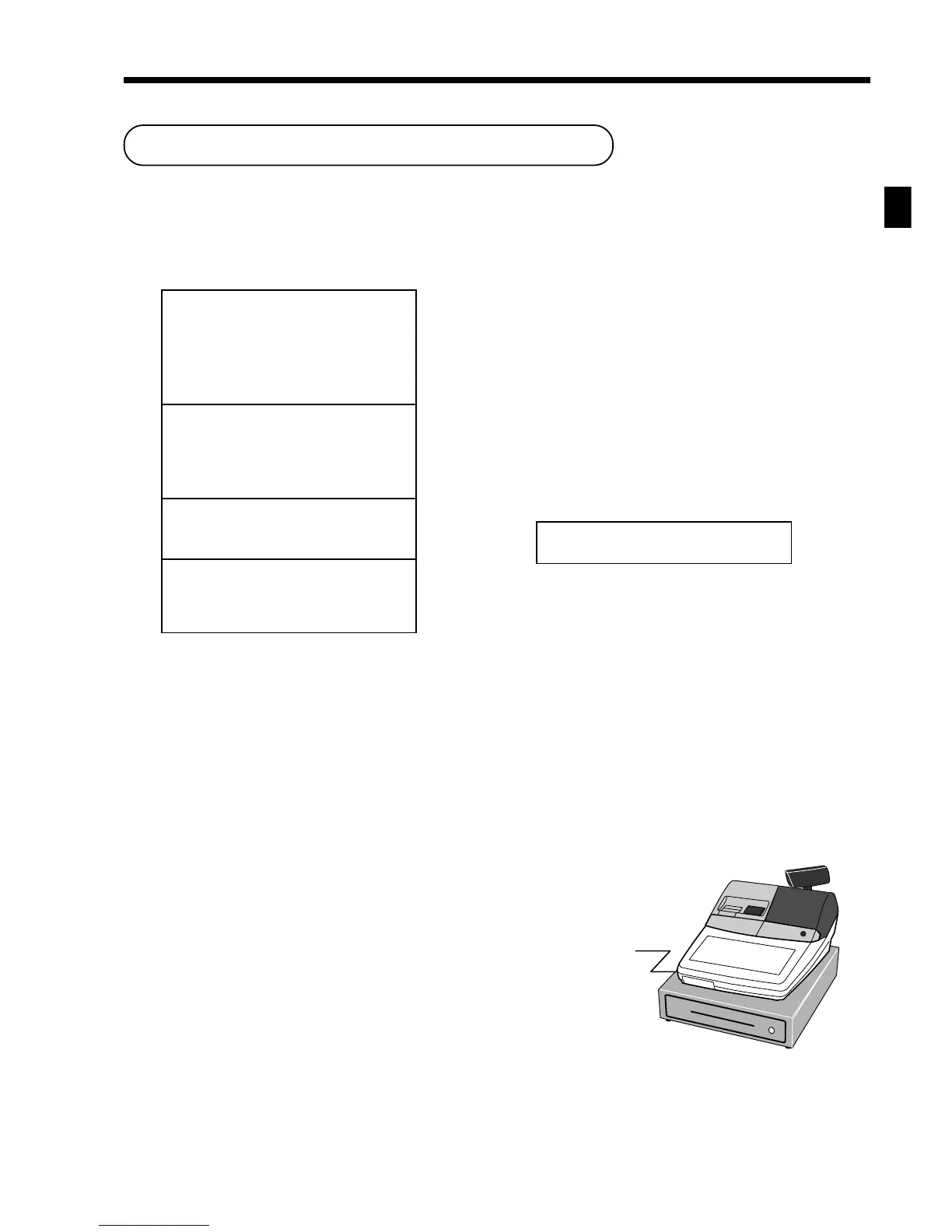

Memory map of the terminal
The application programs are downloaded from PC (via COM port)/other terminal (via inline or COM port)/CF card to the
internal flash memory.
System configuration and procedure
Via COM1 port (to receive IPL data from PC)
Operation
1. Set the mode switch to OFF position.
2. While holding down the <JOURNAL FEED>, turn the mode switch to PGM position.
3. Release <JOURNAL FEED> after the register shows “INIT”.
4. Enter “44449999” and press <SUBTOTAL>.
5. Enter “0” (communication speed: 38400 bps) and press <SUBTOTAL>.
6. Start the IPL program of the PC.
CF card
backup data
program data
RAM
totalizer/counter,
work area
Flash memory
Application program
ROM
bios, program loader
some diagnosis
Application program
5
IPL
COM1 port
PC

Casio TE-2200 Specifications

General

Types of payment	Cash
Supported paper width	58 mm
Display digits	10 digits
Second display	Yes
Second display type	LED
Display number of characters	16
Power source	AC
AC input voltage	120-230 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	277 mm
Weight	12000 g
