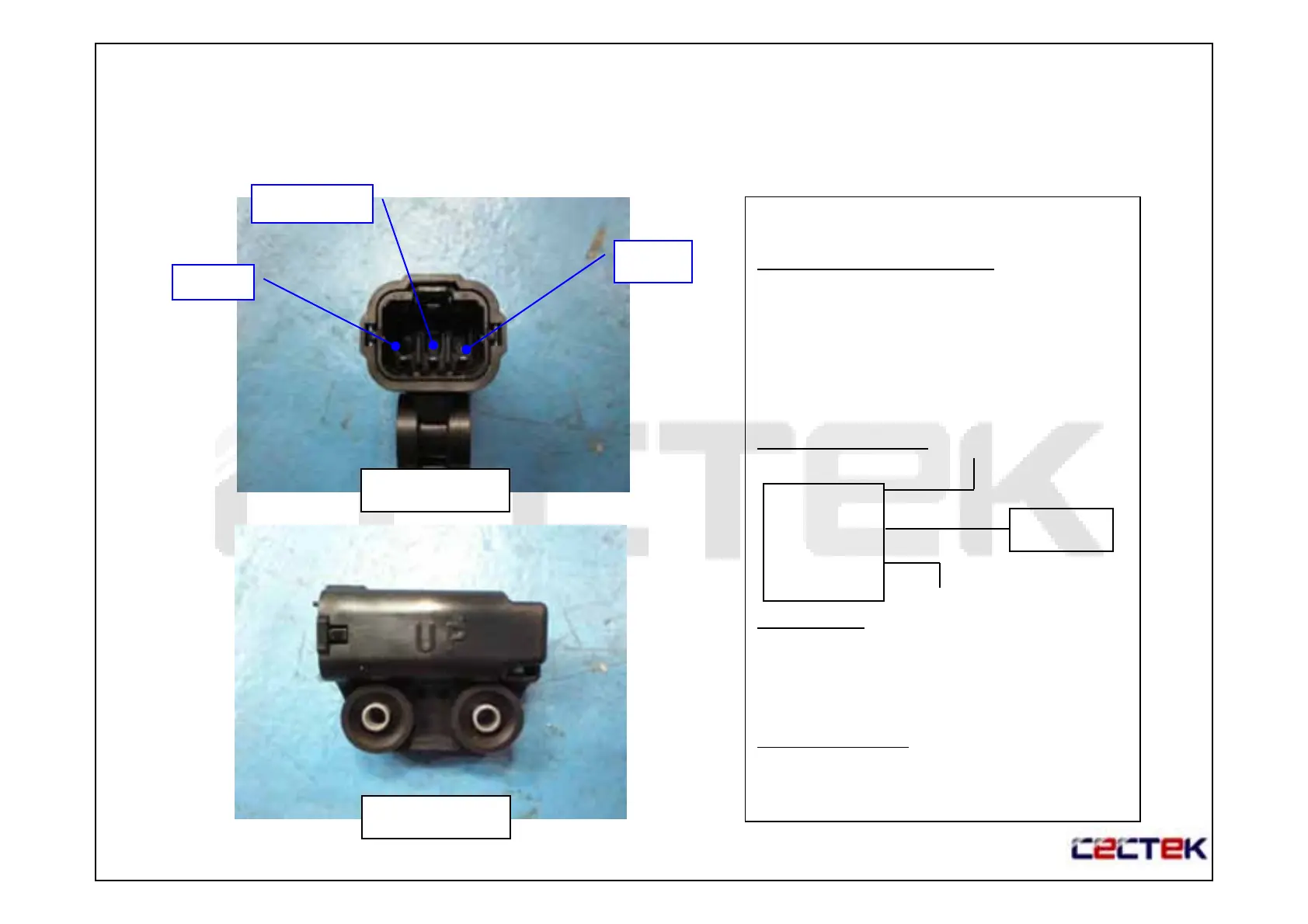

Rollover Sensor
(Fuel-cut Sensor)
Part Introduction
Sensor Characteristic
- Voltage: 12V (Vcc)
- Pitch Angle: 65±10°
- Roll Angle: -20~+20 °
- Temperature: -10~+60 ℃
Circuit Diagram
Assembly
- Bolt: M4 (2ea)
- Tighten Torque: 1.5~2.5Nm
Measurement
- Vcc–OUTPUT: 3.9 kΩ
Vcc
GND
OUTPUT
Top View
Left View
Rollove
r
Sensor
ECU
Vcc:
12V
GND
OUTPUT
Pin 11
+
-
15
