cectek Gladiator - Fuel Pump

Fuel Pump

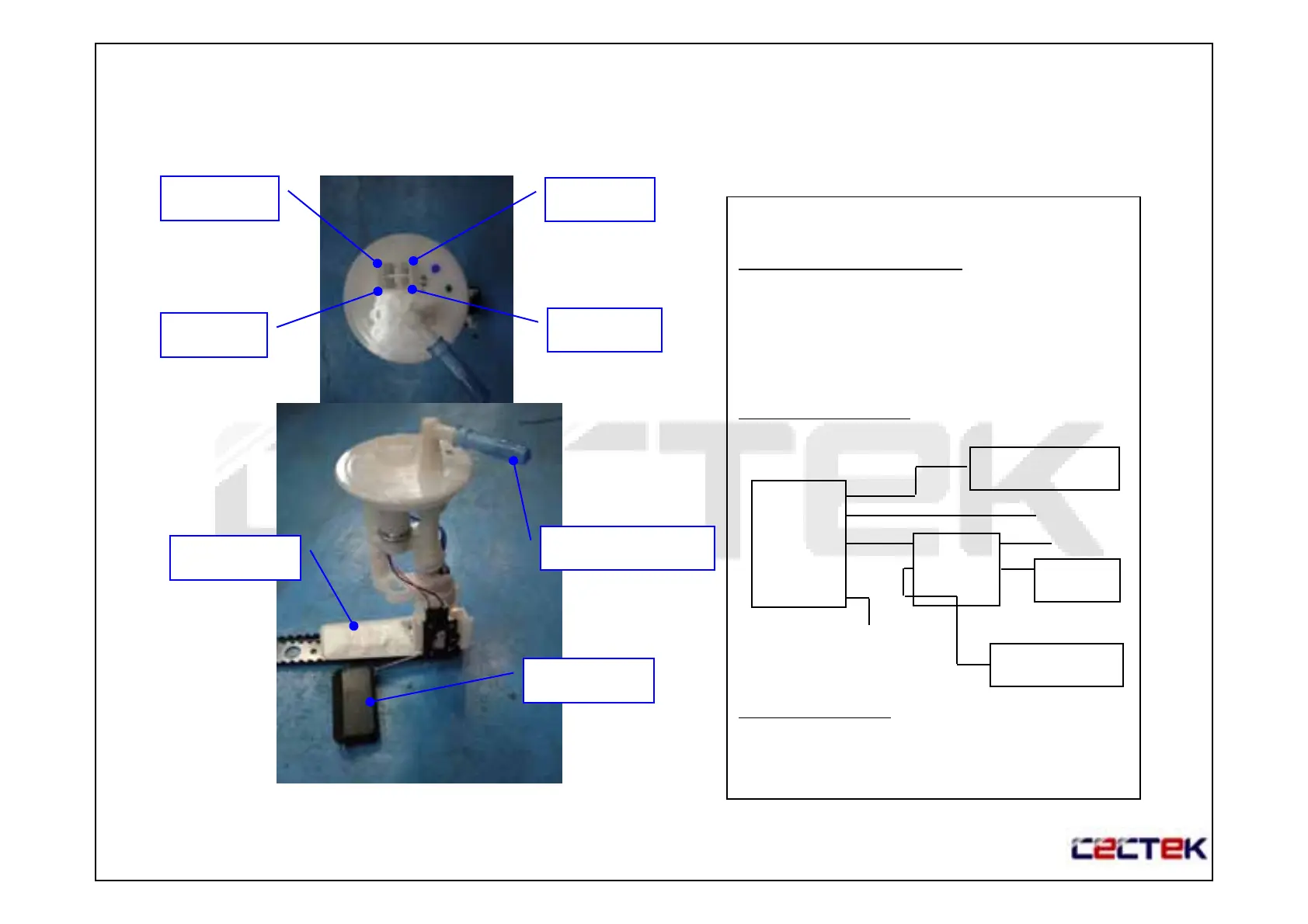

Part Introduction
Pump Characteristic
- Voltage: 12V (Pump -)
- Feed Fuel Pressure: 250±10 kpa
- Feed Fuel Rate: 30.6 L/hr Min.
Circuit Diagram
Measurement
- Full Stop : 4~10 Ω
- Empty Stop: 93~100 Ω
Fuel Level
Fuel Filter
Fuel Connector
Sensor -
Sensor +
Pump +
Pump -
Fuel
Pump
ECU
12V
GND
meter
Rela
y
GND
END S/W
Pump +
Pump -
Sensor +
Sensor -
Pin 1
meter Pin24
16
