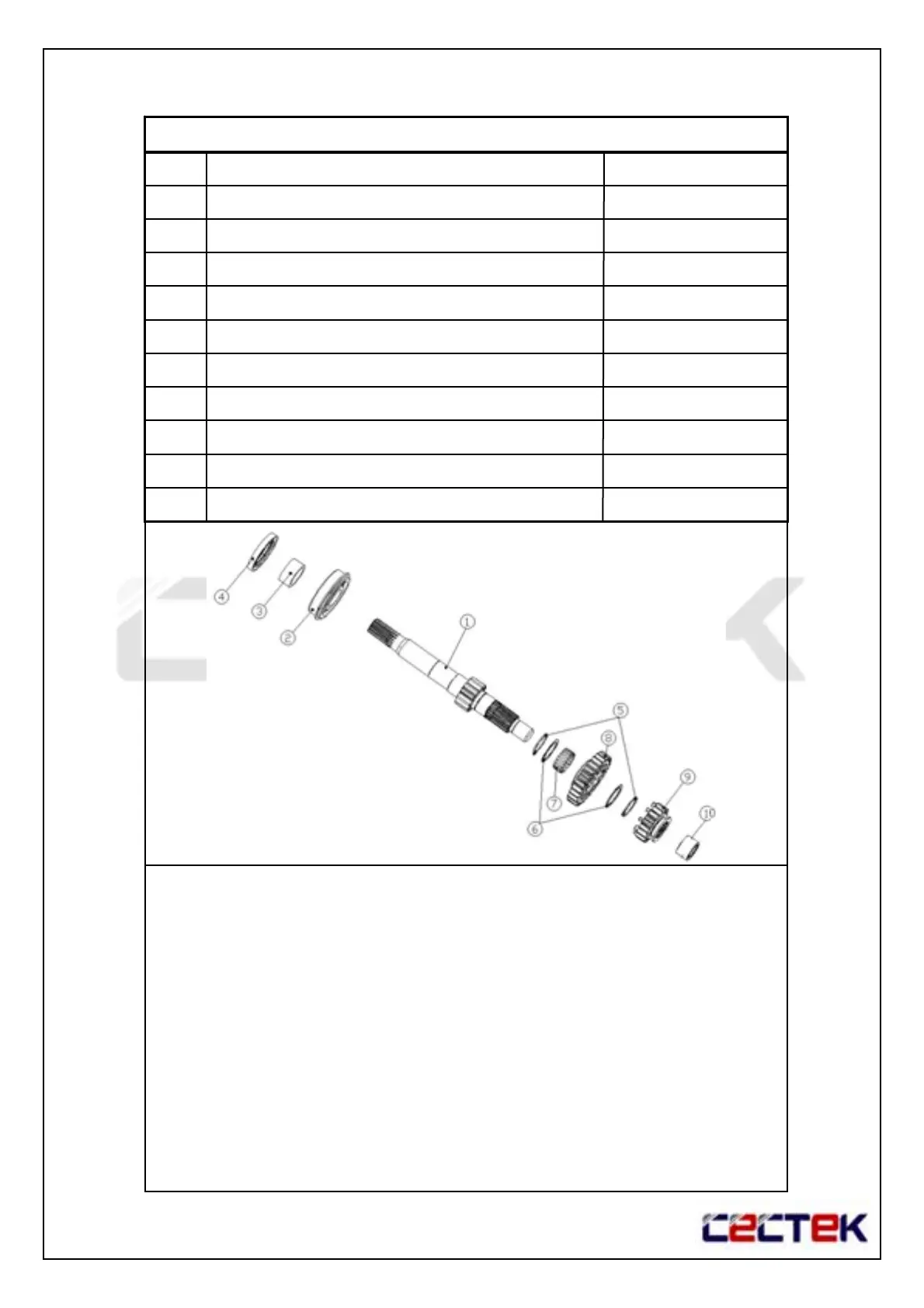

THE MAIN SHAFT ASSEMBLY
46030003HIGH SPEED DRIVE GEAR (27T)8.
46030030NEEDLE BEARING (CAGE TYPE)7.
46030010WASHER6.
RCS025RETAIN C-RING5.
40016004LIP SEAL4.
46010003SPACER3.
46030034BEARING2.
46030001MAIN SHFAT1.
PART NO.PART NAMENO.
46030028NEEDLE BEARING (OPEN TYPE)10.
46030004LOW SPEED DRIVE GEAR (18T)9.
Before install gear and bearing , please lubricate with 10W/40 oil
1.Install bearing (2) into main shaft (1) , be shall bearing of ring side
install to main shaft of gear side
2.Install spacer (3) into main shaft , then install seal (4) into spacer (3)
3.Install a C-ring (5) into main shaft of groove , then put a washer (6)
into main shaft
4.Install needle bearing (7) and high gear (8) into main shaft , be shall
install high gear of raised side into main shaft of gear side
5.Install a washer (6) into main shaft then install C-ring (5) into main
shaft of outside groove
6.Install low gear (9) into main shaft then install needle bearing (10)
into main shaft , be shall low gear of forl groove in the outside
49
