cectek Gladiator - The Balancer Assembly

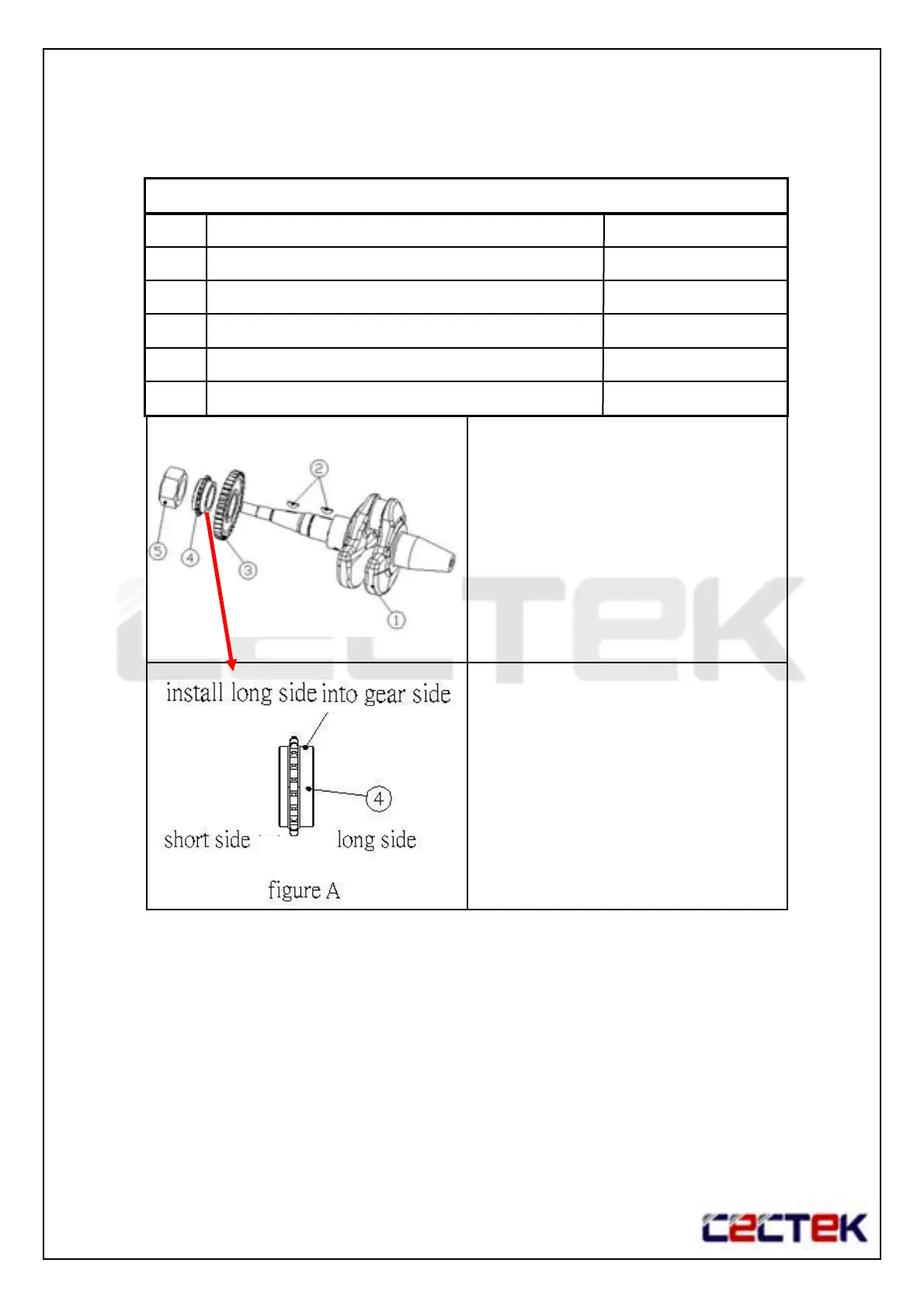

1.Install key (2) into crankshaft (1)
, keep the key parallel with
crankshafttaper
2.Install gear (3) into crankshaft
(1) , gear groove must be
alignment key of crankshaft
3.Install cam chain sprocket (4)
into crankshaft (1) , be shall
install long side into gear side
of crankshaft , reference to
figure A
4.Screw nut (5) to crankshaft (1) ,
tighten torque 250Nm
THE BALANCER ASSEMBLY
40110024NUT (M30)5.
41010004PCAM CHAIN SPROCKET4.
40120018GEAR (36T)3.
40110108KEY2.
40110023CRANKSHAFT1.
PART NO.PART NAMENO.
48
