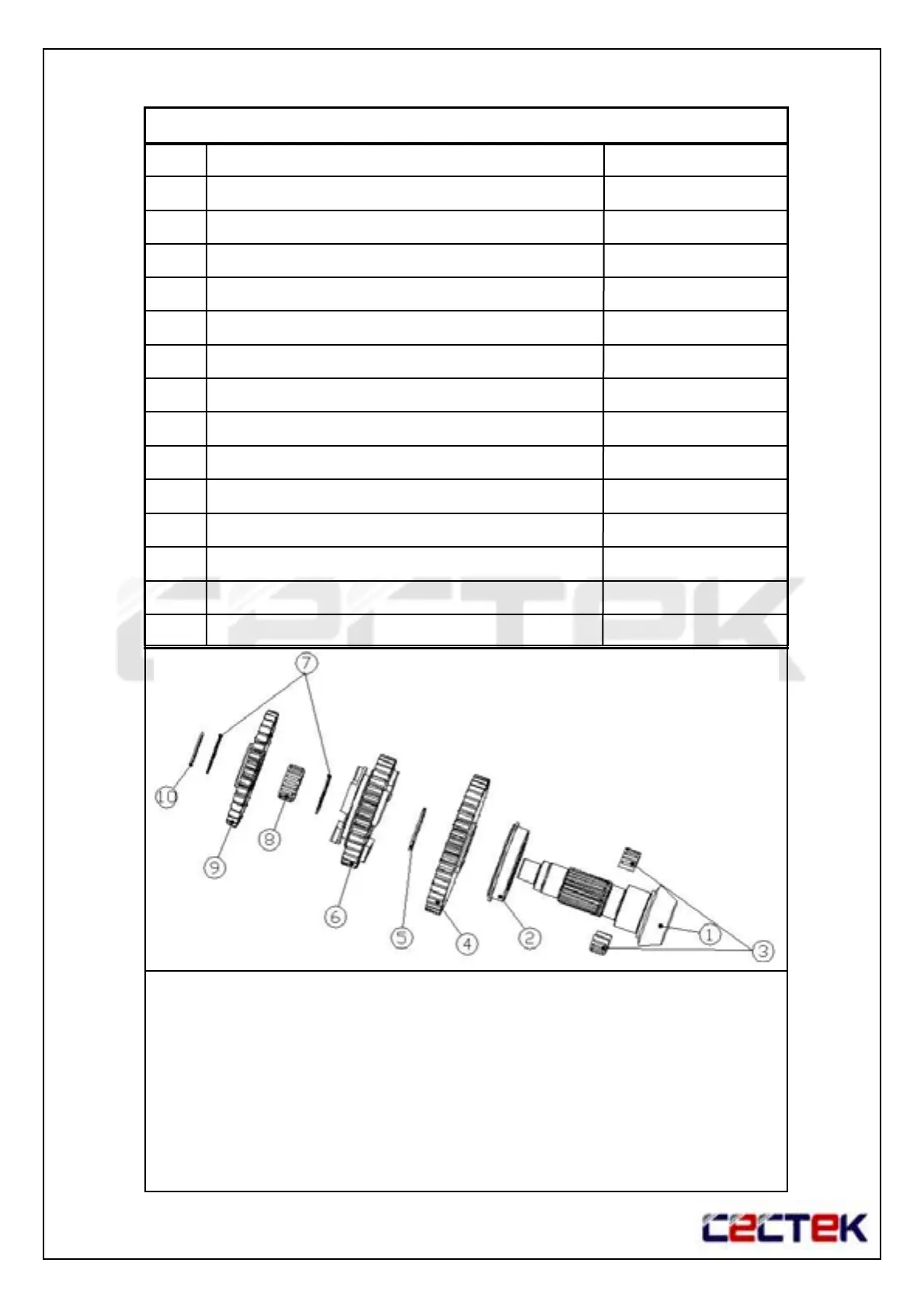

THE LAY SHAFT ASSEMBLY
46030030HNEEDLE BEARING (CAGE TYPE)8.
46030010WASHER7.
46030005HIGH SPEED DRIVEN GEAR (36T)6.
RCS030RETAIN C-RING5.
46030007LOW SPEED DRIVEN GEAR (45T)4.
46030031NEEDLE BEARING (HALF CAGE TYPE)3.
CRBNU1007NRCYLINDRICAL ROLLER BEARING2.
46030002LAY SHFAT1.
PART NO.PART NAMENO.
RCS025RETAIN C-RING10.
46030008REVERSE DRIVEN GEAR (34T)9.
Before install gear and bearing , please lubricate with 10W/40 oil
1.Install bearing (2) into lay shaft (1) , be shall install bearing of long
side into bevel gear side
2.Install needle bearing (3) into lay shaft , then install low gear (4) into
lay shaft , be shall install low gear (4) of plane into bevel gear side
3.Install retain C-ring (5) into lay shaft of groove
4.Install high gear (6) into lay shaft , be shall install high gear (6) of
fork groove side into another bevel gear side
46030029BEARING (DOUBLE ROW ANGULAR)12.
46030016-26ADJUSTING WASHER11.
SCF060200883FLAT HEAD SCREW14.
46030012WASHER13.
