cectek Gladiator - Ignition Coil

Ignition Coil
PBT Black +
PBT Geen -
Spark Side

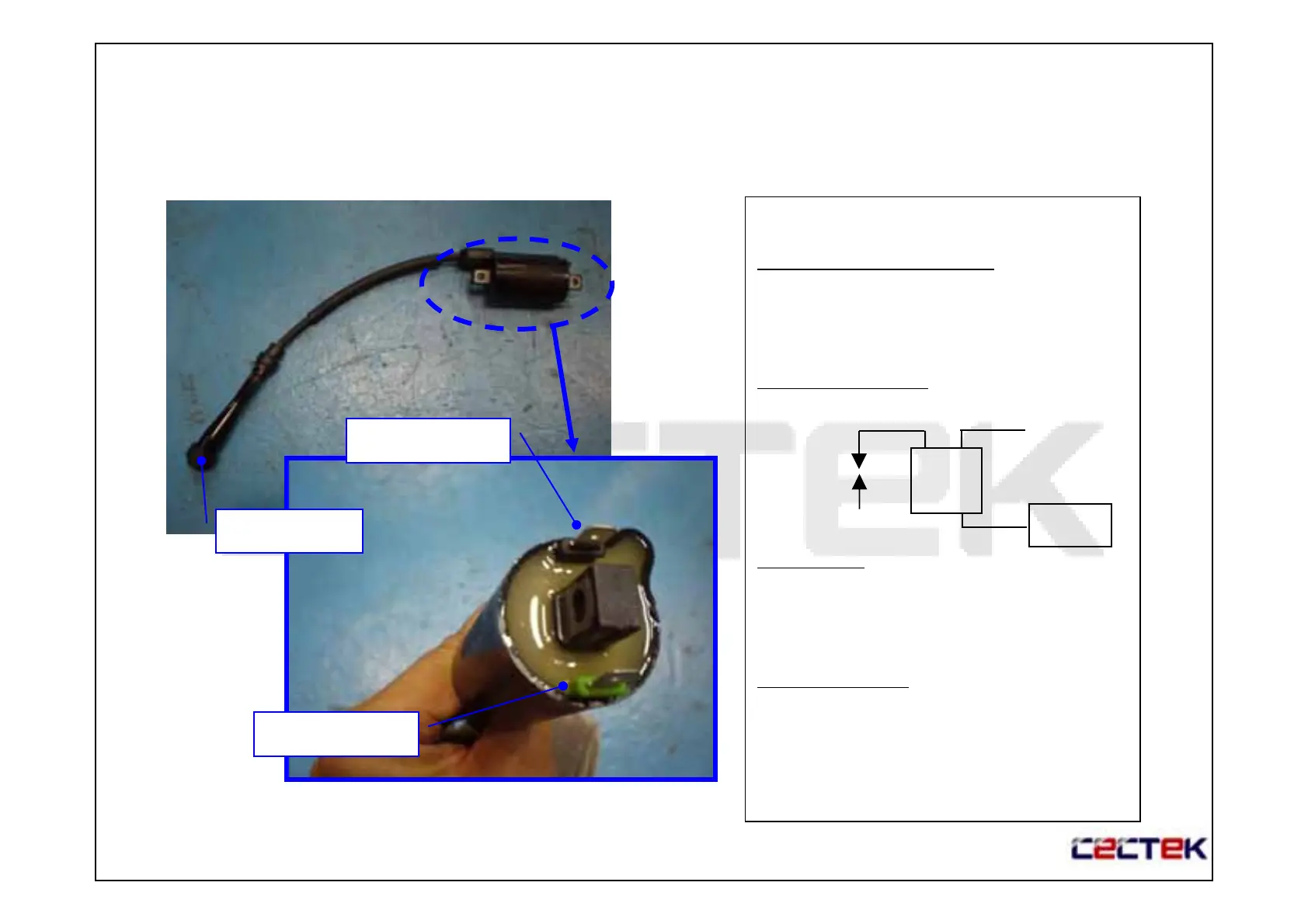

Part Introduction
Sensor Characteristic
- Voltage: 12V (Vcc)
- Temperature: -10~+60 ℃
Circuit Diagram
Assembly
- Bolt: M6 (2ea)
- Tighten Torque: 10±2Nm
Measurement
- Primary: 2.9 Ω±10%
- Secondary : 15 kΩ±10%
Coil
Primary
Secondary
ECU
Pin 27
12 V
PBT Black
+
PBT Black
-
Spark Side
GND
