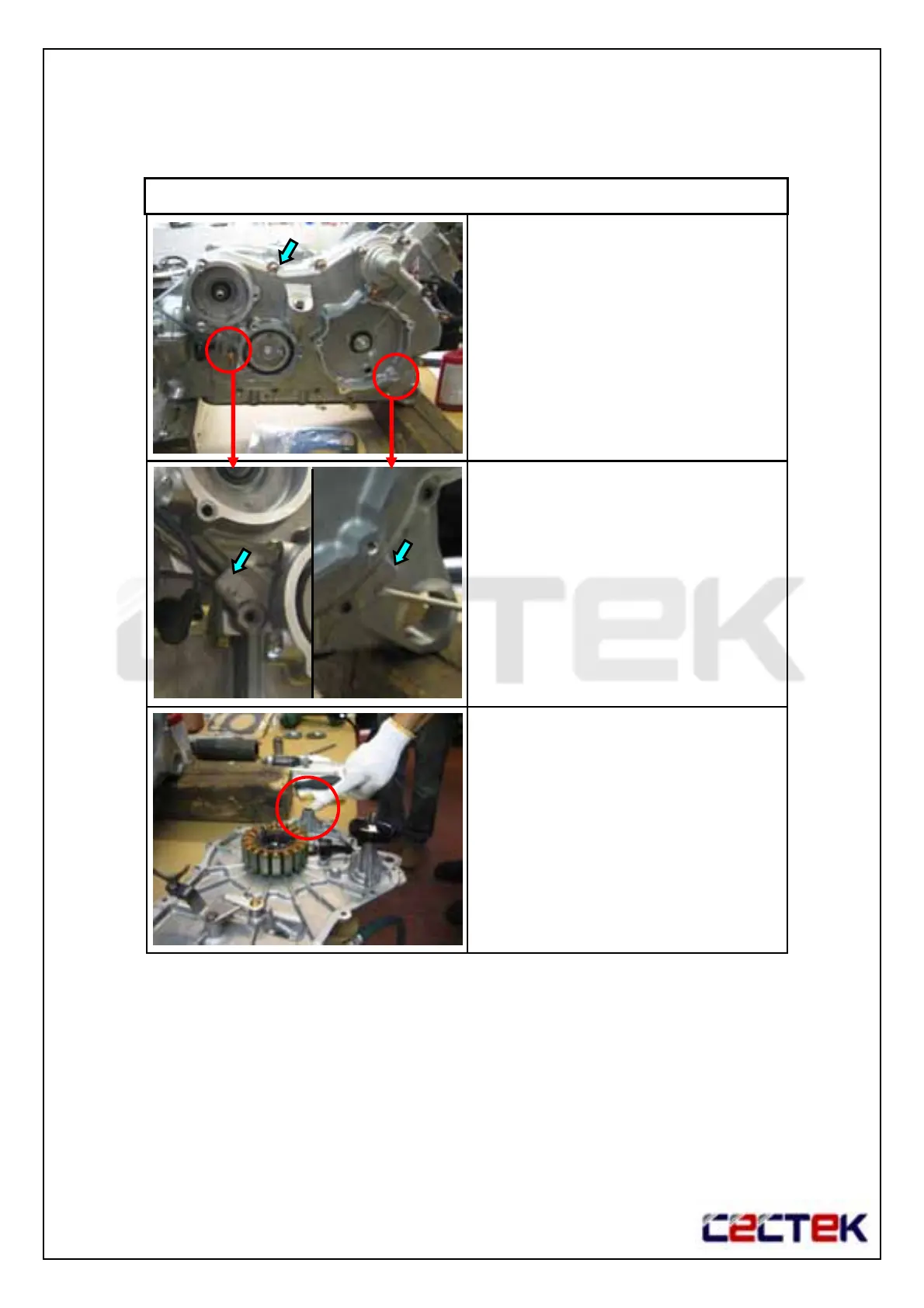

Loosen the accessory cover
bolt*11
Raise the accessory cover by
screwdriver from the prominence
of case
ACCESSORY COVER DISMANTLE
When remove the accessory
cover be care the spin nose
antithrust
spring and washer
