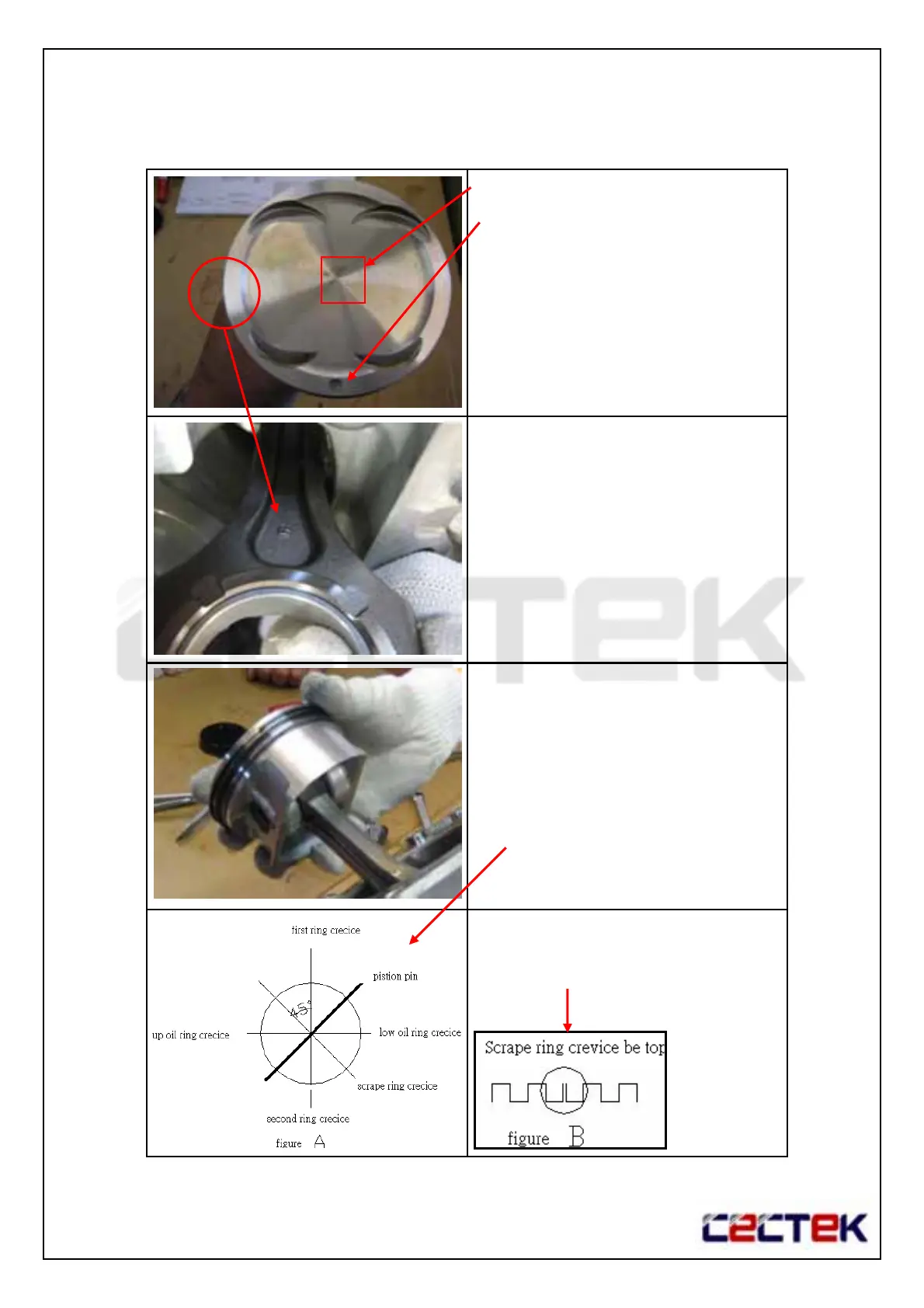

5.The piston size mark on top
( A or B )
6.Confirm： when you face the
piston , the piston (4,5)
exhaust mark is in the down
side
7.Confirm：the connecting rod (1)
right side mark R is same side
of piston
8.Install one clip (3) into the
piston clip groove firmly
9.Install pin (2) into pin groove
10.Install the clip (3) into the
other side groove to stop the
pin (2)
11.Then sequentially install parts
(8) , (7) , (6) , the crevice
position of each ring as figure
A shows
12.The opening of ring (8) of
spacer shall be upward as
figure B shows
