OPERATOR INSTALLATIONSECTION 7

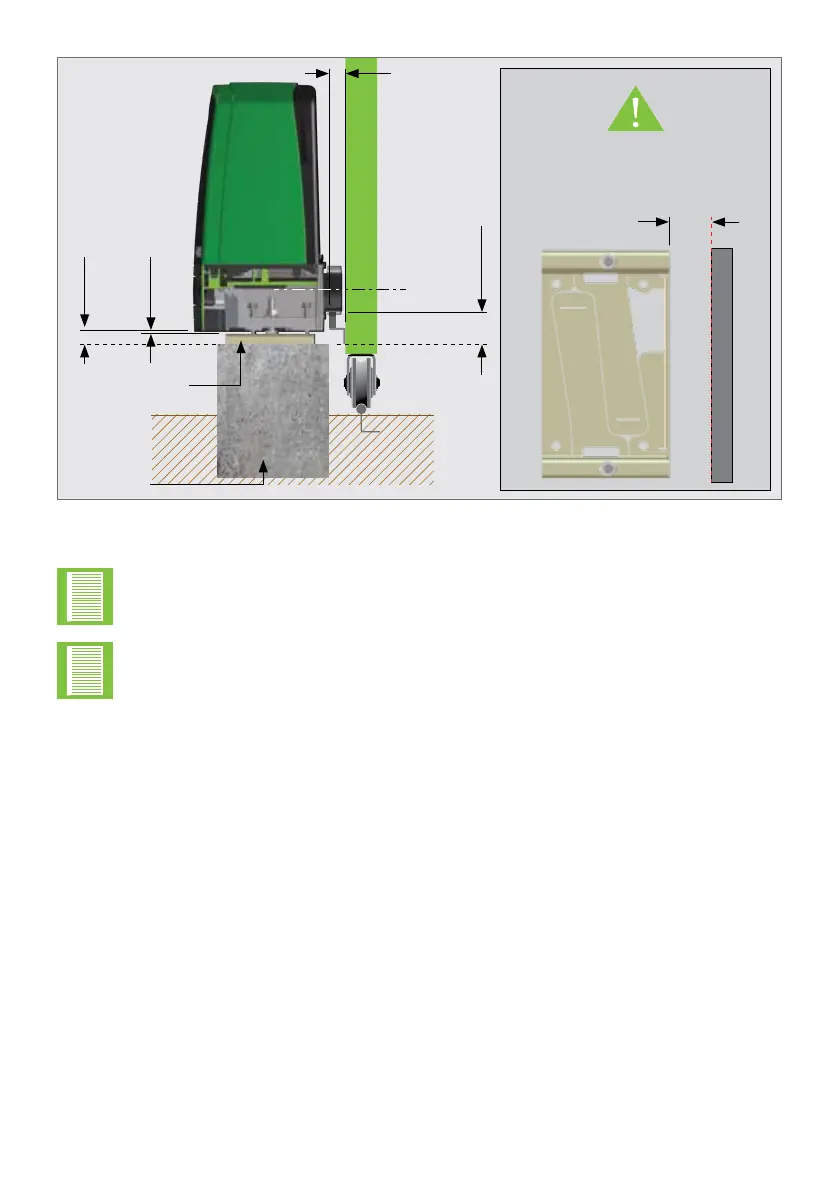

FIGURE 12. STEEL RACK BELOW PINION
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and top edge of the Rack Tooth
5mm
25mm
25mm
(Typical Steel
Rack Width)
51mm
1,2
Foundation Plate
Raised
Concrete
Foundation
(Recommended to allow
for adjustment)
Minimum space from edge
of Foundation Plate to reference
point of edge that protrudes
the furthest.
(Section 7.1.1.)
50mm
The principles of installation on a Steel Rack is to position it in the middle of the
output pinion with the operator fully forward on the slots.
The Pinion Guard needs to be rotated 180 degrees if the rack below the pinion
is desired for ONLY the D10 SMART and D20 SMART, and not the D10 Turbo
SMART.
