CONTROLLER FEATURES

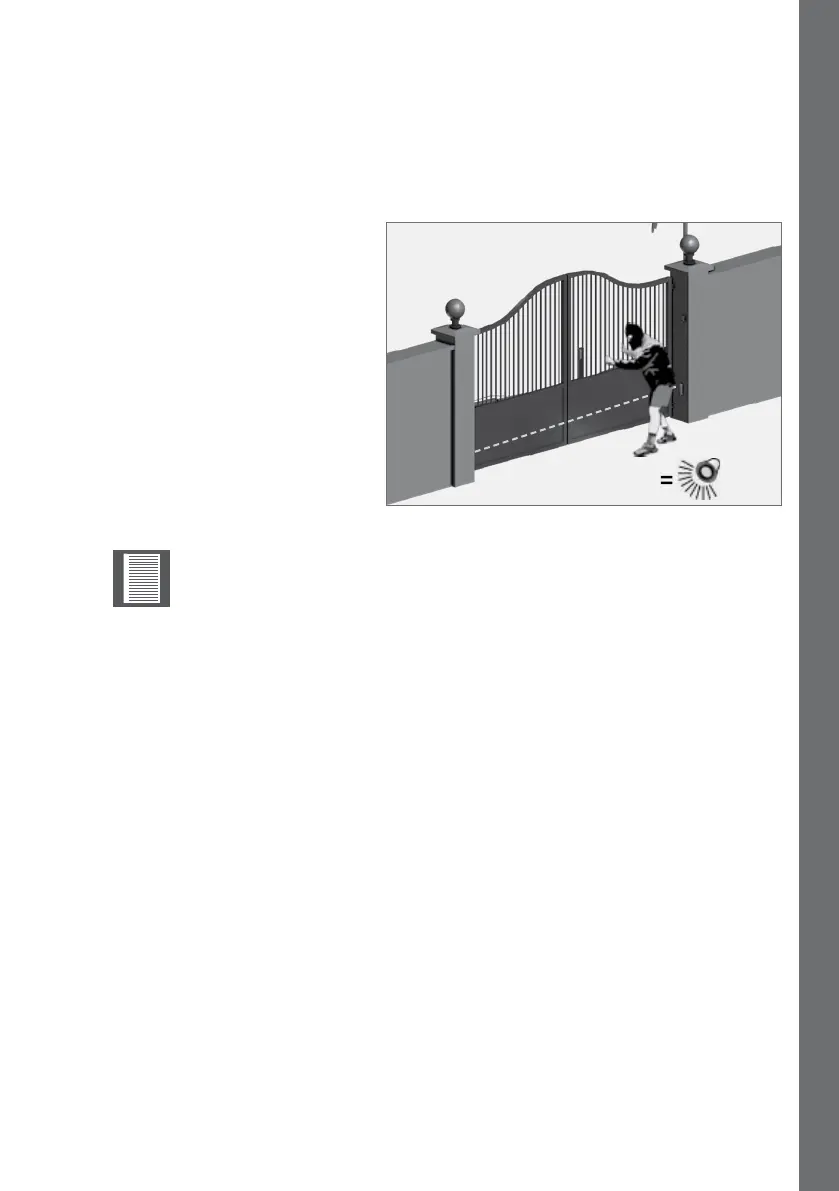

FIGURE 35
Alarm
Intruder breaks beam
while loitering at gate
25.5.4.2. IR Beam Broken Time
The time that the Beams must be interrupted before the ambush alarm is
activated.
25.5.4.3. Break-in Alarm
Activates an alarm if the
Closing Beam on the outside
of the property is interrupted
while the gates are closed.
The alarm remains activated
while the Beams are broken,
andforaxedperiodof30
seconds thereafter.
Ifthisbreak-inalarmisused,itisrecommendedthatTWOparallel
Closing Beams be used to reduce the chance of false triggering.
SECTION 25
25.5.4.4. Alarm output
Thesystemcanbeconguredtooperateoneofthefollowingoutputsprovidedon
the Controller:
• Status LED output (operate up to three LEDs in parallel or interface with
theCP78MULTI-LEDdrivercard)
• Sol (this is an open collector drive, maximum current draw 3A,
notfuse-protected)
• Safe Com (this is an open collector drive, maximum current draw 3A,
notfuse-protected)
• Pillar / Courtesy Light contact (potential-freenormally-opencontact,
fuse-protected-5A)
• Onboard buzzer-emitsacontinuoustone
