Centurion D10 - Product Identification

page 11
www.CentSys.com

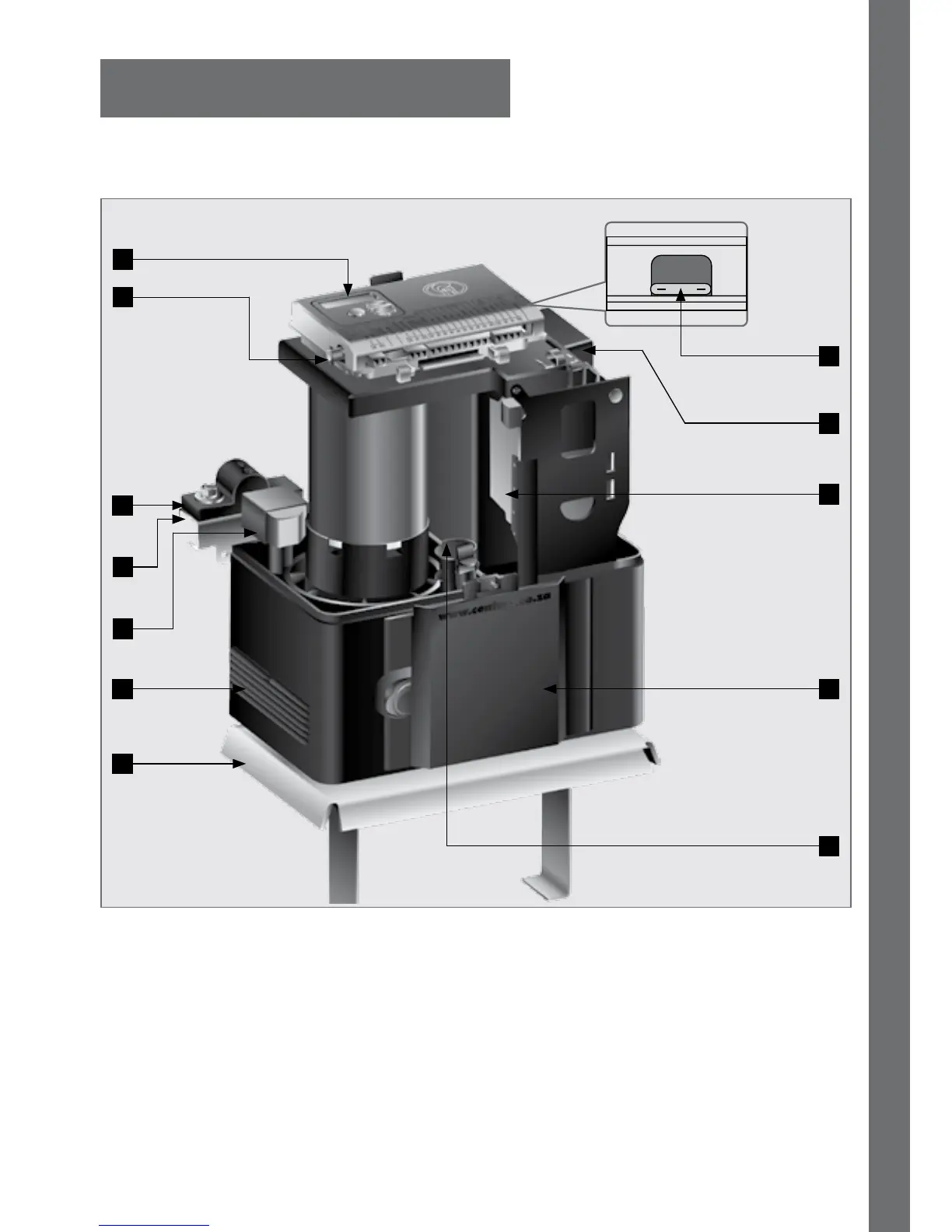

FIGURE 1. D5-EVO DOMESTIC GATE MOTOR
1. D5-Evo DOMESTIC controller
2. Courtesy light fuse (3A F/B)
3. Gate mounted origin Marker
4. Origin marker bracket
5. Origin sensor
6. Side covers
7. Foundation plate
8. Motor fuse (30A ATO)
9. 1 x 12V 7.2Ah battery
10. 1.8A 12V charger
11. Lockable Manual release access door
12. Encoder sensor (clips into support post)
1.1. D5-Evo DOMESTIC parts identication
