D10/ D10 TURBO MANUAL OVERRIDE
3. D10/ D10 Turbo Manual Override
3.1. Disengaging the
gearbox/drive
3.2. Manual release latching
If the gearbox must be left in manual mode for an extended period of time for whatever
reason, it is recommended that the manual release is latched, the handle raised back into
its normal position and locked, locking the cover in place at the same time. This prevents
access to the inside of the unit, which contains high voltages and prevents theft of any
components and provides full protection from the elements.
With the manual release handle pulled down, follow the process below to latch the
manual release.

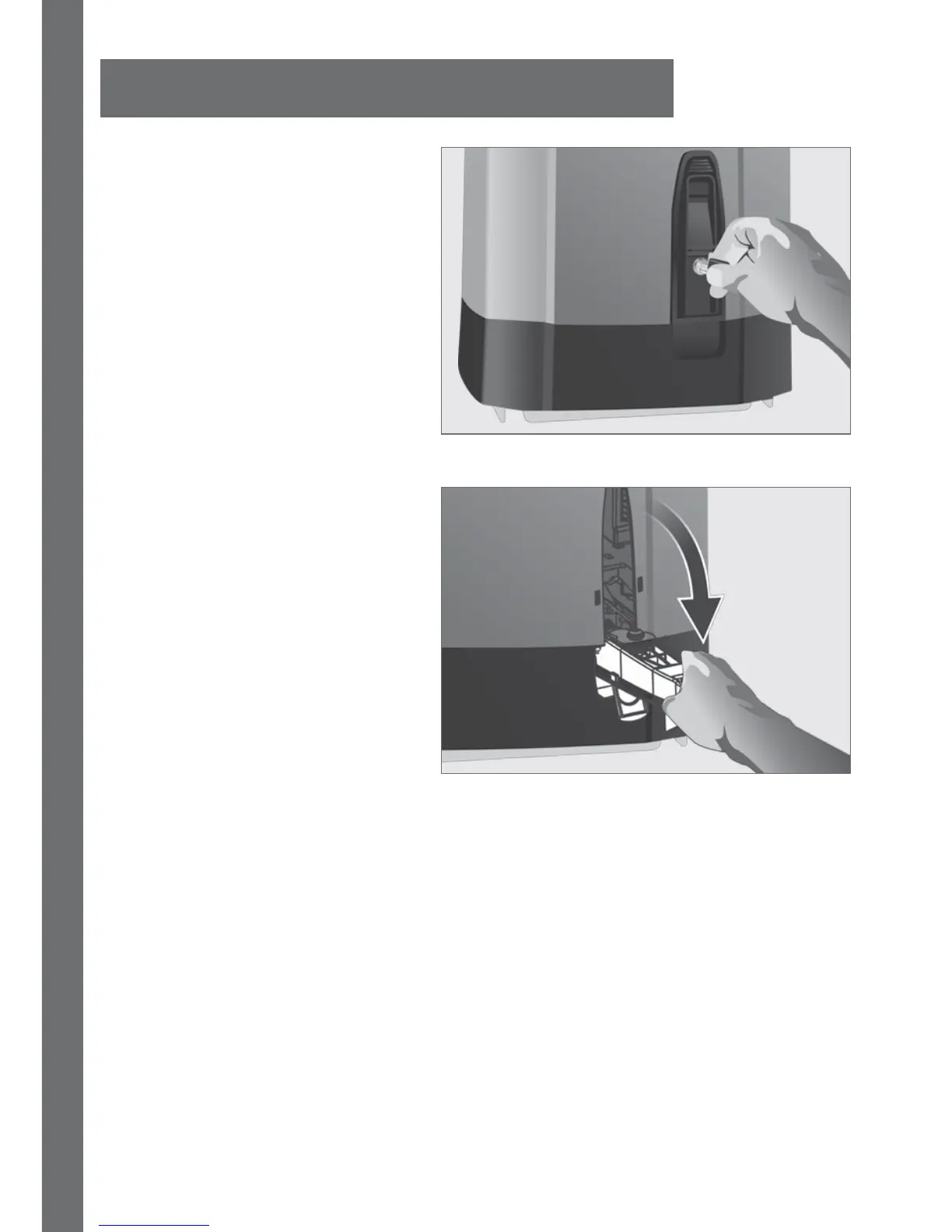

Flip down the lock cover and Insert
the camlock key and rotate it 90°
clockwise.
Pull down the manual release handle
to override the gearbox and allow it
to be moved manually.
Reverse the process to re-engage
the gearbox/drive.
FIGURE 6
FIGURE 5
