36 – Monitoring T2S - ETH User Manual – v1.4
Graphical User Interface

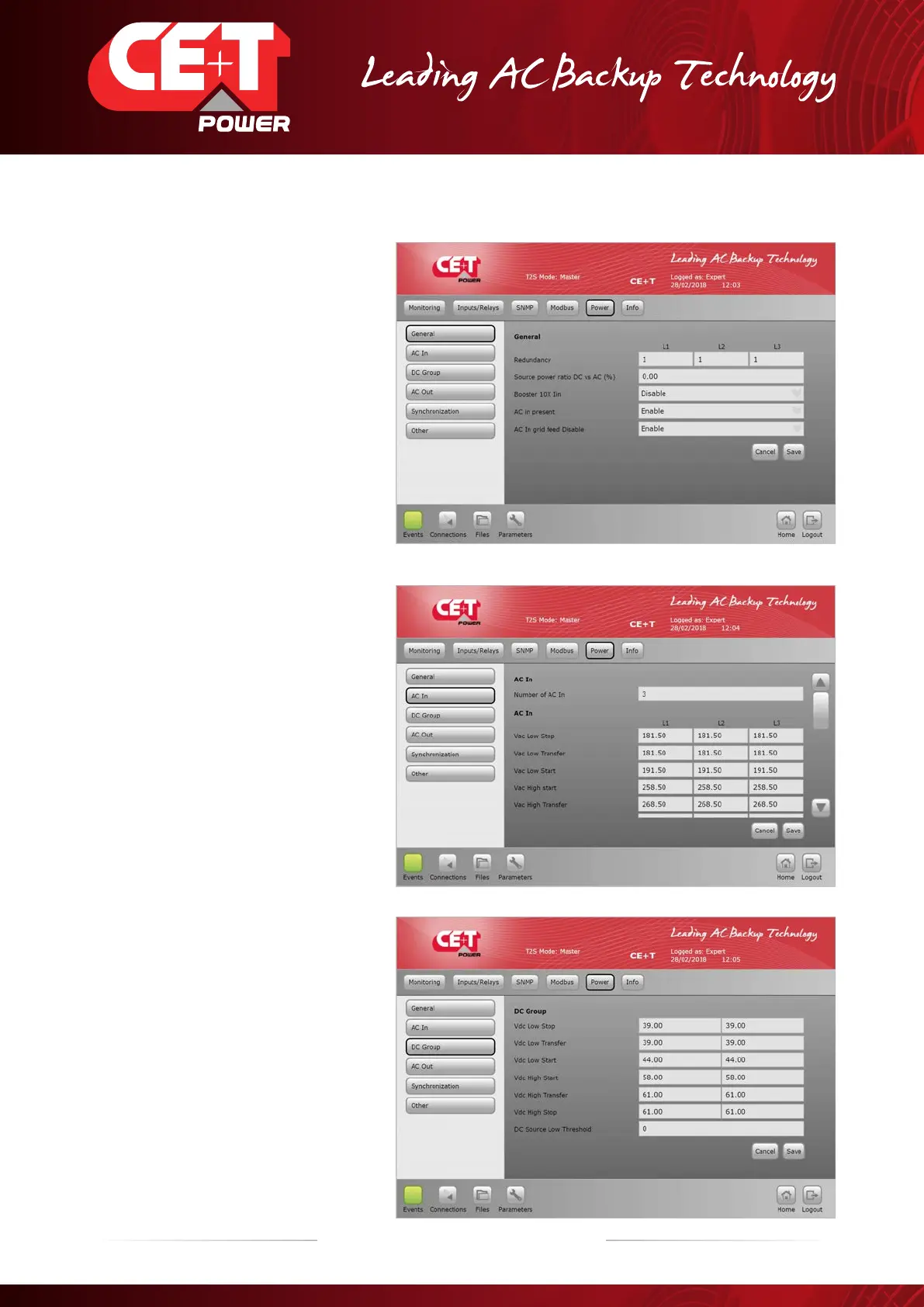

7.4.10.5 Power
• General
Redundancy: number of redundant
module can be set for each output
phase.
Source power ratio DC vs AC:
percentage of power fed by DC. By
default this parameter is set to 0,
100% on AC input.
Booster 10x Iin: enable the boost
(see manual of power module used
for information on this feature).
AC In grid feed Disable: enable
this option if no power should be
fed from the AC Input.
• AC In
Threshold values for module
operation on AC input side. User
shall modify it ONLY if he has
followed a proper training by
CE+T.
• DC Group
User can configure the DC input
as per the number of battery bank
installed.
Maximum two DC groups can be
configured.
