37 – Monitoring T2S - ETH User Manual – v1.4

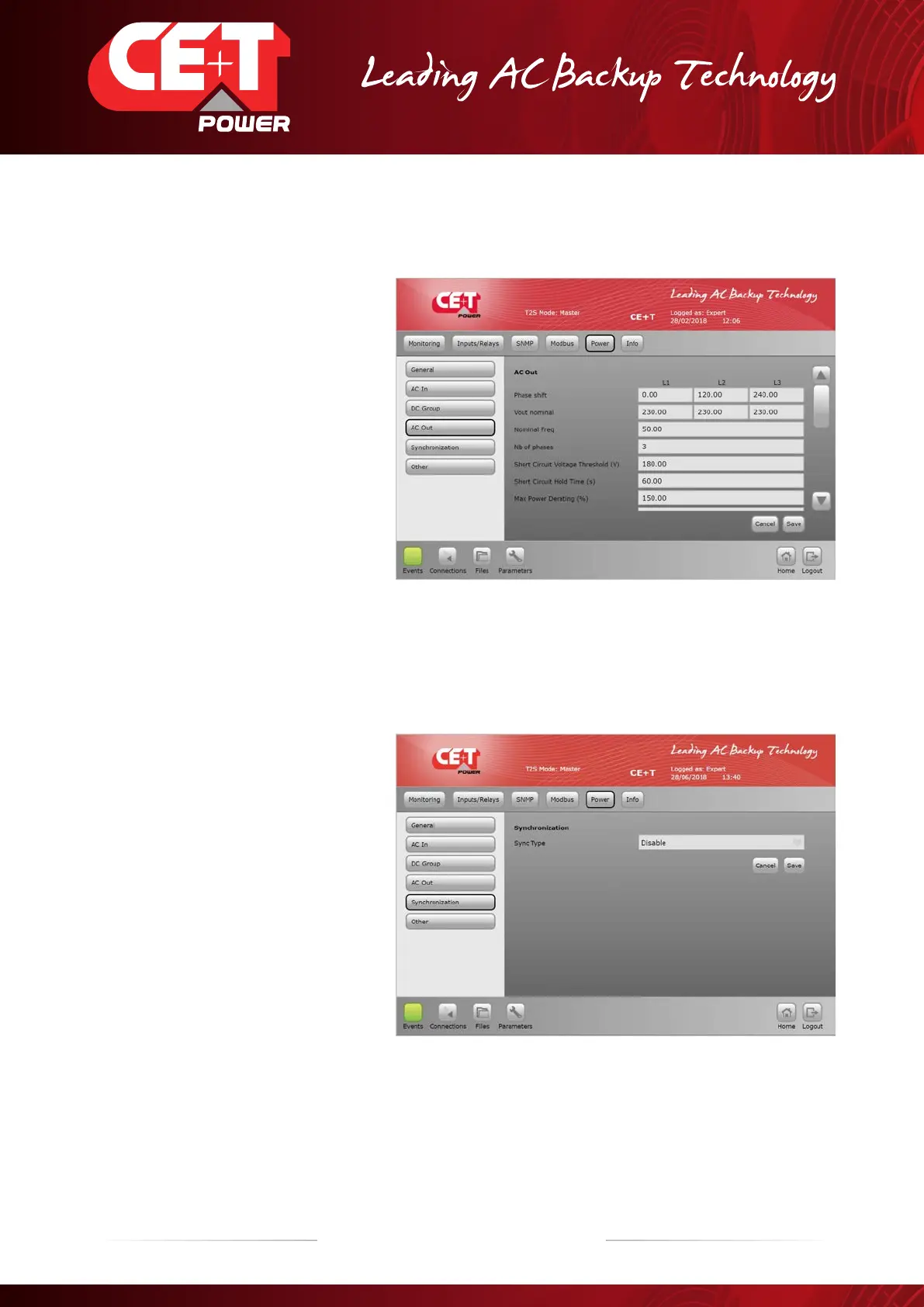

Graphical User Interface
• AC Out
Phase shift & Vout for each
phase: define phase shift between
phase.
Nominal Freq: nominal frequency
50 or 60 Hz.
Nb of phases: Number of phase
single or three phase.
Short circuit voltage & hold time:
short circuit hold time before shut
down 10 to 600 seconds (default
60).
Max power/current derating.
Max overload duration.
Saturation Threshold: Saturation
level (default 80%) generate alarm
if AC output power exceed 80% of the total installed power.
Delta mode: operation mode delta for 3 phase configuration only.
• Synchronization
Synchronization parameters are
used to configure in the higher
capacity system (> 32 inverter
modules) by using TUS.
TUS is a synchronization kit.
