Certikin MB35S - Flue Terminal Dimensions; Outdoor and Vertical Roof Terminals

Condensing Pool Heater Genie S
Outdoor Terminal

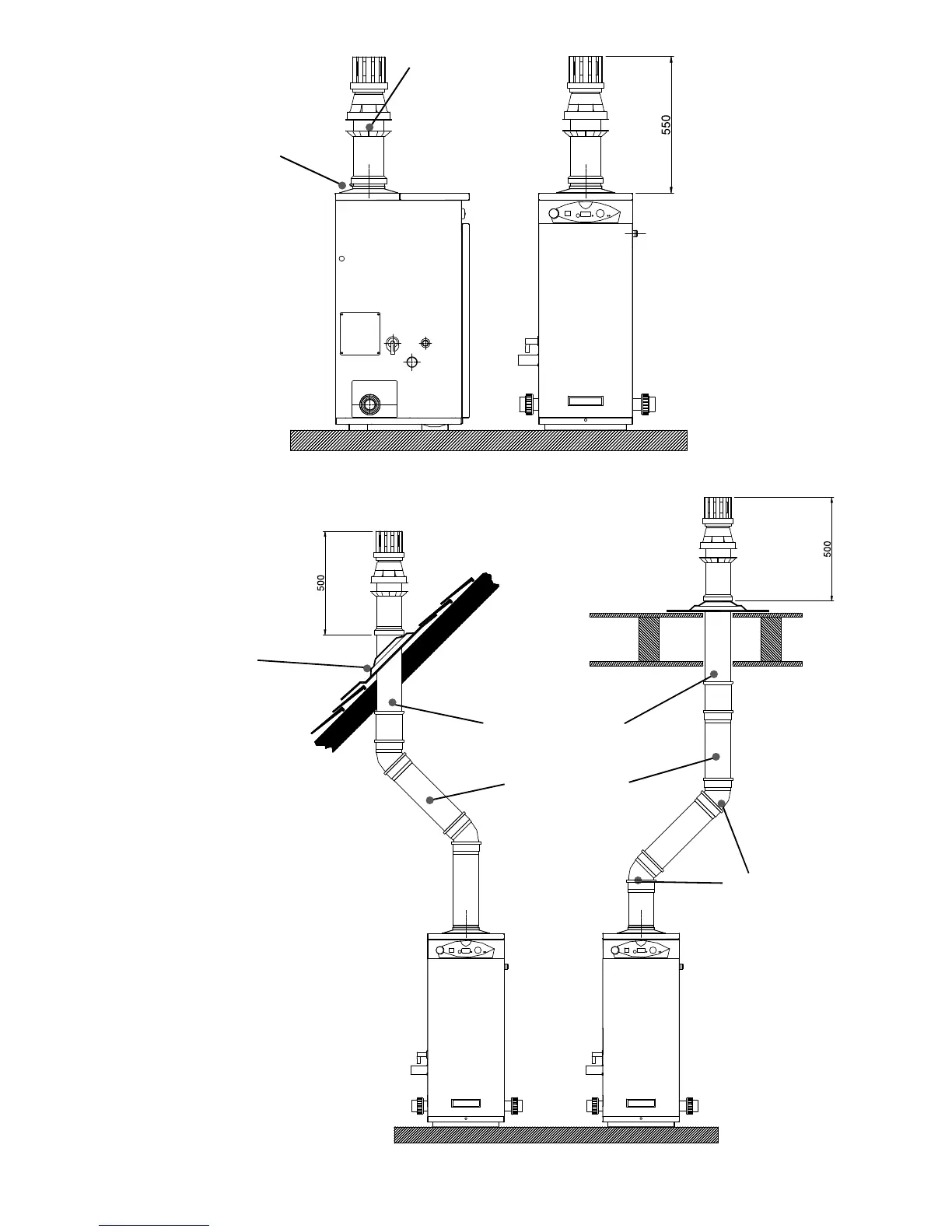

Dimensions
9
Fig. 3.3
Outdoor Flue Terminal
(MBOT)
Fig. 3.4
Clamp Assembly Screw
Pitched Roof Instal-
lation
Vertical Roof Terminal
Dimensions
Flat Roof
Installation
Use Seldeck Flashing
System for all Roof
Installations
Vertical Roof Terminal
(MBVT)
1 metre Horizontal/
Vertical Extension Pipe
(MBHVE)
45 degree bends
(MB45DB)
