Certikin MB35S - Wall Mounting Assembly

Condensing Pool Heater Genie S
21

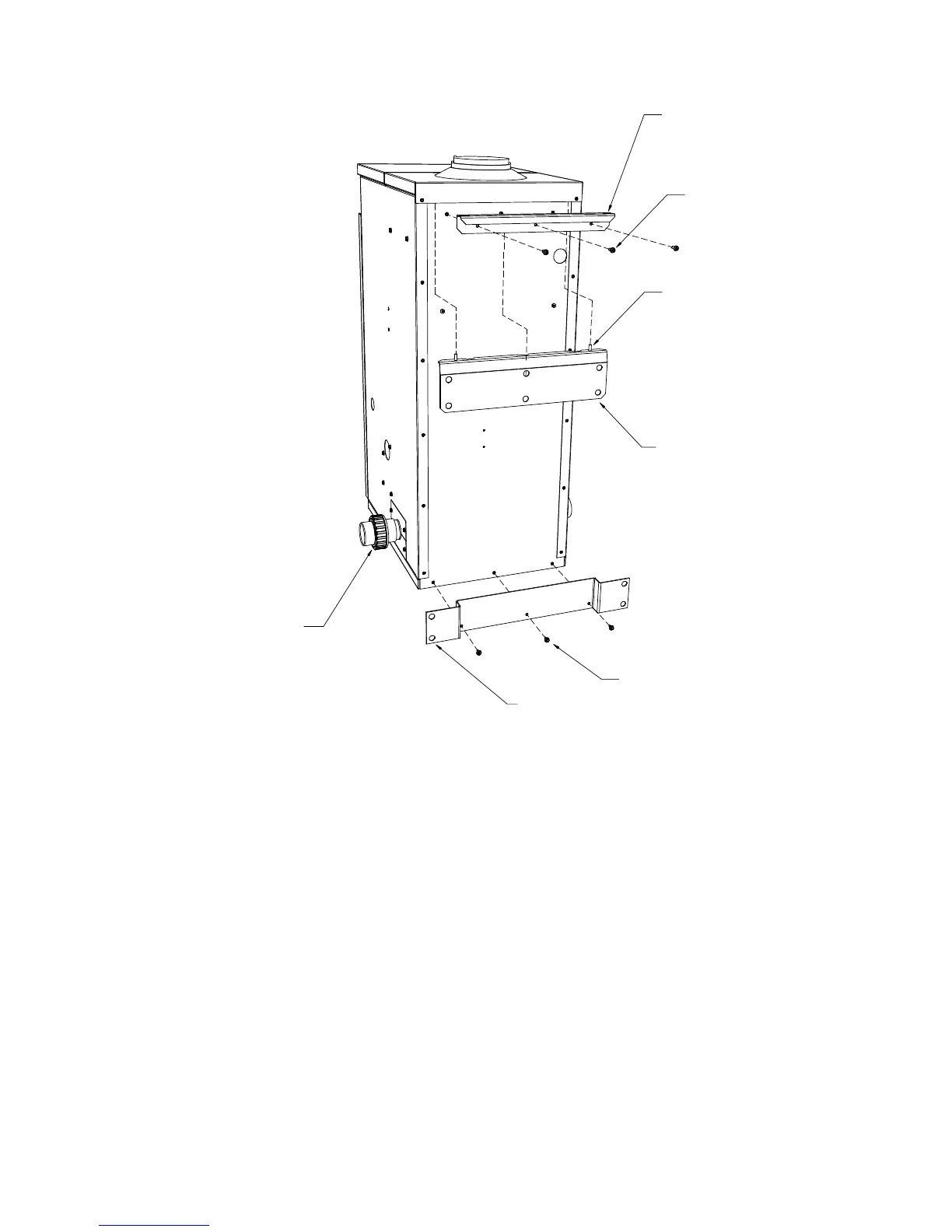

Fig. 10.5
BOTTOM WALL MOUNTING BRAKET
REMOVE DEMOUNTABLE
POOL FITTINGS FOR BETTER
DRILL ACCESS
TOP WALL
MOUNTING BRACKET
LOCATING STUDS
(2 PLC'S)
GOLD SCREWS SUPPLIED (3 PLC'S)
M4 SCREWS
SUPPLIED (3 PLC'S)
TOP HANDLE BRACKET
