Condensing Pool Heater Genie S

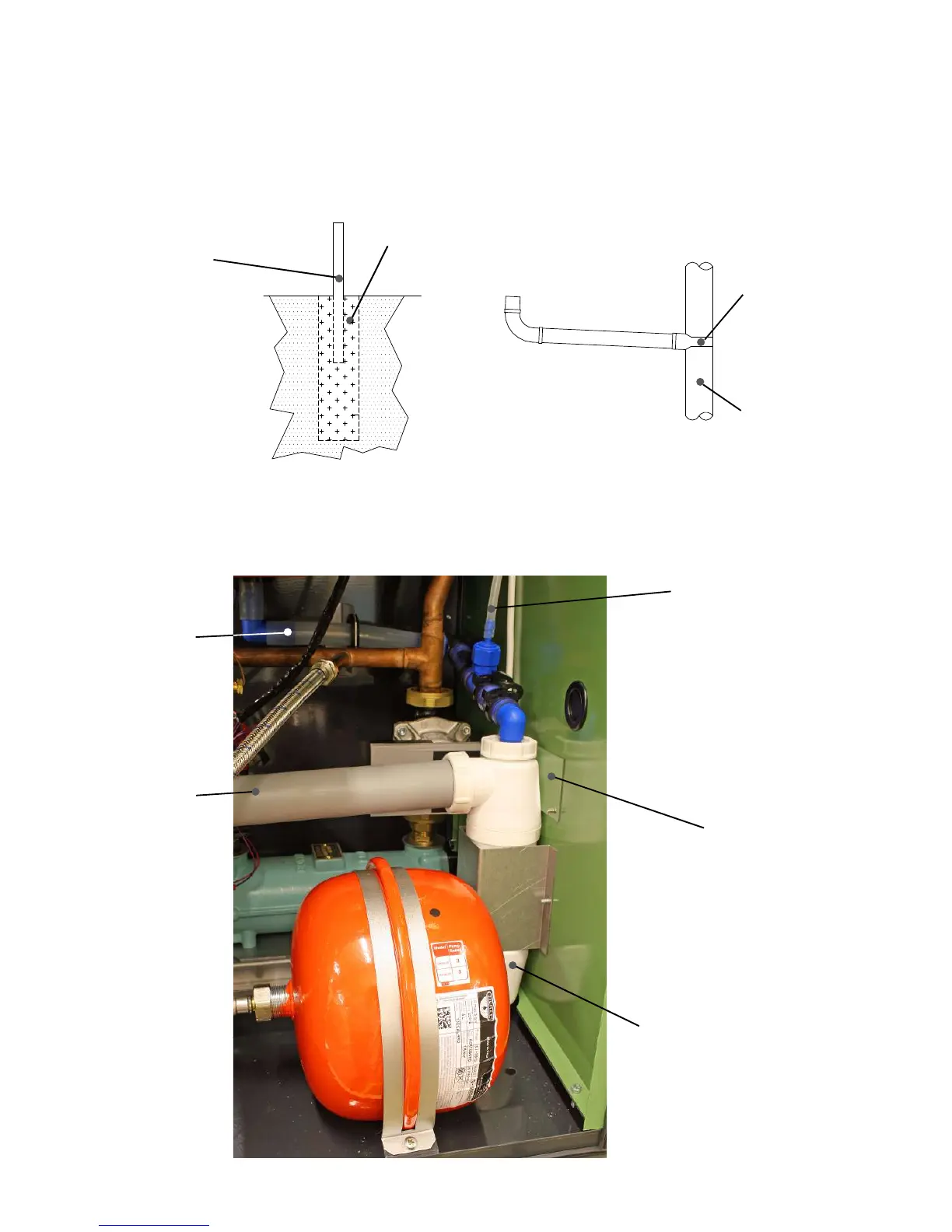

Example Condensate Disposal Methods
Condensate
Drain from
Heater
Condensate Pressure
Switch Pipe
Connection
Connect To
Waste
(Option to
exit Heater
left or right)
Drain Cap, (behind vessel)
can be removed for
Winterisation
Condensate Syphon (75 mm)
15
Fig.7.1
Removable Plate
(Use to close off
unused Waste exit
on panels)
1:20 Fall ( 2.5 Degrees )
Strap-On
Boss
200mm Land Drain
Filled with Lime
chippings 400mm
deep
Insulate against
freezing
Note: Do not reduce the pipe size below the 40mm provided.
Fig.7.0
Soakaway
Stack Attachment
Soil Pipe or
Drain
