Condensing Pool Heater Genie S
Wall Mounting Kit
Overview
The Genie models can be wall hung using the Wall
Mounting Kit.
Kit Part Code: MBWMK35/50
Instructions
• Select a suitable wall and position to mount the
Heater. (Note the Heater weighs 53kg).
• Screw the Top Wall Mounting Bracket level to
the wall (Fig 10.4).
• Attach the Top Handle Bracket to the rear of the
Heater by using the 3 M4 screws supplied
(Fig 10.5).
• Attach the Bottom Wall Mounting Bracket to the
rear of the Heater by using the existing 3 gold
screws that fi x the base to rear panel (Fig 10.5).
• Hang the Heater on Top Wall Mounting Bracket
locating it on the two 5mm studs.
• With the Heater now in position drill and screw
the Bottom Wall Mounting Bracket to the wall.
See (Fig 10.4)
20

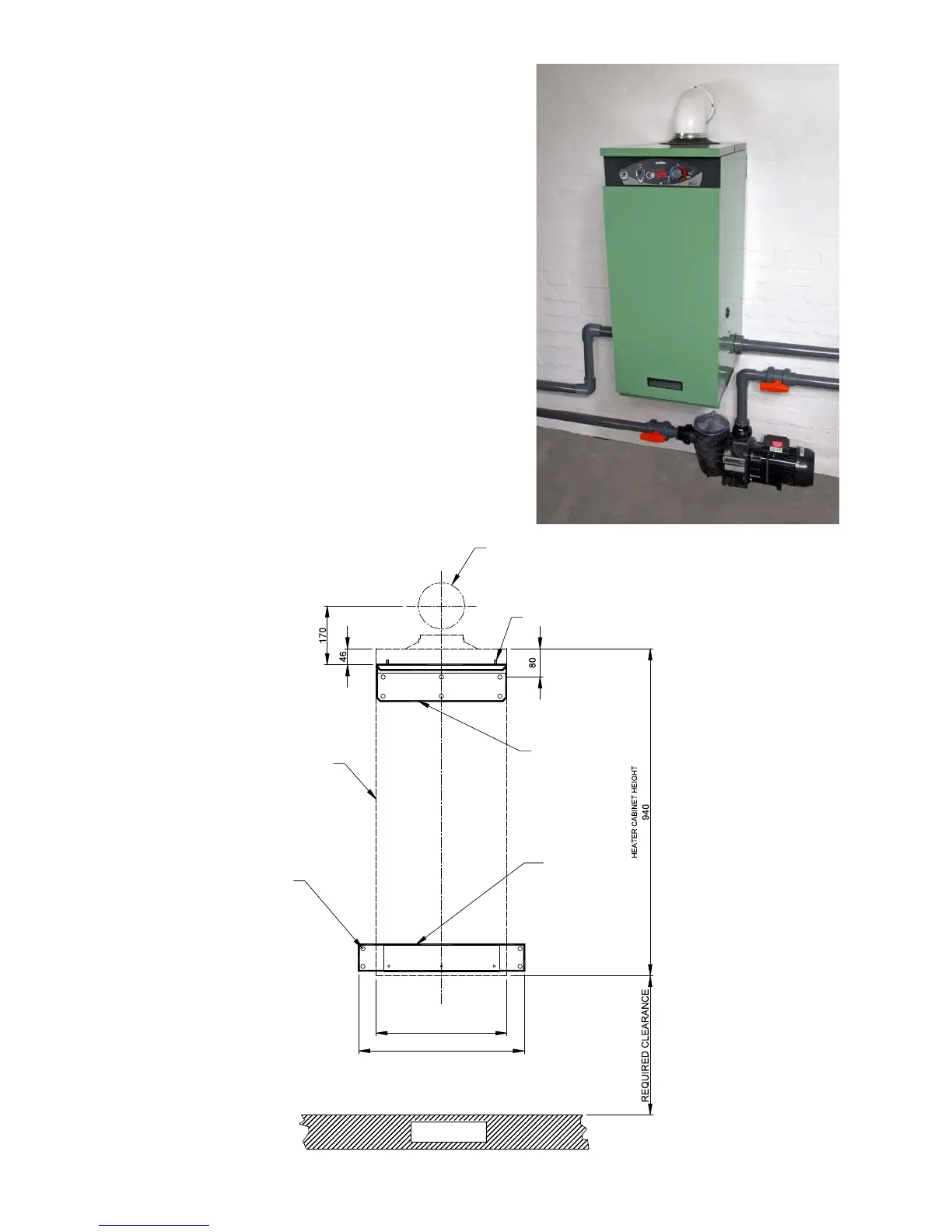

Fig. 10.4
Fig. 10.3
476
376
HEATER
OUTLINE
TOP WALL
MOUNTING
BRACKET
HORIZONTAL
WALL
TERMINAL
CORE DRILL
POSITION
BOTTOM WALL
MOUNTING
BRACKET (FITTED TO
HEATER BEFORE
WALL HUNG)
FLOOR
DRILL HOLES AFTER
HEATER HAS BEEN
WALL HUNG
5MM STUD (2 PLC'S)
HEATER CABINET WIDTH
