Condensing Pool Heater Genie S
Operation
• Turn on all the Heaters with their Pool Tempera-
ture Controls.
• The Master will show temperatures and the
Slaves will show “---”.
• Set the required temperature on the Master and
provided there is an electrical demand at the
Master’s Pool Demand connection, the Heat-
ers will operate.
Features
• A Master is the only Heater with a Pool Sensor
connected, move the sensor and the Master
changes.
• If the Master Pool Temperature Control is
turned off , none of the Heaters will operate.
• If a Slave’s Pool Temperature Control is turned
off it will not operate. The Master will know and
alter its control accordingly.
• If a safety device on the Master operates it will
not operate but will continue to control the
Slaves.
• If the Master Control fails the ‘system’ will fail.
Change the Master to a Slave and one of the
Slaves to a master to enable the system to
operate again.
• If a safety device on any of the Slaves oper-
19
• Turn on the Mains, then switch on all the Heat-
ers. After a short self-test the Master should
show the actual temperature, and the Slaves
three dashes “---”. If a Slave continues to show
a display of dashes, this indicates it not correct-
ly connected to the Master, check the Intercon-
nection cable plugs are fully home.
• Replace the panels.
Fig. 10.2
ates that Slave will not operate.
• If a Slave has Flow fault which its Pressure
Switch detects the burner will stop immediately
and the Filter LED will light. It will no longer be
available to the group. It will then check every
3 minutes or so to see if the problem has been
corrected, the Filter LED be lit. It will put itself
back in the group if fl ow is satisfactory.
• The Master display can be altered in Setup
Mode like a single Heater. (see Page 17)
• Unlike a single Heater, there is no modulation
of individual burners.
Displays
• The Master display is just like a single Heater.
• A Slave will display “---” when working as part of
the group. It will show all the fault conditions of
a single Heater except “P/oc”, the Pool Sensor
Open Circuit fault. If this is displayed it indicates
an interconnection problem, check the cables
and connectors.
• The Pool Demand LEDs work as a Single Heat
er. On when operating, Off when off , and Flashing
if not needed by the Master.
• The warning LEDs work for all in a group, as
per a single Heater.

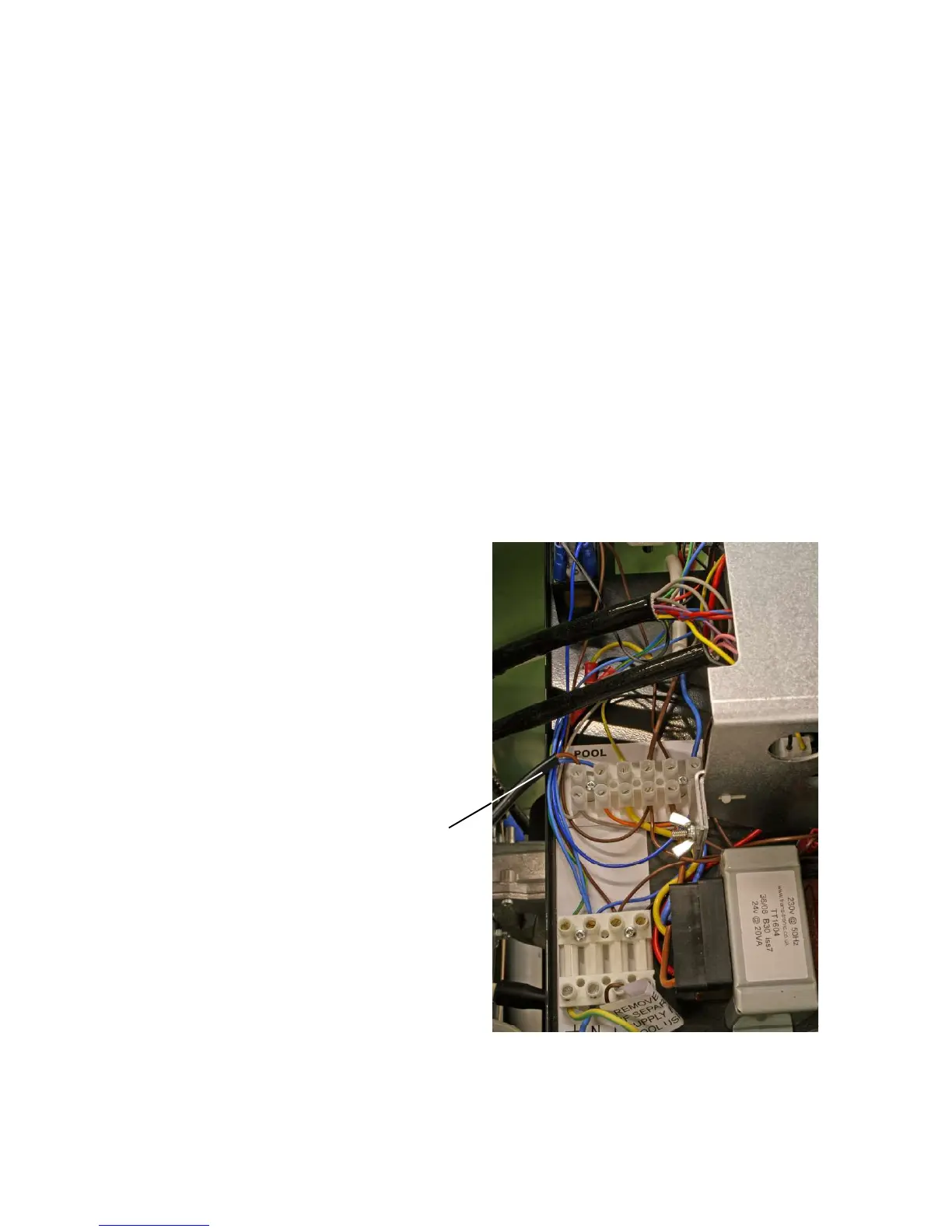

Pool Temp Sensor wires
