SECTION 1 CESSNA
GENERAL MODEL T182T NAV III
GFC 700 AFCS
U.S.

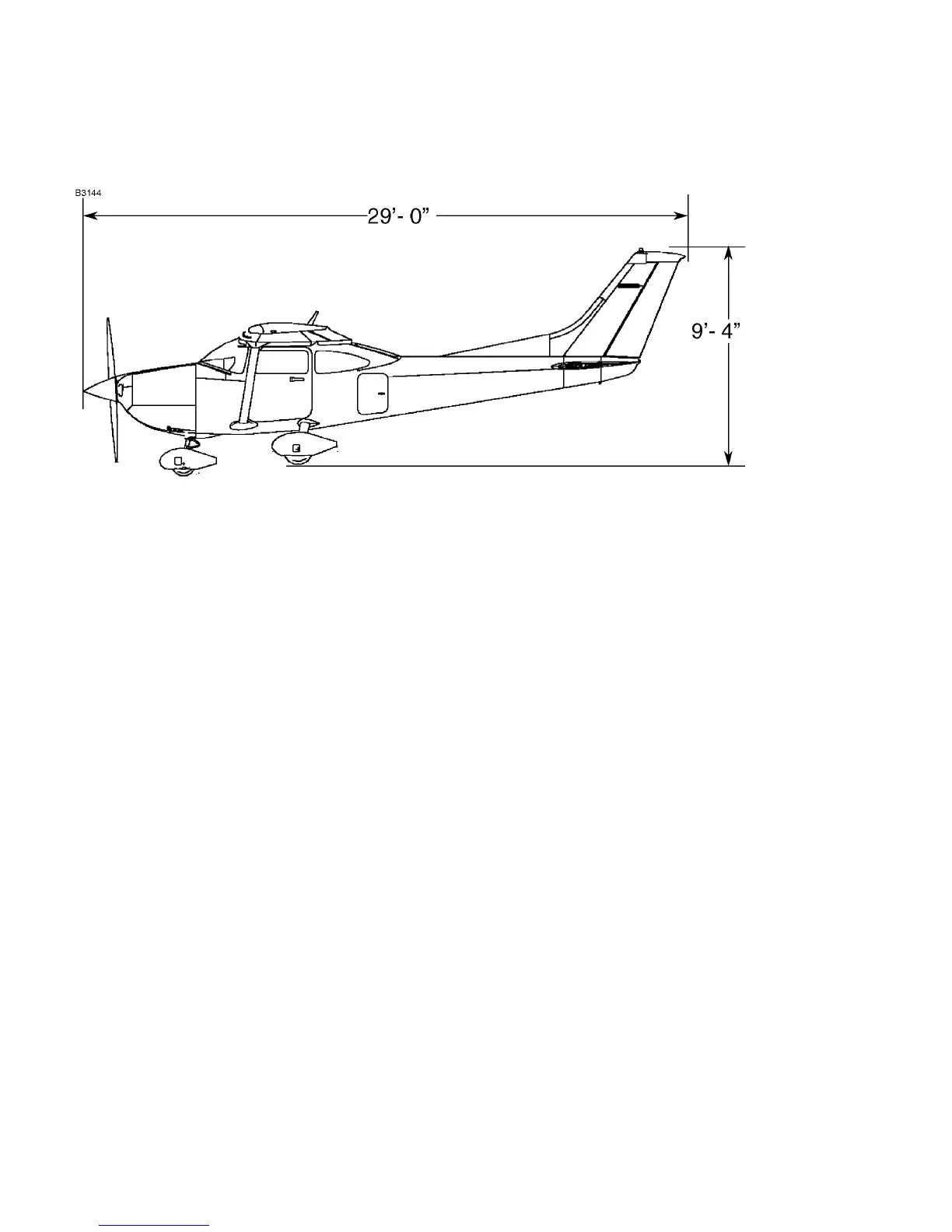

THREE VIEW - NORMAL GROUND ATTITUDE
• Wing span shown with standard strobe lights installed.
• Wheel base length is 66.5 inches.
• Propeller ground clearance is 10.875 inches.
• Wing area is 174.0 square feet.
• Minimum turning radius (*pivot point to outboard wing
tip) is 27.0 feet.
• Normal ground attitude is shown with nose strut showing
approximately 2 inches of strut, and wings level.
Figure 1-1 (Sheet 2)
T182TPHBUS-00
1-4
