SECTION 6 CESSNA
WEIGHT AND BALANCE/ MODEL T182T NAV III
EQUIPMENT LIST GFC 700 AFCS
U.S.

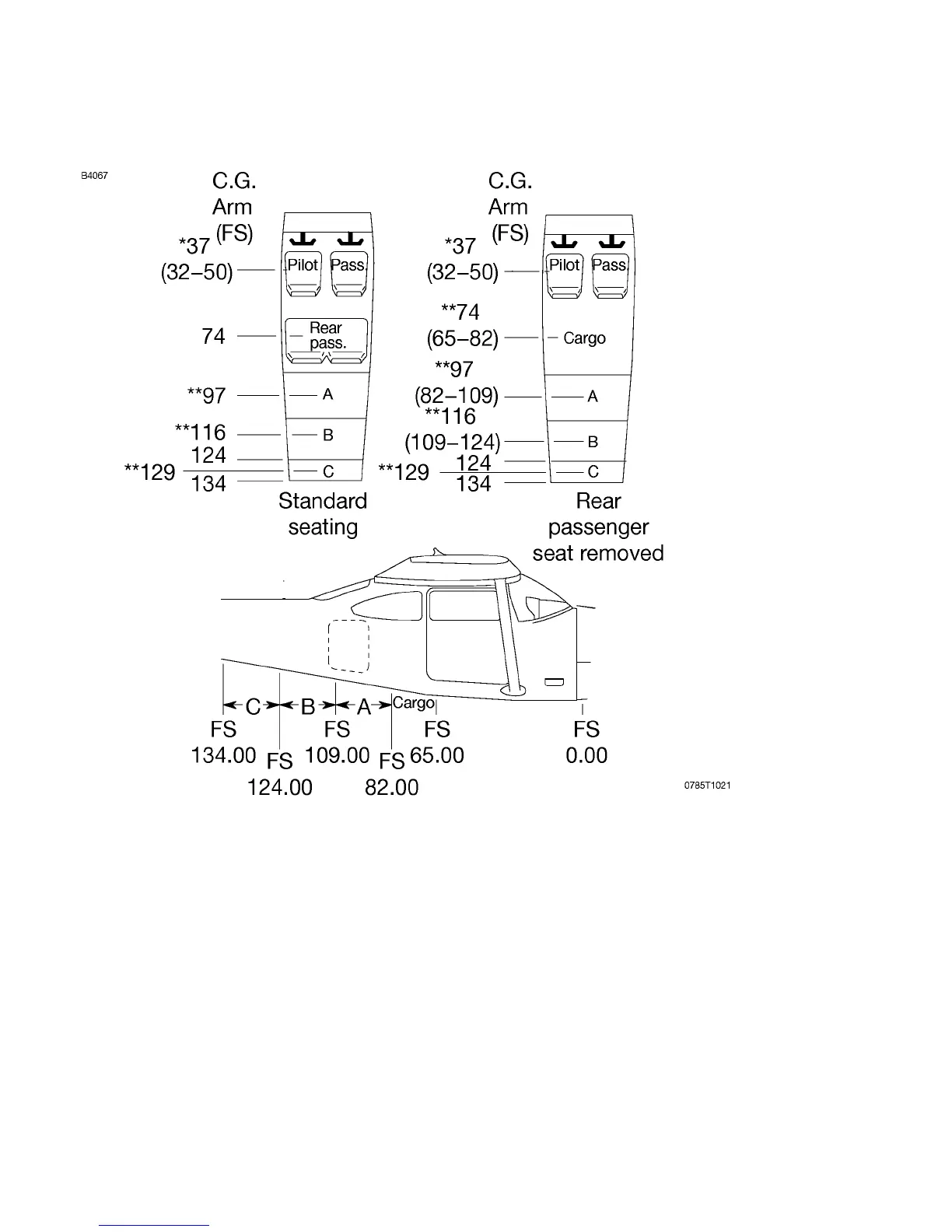

LOADING ARRANGEMENTS
*Pilot or passenger center of gravity on adjustable seats positioned
for average occupant. Numbers in parentheses indicate forward
and aft limits of occupant center of gravity range.
*Arm measured to the center of the areas shown.
• The usable fuel C.G. arm is located at FS 46.50.
• The aft baggage wall (approximate FS 134.00) can be
used as a convenient interior reference point for
determining the location of baggage area fuselage
stations.
Figure 6-5
T182TPHBUS-00
6-14
