1. Once the base plate is xed, raise the nut securing the base plate from the top about 5-10 mm and add a washer.

2. Remove the small front plastic cover from the operator and make a manual release by putting the key into keyhole, turning right and pulling the lever down (see manu-

al release page 5).

3. Remove the 2 screws on the sides of the cover (see picture 7).

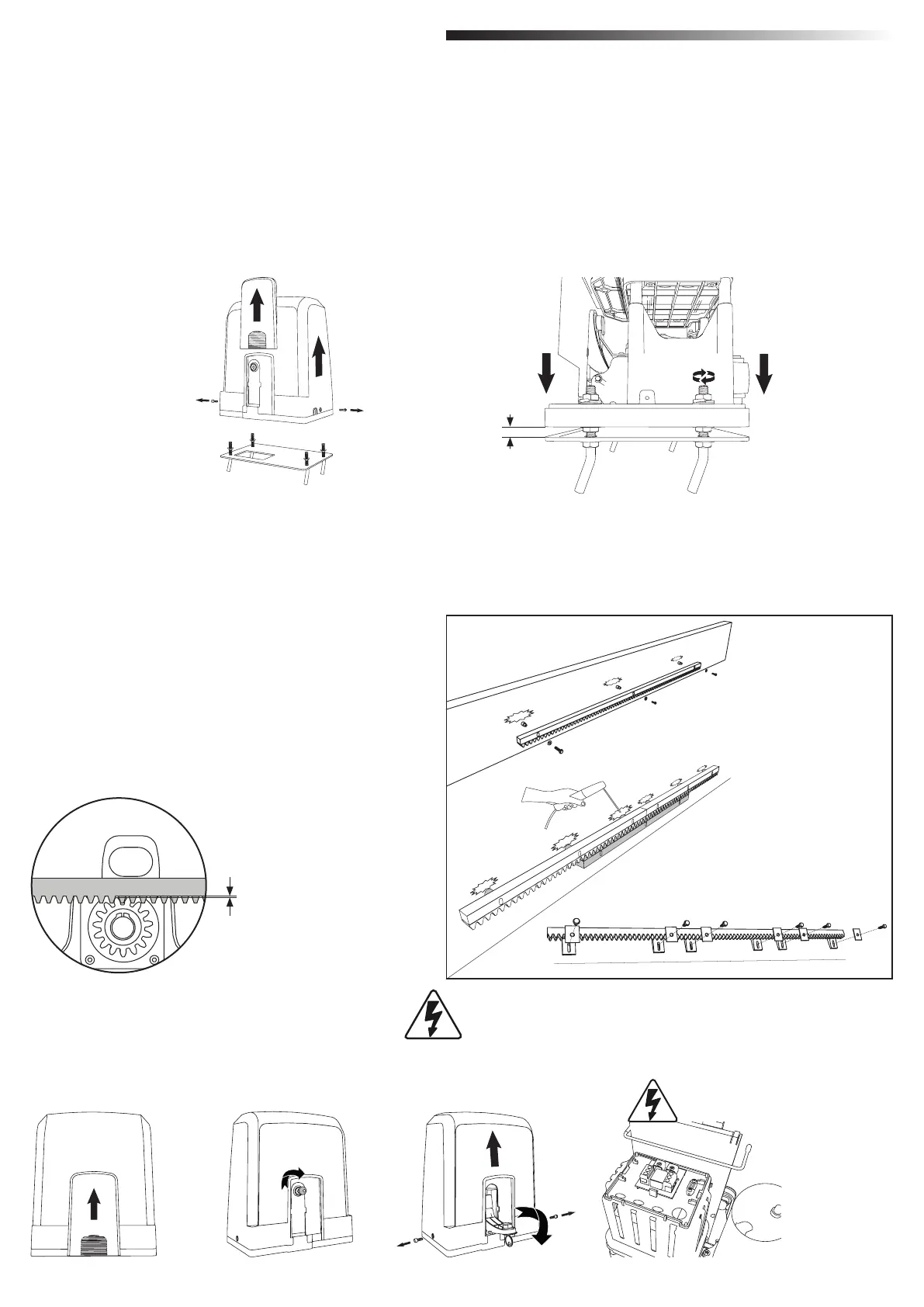

4. Remove the Operator cover and put the operator on the base plate using the anchor screws and hole in the operator hosuing. Note: there must be distance between

the base plate and the operator hosuing (5-10 mm) for later height adjsutments possibilities (see picture 8).

5. Feed the cables through the repsective hole in the operator housing bottom.

6. Secure the operator using washer, spring washer and the nut as shown in picture 8.

5.4 Installing Motor on the Base Plate

max. 10 mm

Picture 8Picture 7

5. MECHANICAL INSTALLATION

1. Manually move the gate into CLOSED position.

2. The steel or nylon rack can be attached by welding (steel only) or with screws (see picture 9). Put the rst rack segment at the end of the gate so that it connects to the

operator sprocket as shown in the picture 10 and attach the rack to the gate. Then move the gate and attach the next rack segment near to the previous segment.

Proceed this way until you will reach complete OPEN position.

NOTE: At all times consider that the rack does not complietly lie on the operator sprocket or has too much distance to it.

5.5 Gate Rack Mounting

Steel Rack (welding)

Steel Rack assembly help

2-3 mm

Before assembly:

• Check whether the required screw-in depth available.

• Use the supplied connecting elements (screws) to assemble

the racks.

• Attach the rack segment at the right position by using the

delivered screws.
