Chamberlain CSW200UL8 - Gate Arm Installation; Output Shaft Adjustment

14

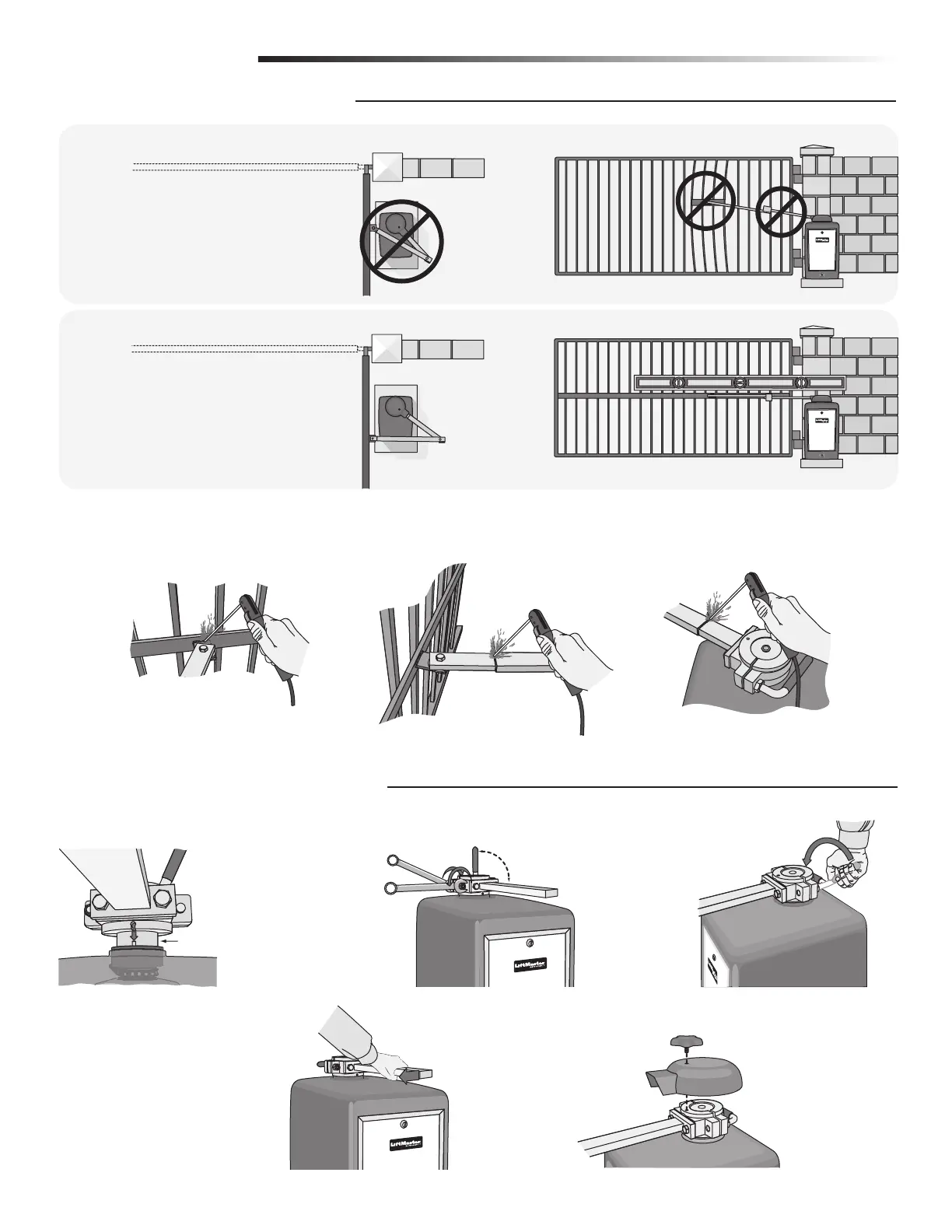

Gate Closed
Incorrect Installation!
Completely weld around the rectangular tubes and bracket!
Correct Installation
Gate Open
Once the gate arm measurements are calculated:
1. Weld the bracket on the gate.
1. Fit pin in slot.
2. Tighten the nut.
Output Shaft
Red handle must be in
90° position
3. Tighten the handle.
5. Replace cover and star knob.
4. Pull the short arm away from
the gate.
NO slippage should occur.
If it does, go back and tighten the
nut.
2. Weld the longer arm..........
3. .....then weld the shorter arm.
Arm is on TOP of bracket.
INSTALLATION
GATE ARM INSTALLATION
OUTPUT SHAFT ADJUSTMENT
