NOTE: When touched, these electrically activated edge sensors
immediately signal the gate operator to stop and reverse.
Property owners are obligated to test edges monthly.
UL Listed Edge Sensors
(See Accessories for part number.)
Connect both edge
sensors parallel to
sensor connector.
UL Listed 3 sided Edge Sensor
(See Accessories for part number.)
Open and Close
Contact Sensors
3 Edge Contact Sensor

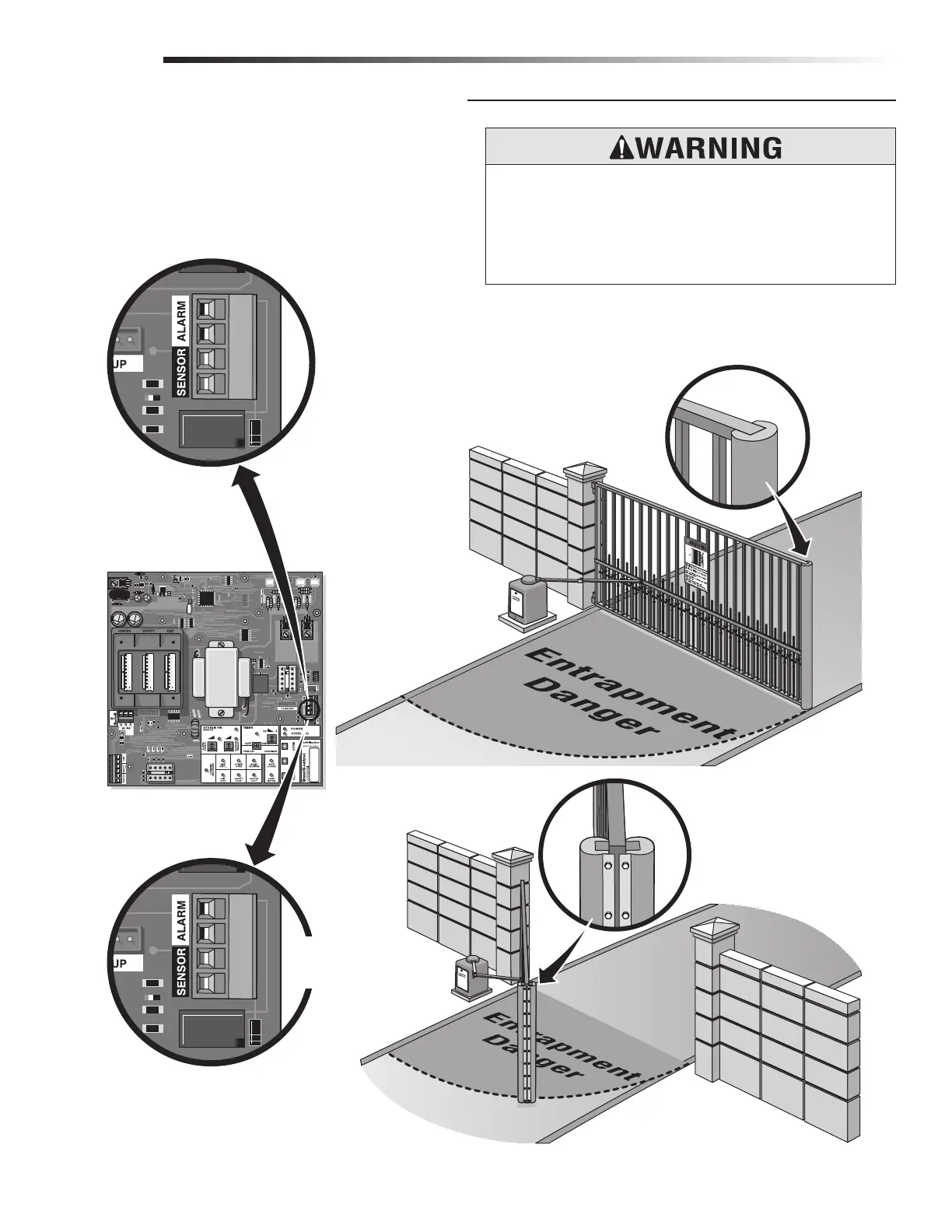

To prevent SERIOUS INJURY or DEATH from a moving gate:
• Locate entrapment protection devices to protect in BOTH the
open and close gate cycles.
• Locate entrapment protection devices to protect between
moving gate and RIGID objects, such as posts or walls.
Open Sensor
Close Sensor
Contact Sensors (Edge Sensor)
Contact your local dealer for more information about edge sensors.
WIRING
ENTRAPMENT PROTECTION DEVICES
