20

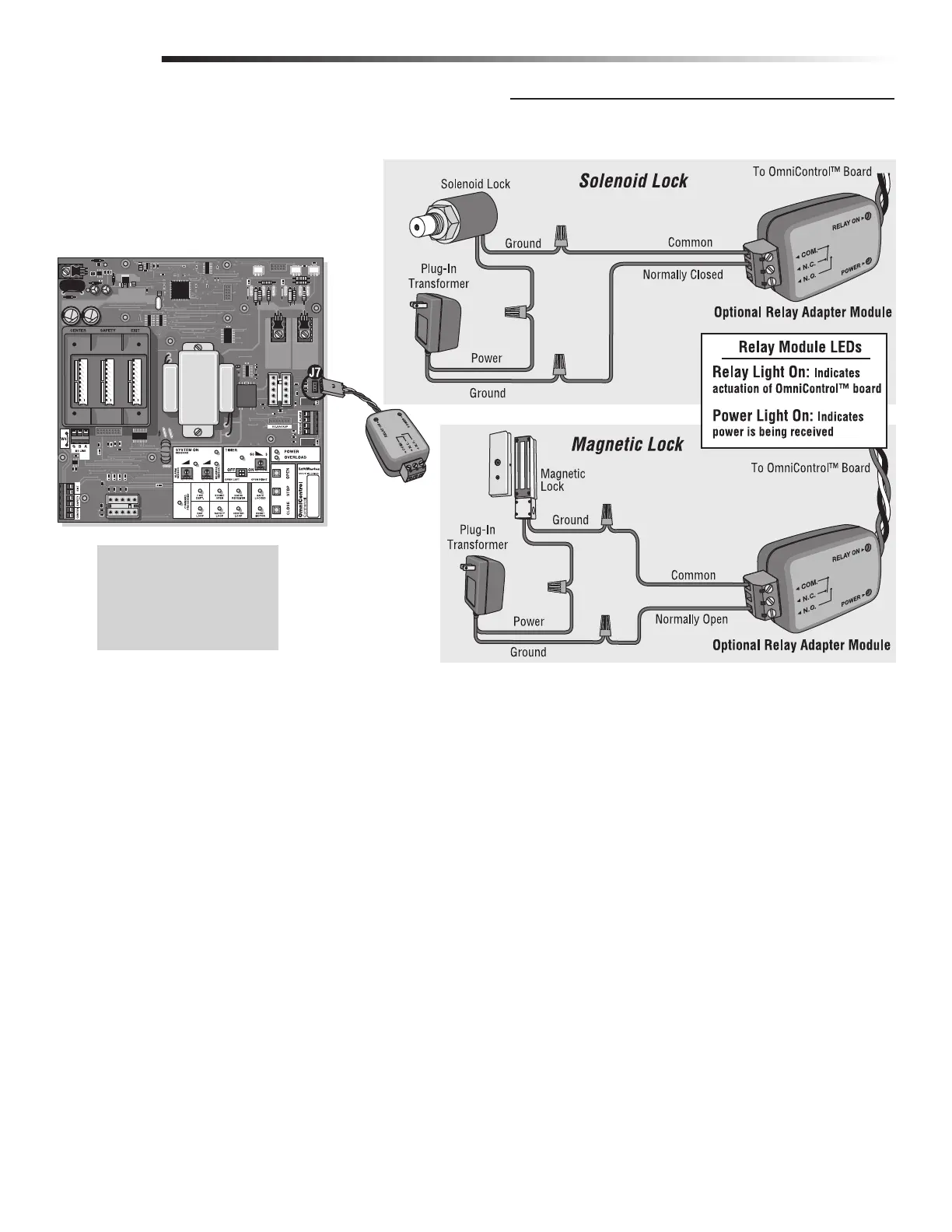

Connection of a solenoid or magnetic lock can be made using the J7 board connector and “Optional” Relay Adapter Module.
Relay Contact Rating
2 Amp - 125 AC/DC
2 Amp switching load
capability
WIRING
SOLENOID/MAGLOCK RELAY CONNECTION
