NOTE: This diagram only shows
the DC2000™ wiring and all other
wiring not shown is the same as
the diagram on page 36.
The 1 HP models Can Not have the
DC2000™ battery backup system.
WIRING DIAGRAMS

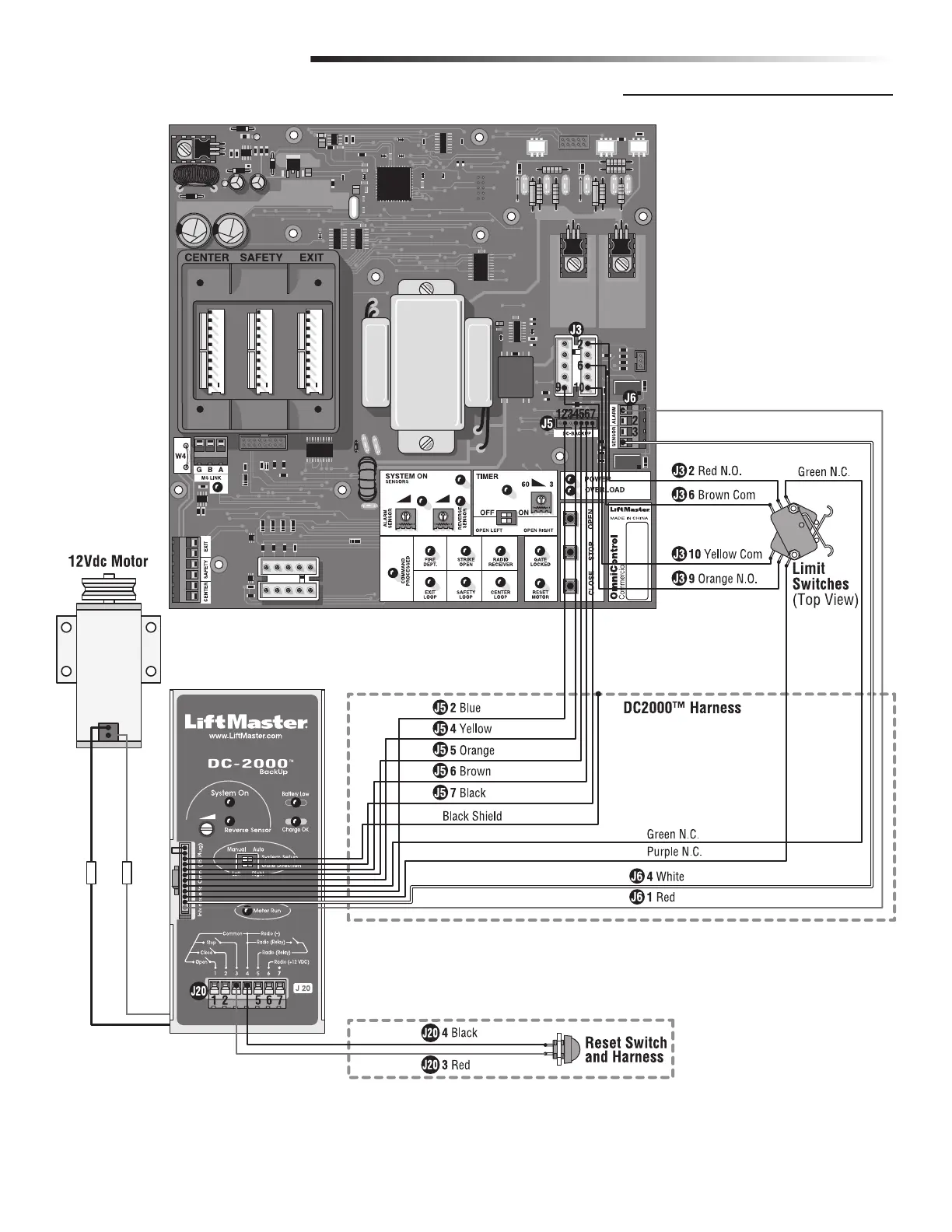

WIRING DIAGRAM DC2000™ FOR SINGLE AND DM
