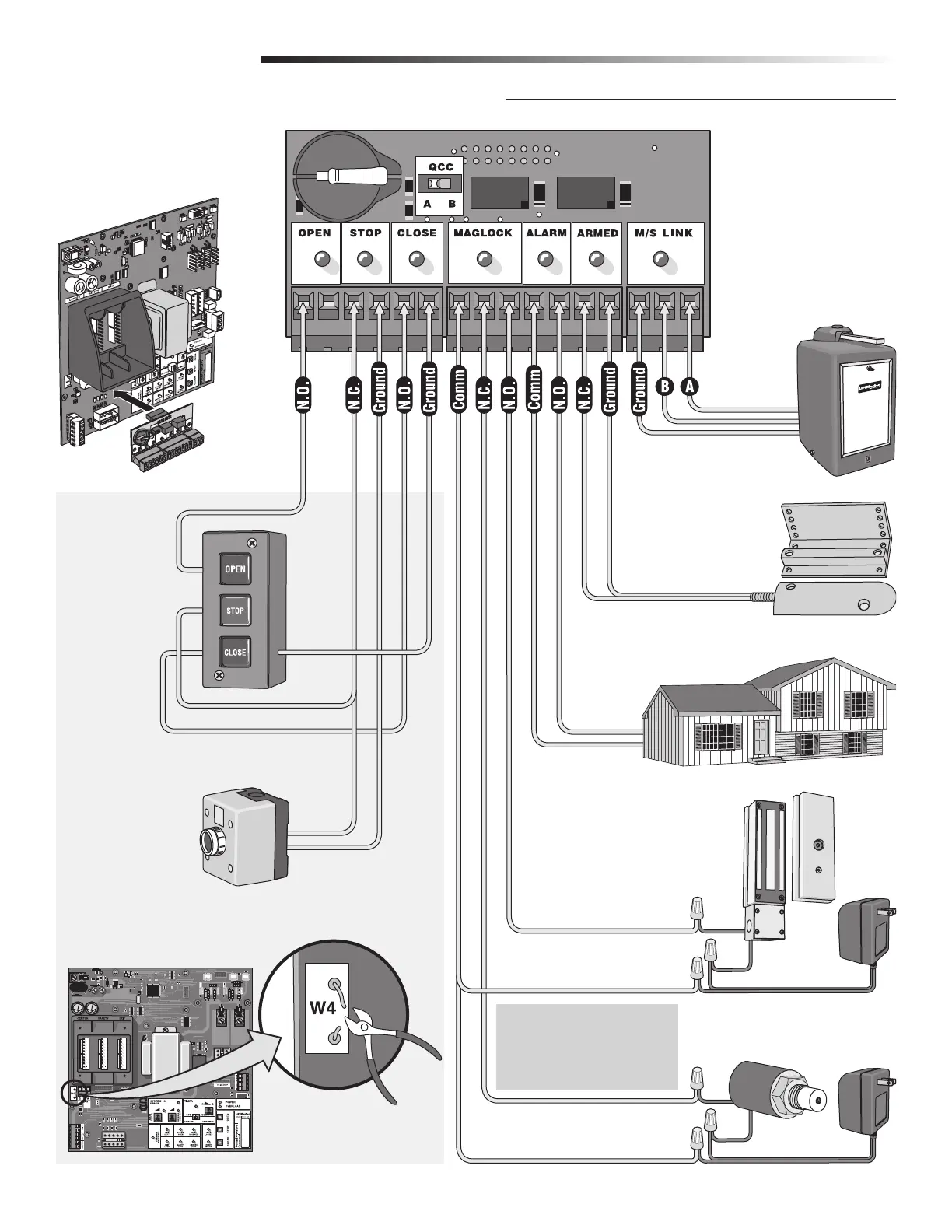

Chamberlain CSW200UL8 - Omnicontrol Board Connections

32
Purchased separately from
LiftMaster
®
. See Accessories.
NOTE: Cut jumper W4 wire for 3 button station or
stop button.
Stop Button
Dry Contact
3-Button
Station
Dry Contact
Second
Operator
Proximity Switch
12 Vdc House Alarm
Maglock
Solenoid Lock
Relay Contact Rating
0.5 Amp - 125 Vac
1 Amp - 24 Vdc
NOTE: Refer to the
OmniControl™ board manual
for more specific information.
OMNICONTROL™ BOARD CONNECTIONS
ADJUSTMENTS
