Chamberlain ELITE Series User Manual

9

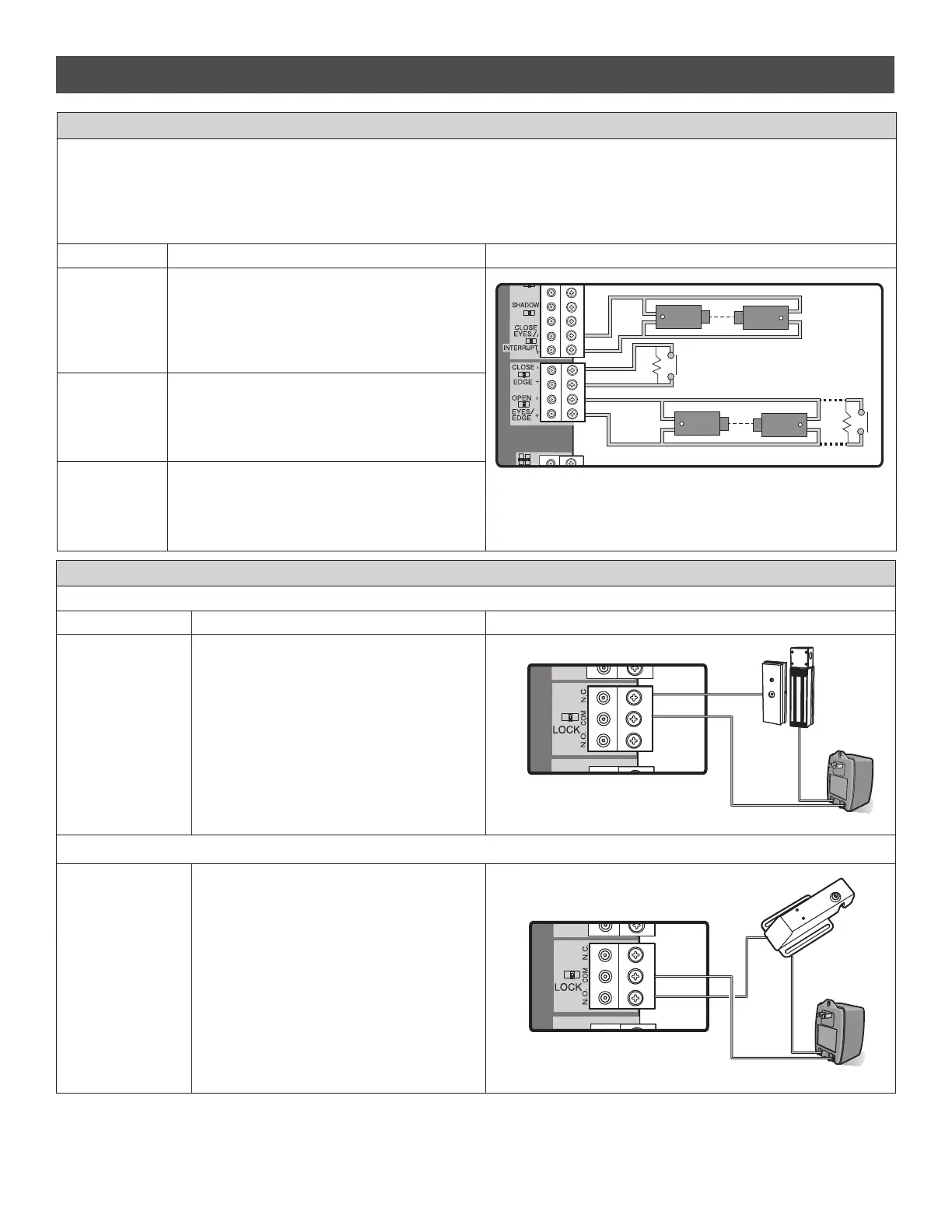

LOCK TERMINALS
MAGLOCK WIRING
TERMINALS FUNCTION WIRING EXAMPLE
NC and COM
Normally Closed (N.C.) output for maglocks. Relay
activates prior to motor activation and during
motor run. Relay is off when motor is off.
CO
L
B
PLY
AX
-
+
SOLENOID LOCK WIRING
NO and COM
Normally Open (N.O.) output for solenoid locks.
Relay activates prior to motor activation and
during motor run. Relay is off when motor is off.
CO
L
B
PLY
AX
-
+
EYES/EDGE TERMINALS
The EYES/EDGE terminals are used for connecting accessories such as entrapment protection devices and vehicle detection devices. At least one
external monitored entrapment protection device is required prior to gate movement. Monitored entrapment protection devices should have been
installed with the operator at the time of installation. The vehicle detection devices may be monitored or non-monitored, but only ONE monitored
device may be connected to each input, inclusive of entrapment protection devices. Multiple non-monitored devices can be wired to the same input.
A monitored device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the
device indicating it is working properly, it will not run in that direction.
TERMINALS FUNCTION WIRING EXAMPLE
CLOSE EYES/
INTERRUPT
The CLOSE EYES/INTERRUPT input is for
photoelectric sensor vehicle detection for the close
direction. When an obstruction is sensed during gate
closing the gate will open to the full open position.
This input will be disregarded during gate opening and
resets the Timer-to-Close.
+
+
+
–
–
–
M
K
A
CLOSE EDGE
The CLOSE EDGE input is for edge sensor vehicle
detection for the close direction. When an obstruction
is sensed during gate closing the gate will reverse to
the full open position, disengaging the Timer-to-Close.
This input will be disregarded during gate opening.
OPEN EYES/
EDGE
The OPEN EYES/EDGE input is for photoelectric sensor
or edge sensor vehicle detection for the open
direction. When an obstruction is sensed during gate
opening the gate will reverse for 4 seconds then stop.
This input will be disregarded during gate closing.
CONTROL BOARD
This manual downloaded from http://www.manualowl.com

Chamberlain ELITE Series Specifications

General

Battery Backup	Yes
Motor Type	DC
Power Supply	120V AC
Remote Control	Yes
Max Gate Length	20 feet
Smart Home Compatibility	Yes (MyQ compatible)
Maximum Gate Width	20 feet
