3

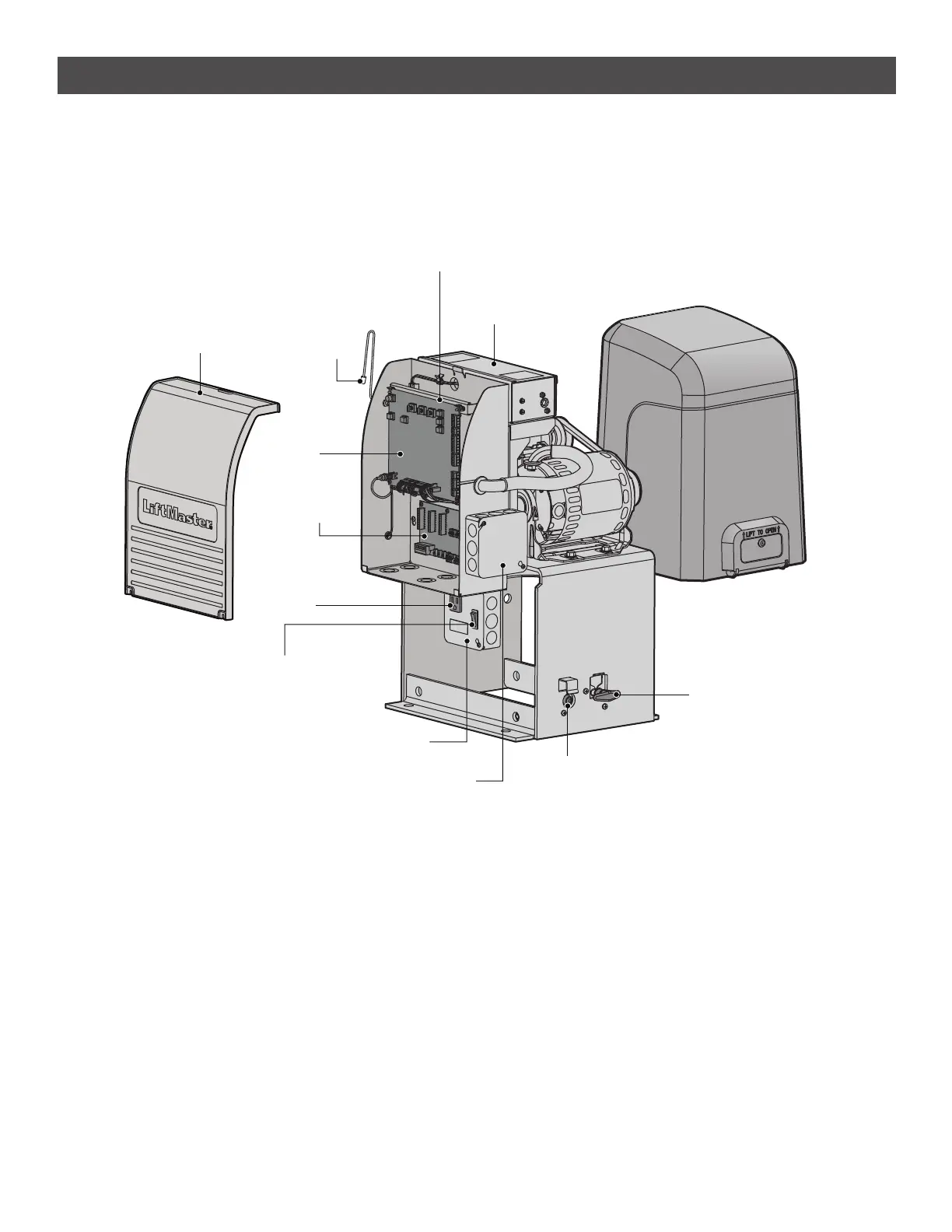

OPERATOR OVERVIEW
MANUAL RELEASE HANDLE
Pull the manual release handle to
manually open and close the gate.
JUNCTION BOX
Page 20
ACCESSORY POWER
OUTLET
JUNCTION BOX
Page 20
EXPANSION BOARD
Pages 10-13
AC POWER SWITCH
The AC Power switch on the operator
will turn the incoming 120/240 Vac
power ON or OFF.
CONTROL BOARD
Pages 5-9
DUST GUARD
COVER
ANTENNA
RESET BUTTON
• Press the reset button to stop a moving gate during a
normal open/close cycle, like a stop button.
• Press the reset button once while the gate is in open
position to disable the Timer-to-Close. The gate will stay
in the open position. To restart the Timer-to-Close either
press the reset button or activate the gate with a
programmed remote control.
• Press the reset button to shut off the alarm and reset the
operator.
SL3000U
LIMIT SWITCHES
Pages 14-15
POWER BOARD
(Located behind the control board)
Page 13
