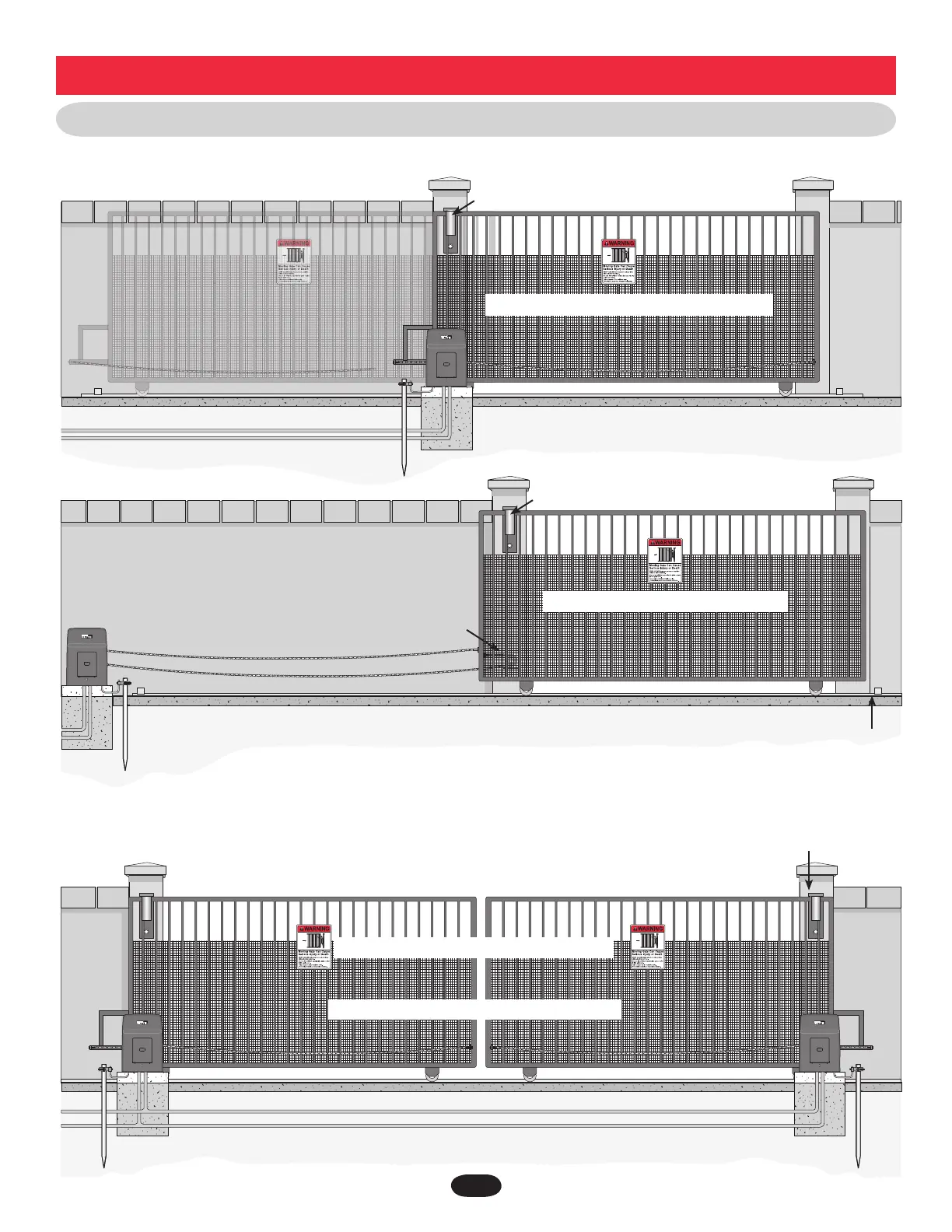

Master/Second Operators
Front or Rear Position with Single Operator
Low Voltage UL approved conduit
Low Voltage UL approved conduit
High Voltage UL approved conduit
Concrete Pad
Concrete Pad
Earth Ground is highly recommended.
Use the proper type earth ground rod for your area.
Earth Ground is highly recommended for each operator.
Use the proper type earth ground rod for your area.
Separate power supply for each operator.
Maximum gate length 37 ft.
Maximum gate length with long gate kit: 51 ft.
Maximum gate weight varies for operators.
Maximum gate length 37 ft. for each gate.
Maximum gate weight varies for operators.
High Voltage UL approved conduit
Warning Placard on both sides of gate.
Weld physical stops
on ends of gate rail.
UL approved catch roller with safety cover.
Idler pulley MUST have safety cover.
2 inch wire grid safety screen 48 inches high.
2 inch wire grid safety screen 48 inches high.
UL approved catch rollers
with safety covers.
Weld physical stops
on ends of gate rail.
Warning Placard on both sides of each gate.
INSTALLATION SETUPS
Installation
UL approved catch roller with safety cover.
Front Position
Rear Position
To Next Page
