21

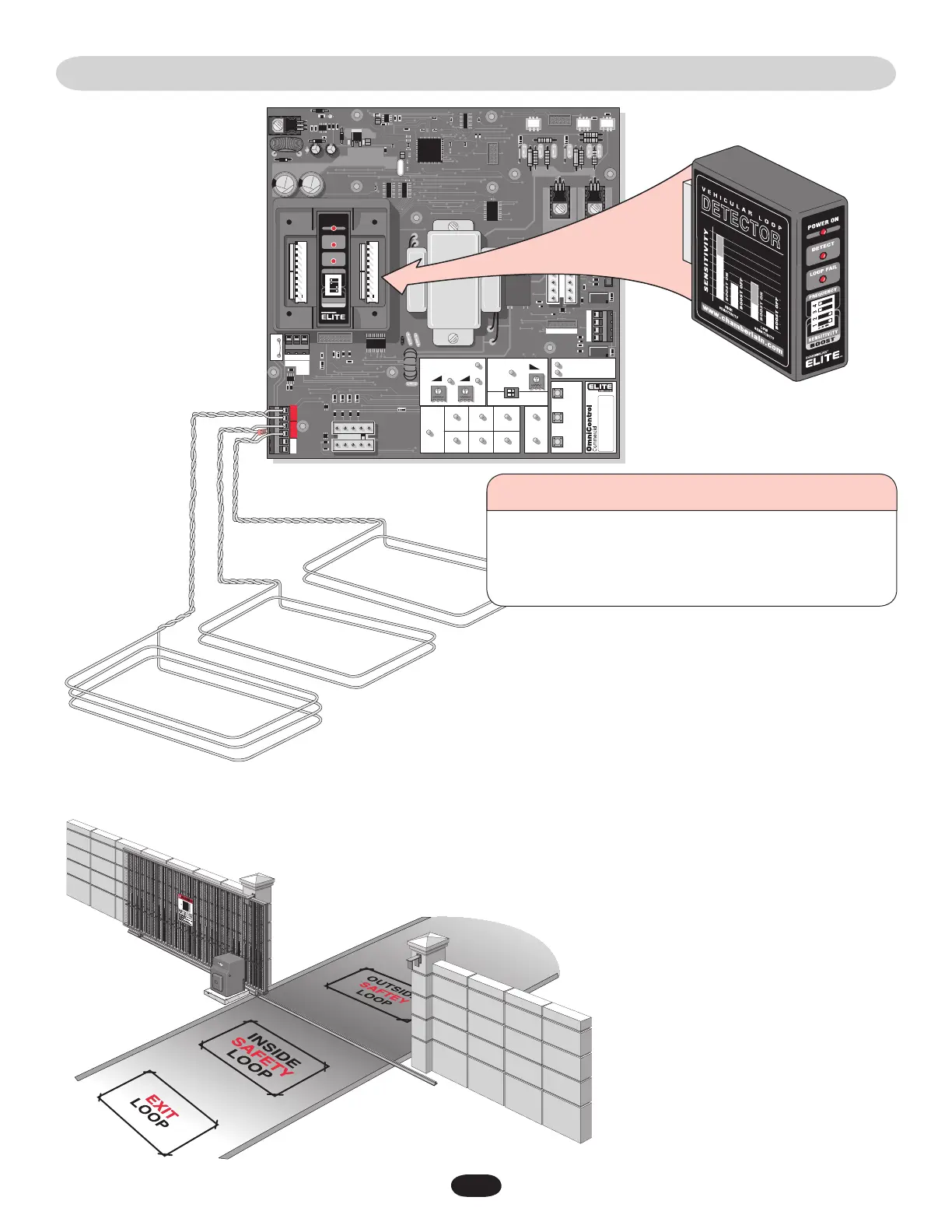

PLUG-IN LOOP DETECTOR WIRING
CENTER SAFETY EXIT
CENTER SAFETY EXIT
FIRE
DEPT.
1 3
STRIKE
OPEN
RADIO
RECEIVER
TIMER
SYSTEM ON
EXIT
LOOP
ALARM
SENSOR
REVERSE
SENSOR
OPEN
STOPCLOSE
SAFETY
LOOP
CENTER
LOOP
GATE
LOCKED
60
POWER
OVERLOAD
OFF
W4
OPEN LEFT
DC-BACKUP
ALARMSENSOR
OPEN RIGHT
3
SENSORS
RESET
MOTOR
1 3
1 3
COMMAND
PROCESSED
ON
G B
MS LINK
A
MADE IN USA
DETECT
BOOST
LOOP FAIL
POWER ON
FREQUENCY
SENSITIVITY
™
Outside
Property
Inside
Property
Not Used
Plug-In Loop Detectors
See Accessories
Contact your local dealer for information
about plug-in loop detectors.
The wire MUST be
twisted together
minimum 6 twists
per foot from the
end of the loop to
the control board.
NOTE: Refer to the plug-in loop detector
manual for more specific information.
Plug-In “Safety” Loop Detector - Allows gate to
stay open when vehicles are obstructing path.
Caution: Suggested for vehicles 14 feet or longer.
If the “Inside” and “Outside” safety loops are
connected to the same loop detector:
• They should be series connected to the detector.
• Have the same dimensions.
• Have the same number of wire turns.
Example of a inside and outside 2 wire turn loop
connected in series. (See “Installing Insulated Loop
Wire” on next page for more information)
Plug-In “Exit” Loop Detector - Allows gate to
automatically open for exiting vehicles.
Example of a 3 wire turn loop. (See “Installing
Insulated Loop Wire” on next page for more
information)
To AVOID damaging control board, disconnect ALL power to
operator before installing plug-in loop detectors.
Use a different frequency for every loop detector installed.
Inside
Safety Loop
Series Connected
Outside
Safety Loop
Exit Loop
WARNING
WARNING
CAUTION
ENGLISH
SPANISH
ADVERTENCIA
ADVERTENCIA
PRECAUCIÓN
ADVERTENCIA
WARNING
To Next Page
