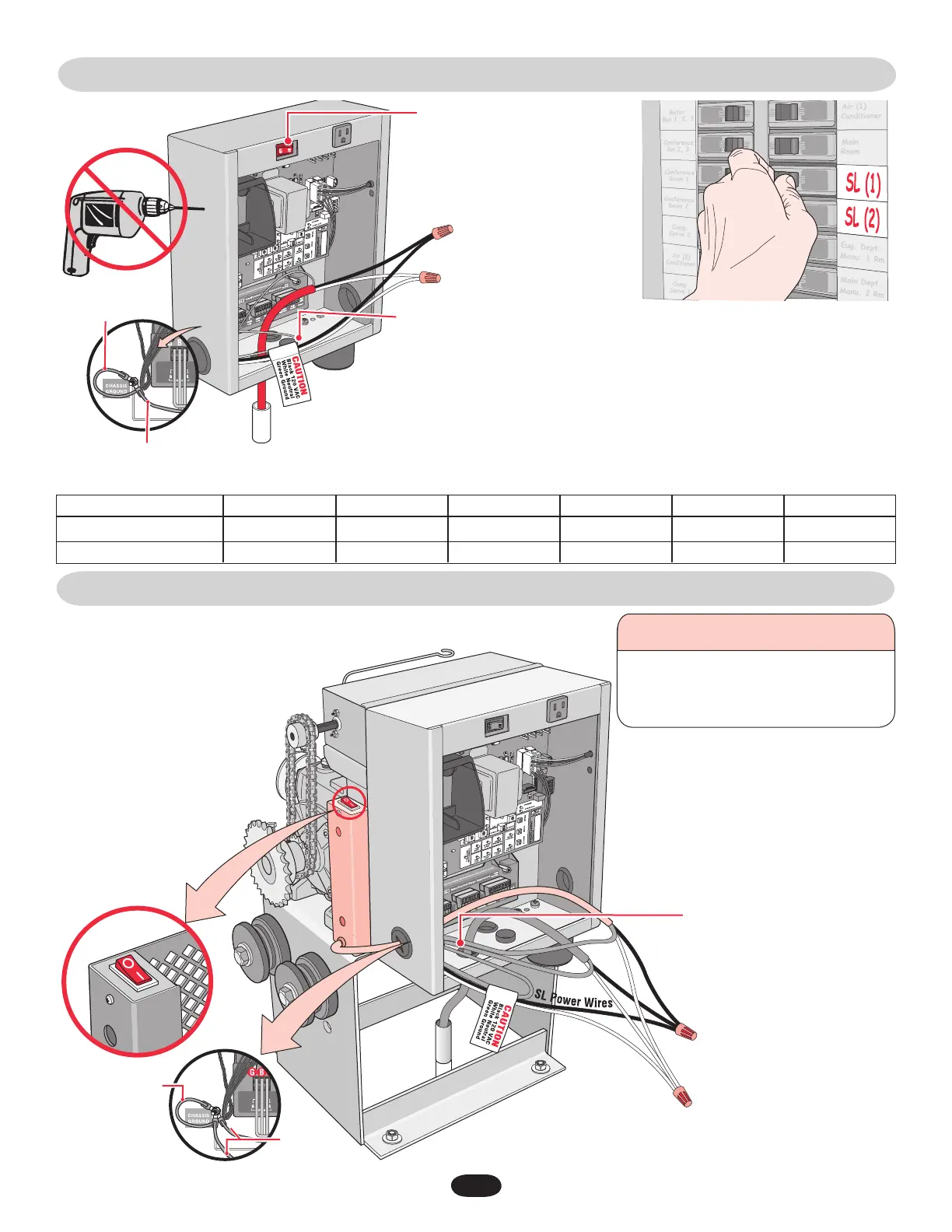

Connect the black, white and ground
wire from the heater to the 120Vac
power supply as shown. When the heater
switch is left in the “ON” position, the
heater will turn on and off automatically
when needed.
16
120Vac Power Wire
1/2 HP and Dual Motor
1 HP
16 Gauge
up to 150 FT
up to 75 FT
14 Gauge
250 FT
125 FT
12 Gauge
400 FT
200 FT
10 Gauge
650 FT
325 FT
8 Gauge
1000 FT
500 FT
4 Gauge
2200 FT
1100 FT
120Vac POWER CONNECTION
HEATER POWER CONNECTION
Earth Ground Rod Highly Recommended!
See previous page.
Use a 20 amp dedicated circuit for each operator.
Input power 120Vac, 60 Hz.
On-Off switch for operator.
Green Ground
Green Ground
Green Ground
Black 120Vac
White Neutral
Green Wires Ground
Green
Wires
Ground
Green Wire
Ground
Black Wires 120Vac
White Wires Neutral
Power supply in waterproof conduit.
Power
Supply
Switch should
left in the “ON”
position.
To reduce the risk of SERIOUS INJURY:
DO NOT touch the heater when switch is
on, heater may be hot.
WARNING
WARNING
CAUTION
ENGLISH
SPANISH
ADVERTENCIA
ADVERTENCIA
PRECAUCIÓN
ADVERTENCIA
WARNING
To Next Page
