29
CENTER SAFETY EXIT
CENTER SAFETY EXIT
FIRE
DEPT.
STRIKE
OPEN
RADIO
RECEIVER
TIMER
SYSTEM ON
EXIT
LOOP
ALARM
SENSOR
REVERSE
SENSOR
OPEN
STOP CLOSE
SAFETY
LOOP
CENTER
LOOP
GATE
LOCKED
60
POWER
OVERLOAD
OFF
W4
OPEN LEFT
DC-BACKUP
ALARM SENSOR
OPEN RIGHT
3
SENSORS
RESET
MOTOR
COMMAND
PROCESSED
ON
G B
MS LINK
A
MADE IN USA
NSOR
NSOR
NSOR
NSOR
1
NSOR
NSOR

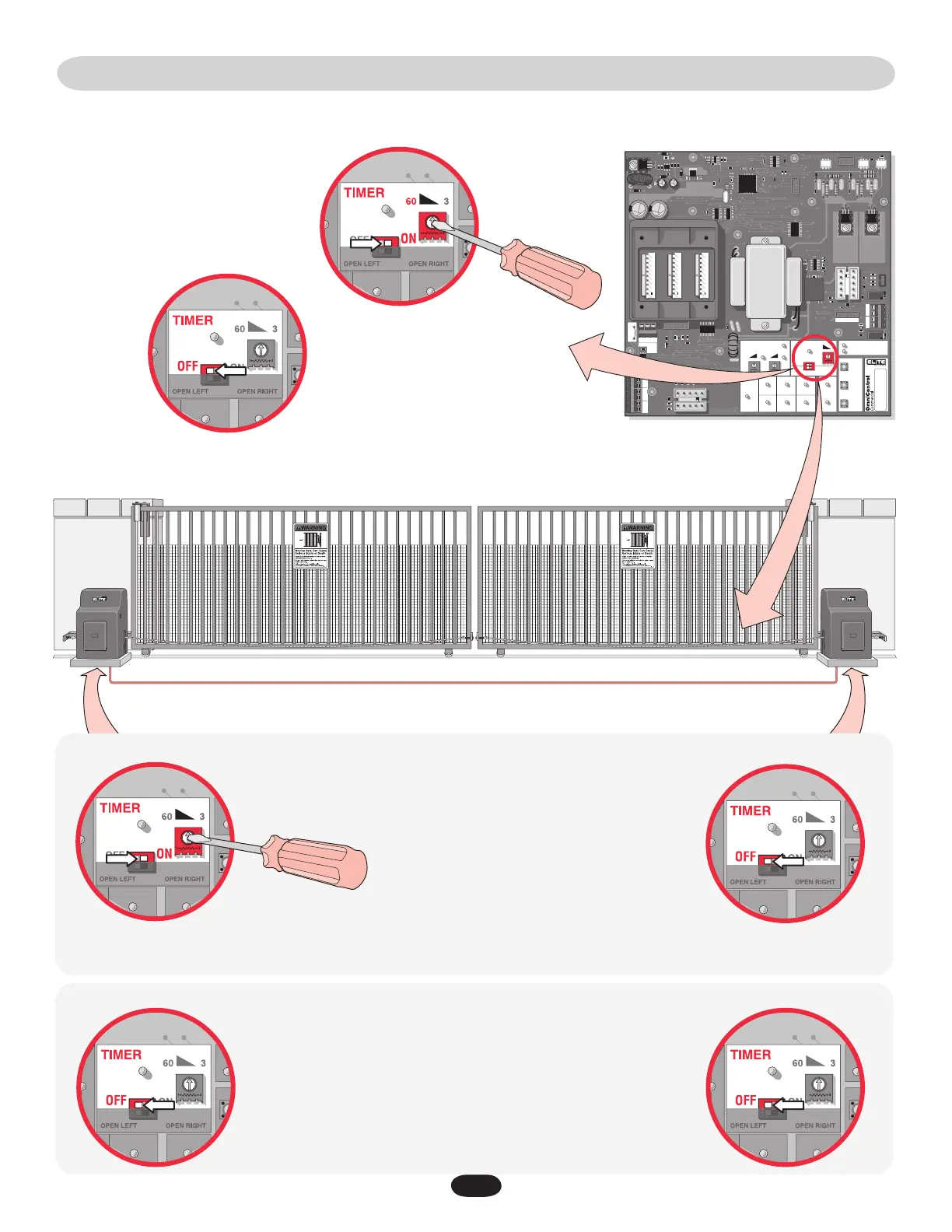

SETTING TIMER (ON, OFF)
To use the automatic close for the gate system
the timer switch should be put in the “ON”
position.
To use the push close command,
the timer should be
switched to the
“OFF” position.
Push button
once to open
gate, push
button again
to close gate.
Set Timer
1 to 60 seconds
1. Turn Master Timer ON.
2. Turn Second Timer OFF.
3. Use Timer on Master Board Only.
(1 to 60 seconds)
Master Board
Master Board Second Board
1. Turn BOTH timers OFF.
Single Operator
Master/Second Operators
with Timers ON
with Timers OFF
Operators need to be connected by M/S LINK. See M/S Link.
Master/Second control boards are interchangeable.
NOTE: If a secondary safety sensor device is
NOT used when the timer is ON, the gate
WILL hit a vehicle obstructing the gate path
before reversing during the close cycle.
NOTE: Push button once to open gate,
push button again to close gate.
M/S LINK
CENTER SAFETY EXIT
CENTER SAFETY EXIT
FIRE
DEPT.
STRIKE
OPEN
RADIO
RECEIVER
TIMER
SYSTEM ON
EXIT
LOOP
ALARM
SENSOR
REVERSE
SENSOR
OPEN
STOP CLOSE
SAFETY
LOOP
CENTER
LOOP
GATE
LOCKED
60
POWER
OVERLOAD
OFF
W4
OPEN LEFT
DC-BACKUP
ALARM SENSOR
OPEN RIGHT
3
SENSORS
RESET
MOTOR
COMMAND
PROCESSED
ON
G B
MS LINK
A
MADE IN USA
NSOR
NSOR
NSOR
NSOR
1
NSOR
NSOR
Second Board
To Next Page
