Outside Safety
Loop
Inside Safety
Loop
Outside Property
Inside Property
Outside Safety
Loop
Entrapment Danger
for OPEN Cycle
Inside Safety
Loop
Outside Property
Inside Property
Safety Danger
for CLOSE Cycle

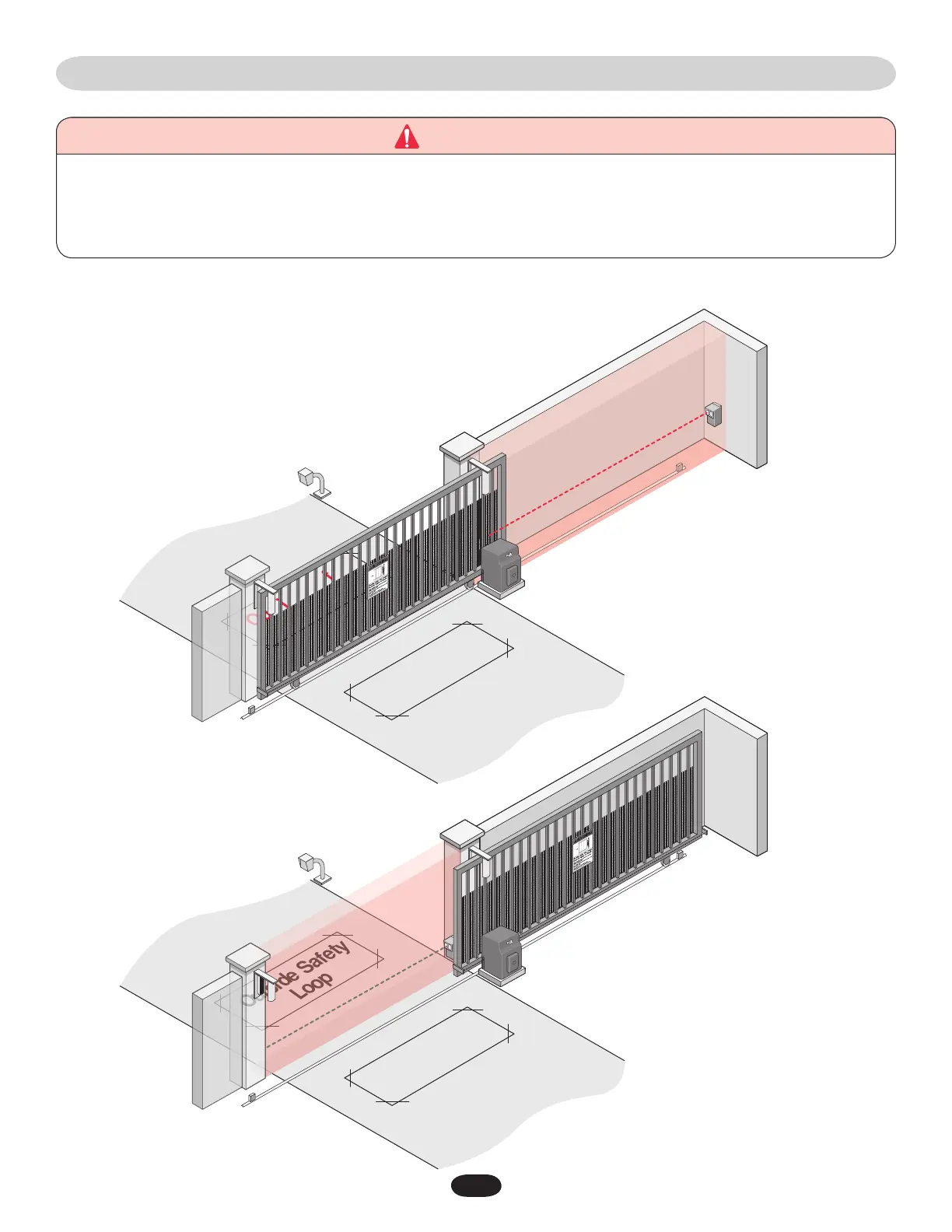

SUGGESTED SAFETY PROTECTION DEVICE LOCATIONS
To prevent SERIOUS INJURY or DEATH from a moving gate:
• Entrapment protection devices MUST be installed to protect anyone who may come near a moving gate.
• Locate entrapment protection devices to protect in BOTH the open and close gate cycles.
• Locate entrapment protection devices to protect between moving gate and RIGID objects, such as posts or walls.
WARNING
WARNING
CAUTION
ENGLISH
SPANISH
ADVERTENCIA
ADVERTENCIA
PRECAUCIÓN
ADVERTENCIA
WARNING
Install photoelectric sensors to protect against any entrapment
or safety conditions encountered in your gate application.
See Entrapment Protection Devices.
Safety loops allows the gate to stay open
when vehicles are obstructing the gate path.
Suggested for vehicles 14 feet or longer.
See Loop Detector Wiring.
Gate Rail Stops For safety
reasons, physical stops MUST
be installed on both ends of
the gate rail prior to installation
of the gate operator. This will
assure that the gate does not
derail while opening or closing
fully.
Non-Contact Sensors (Photoelectric Sensors)
