10"
8"
Concrete Pad
or
Optional Post
Mounting Plate
(See below)
11

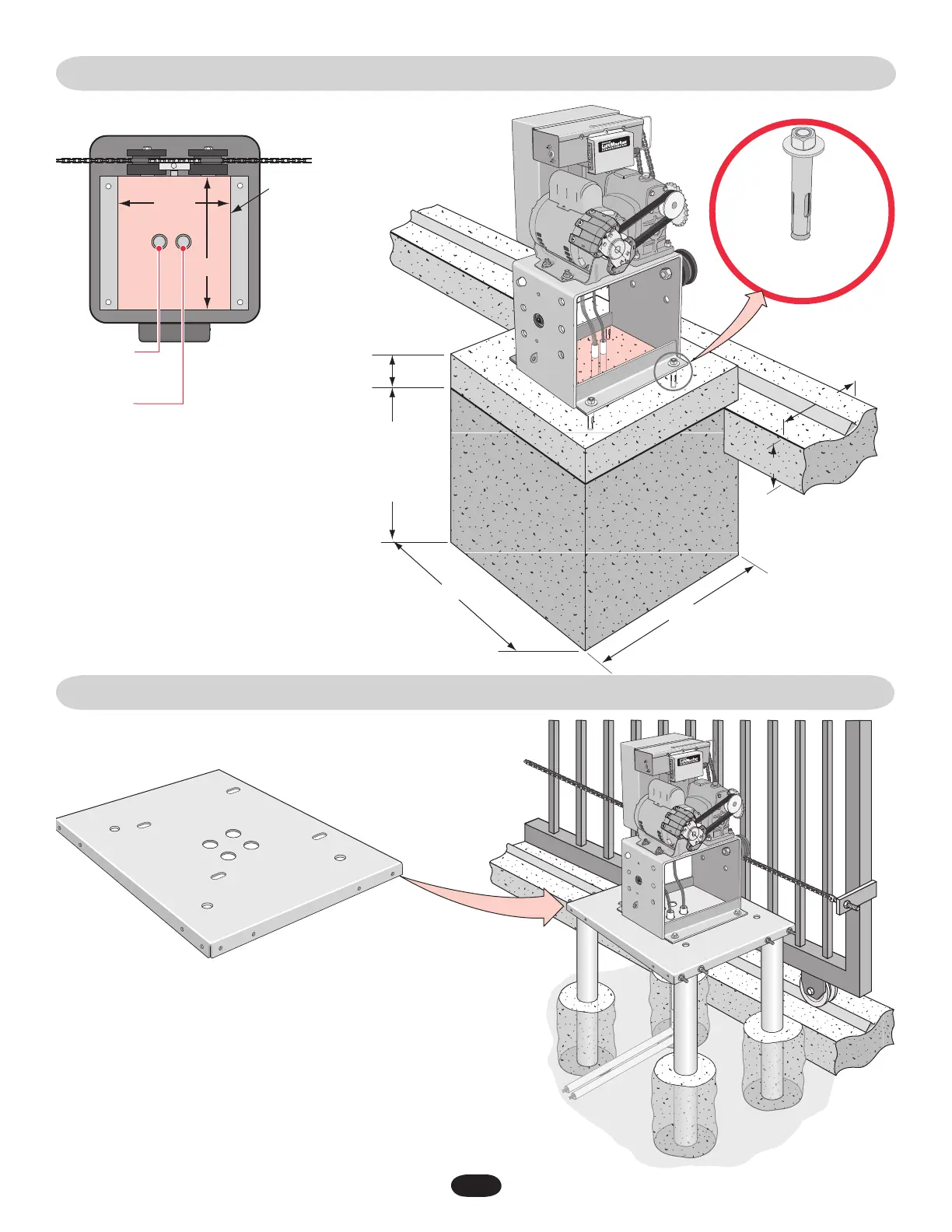

MOUNTING OPERATOR
POST MOUNTING PLATE (OPTIONAL)
4 Concrete Anchors
1/2" x 3 1/2"
Conduit area without
battery back-up.
Top Inside View
Concrete
(Reinforced
Recommended)
Below the
frost line.
Check all
local codes.
High voltage
conduit.
Low voltage
conduit.
Suggested installation for dirt ground.
The measurements depend on the type
of ground. (ie., asphalt, cement, dirt)
Check local building codes before
installation.
6"
Above
Ground
24"
13"
8.25"
24"
Post Mounting Plate
3" heavy steel posts can be
U-bolted to mounting plate
and cemented in ground.
Power and control
wiring should be run
in separate conduits.
To Next Page
