Troubleshooting
1. Probable Cause: Stuck remote control button.
Solution: Unstick remote control button.
2. Probable Cause: The radio receiver has malfunctioned in the
“ON” position.
Solution: Cycle the power to the radio receiver.
1. Probable Cause: Remote control battery is dead.
Solution: Replace remote control battery.
2. Probable Cause: The radio receiver has malfunctioned in the
“OFF” position.
Solution: Cycle the power to the radio receiver.
3. Probable Cause: Radio receiver’s signal is not getting to gate
operator.
Solution: Check wiring between receiver and surge suppressor.
4. Probable Cause: Remote is not programmed correctly.
Solution: Reprogram remote control, see page 28.
5. Probable Cause: Remote is not on the same frequency as the
radio receiver.
Solution: Verify that remote control frequency is 315 MHz.
6. Probable Cause: Blown surge suppressor.
Solution: Measure the resistance between pin 12 and 13 on the
surge suppressor (see page 14), if the circuit “closes” when
the radio receiver is transmitting, replace the surge suppressor.

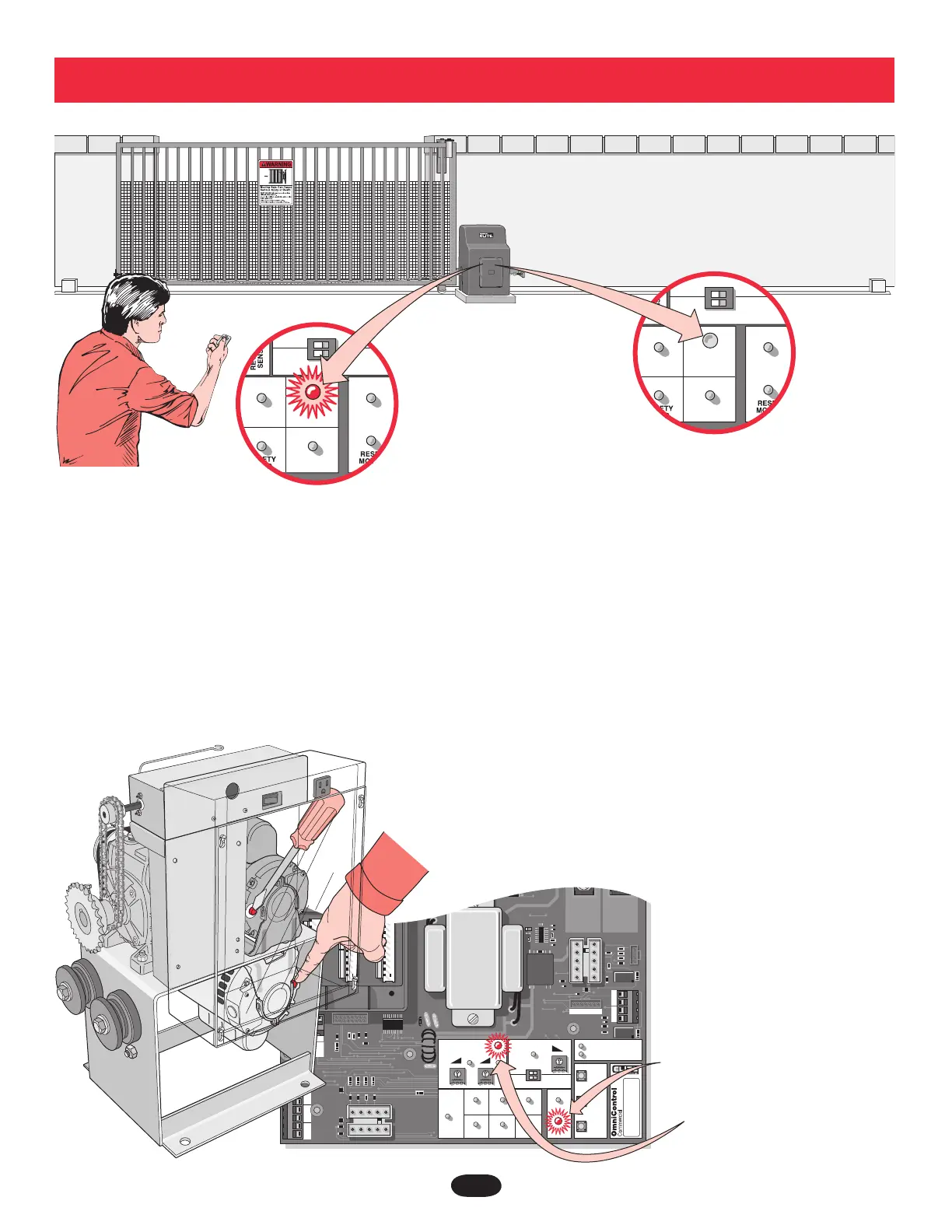

The Gate Will Not Operate with Remote:
The radio receiver LED on the
control board remains “ON” when using the remote control.
The radio receiver LED on the
control board remains “OFF” when using the remote control.
Resetting Motor(s)
NOTE: Press firmly to reset thermal breaker button(s). A long
slotted screwdriver may be needed to reach button on upper
motor.
Motor(s) need resetting when:
Reset Motor LED light flashes once,
THEN
System ON LED will flash rapidly
