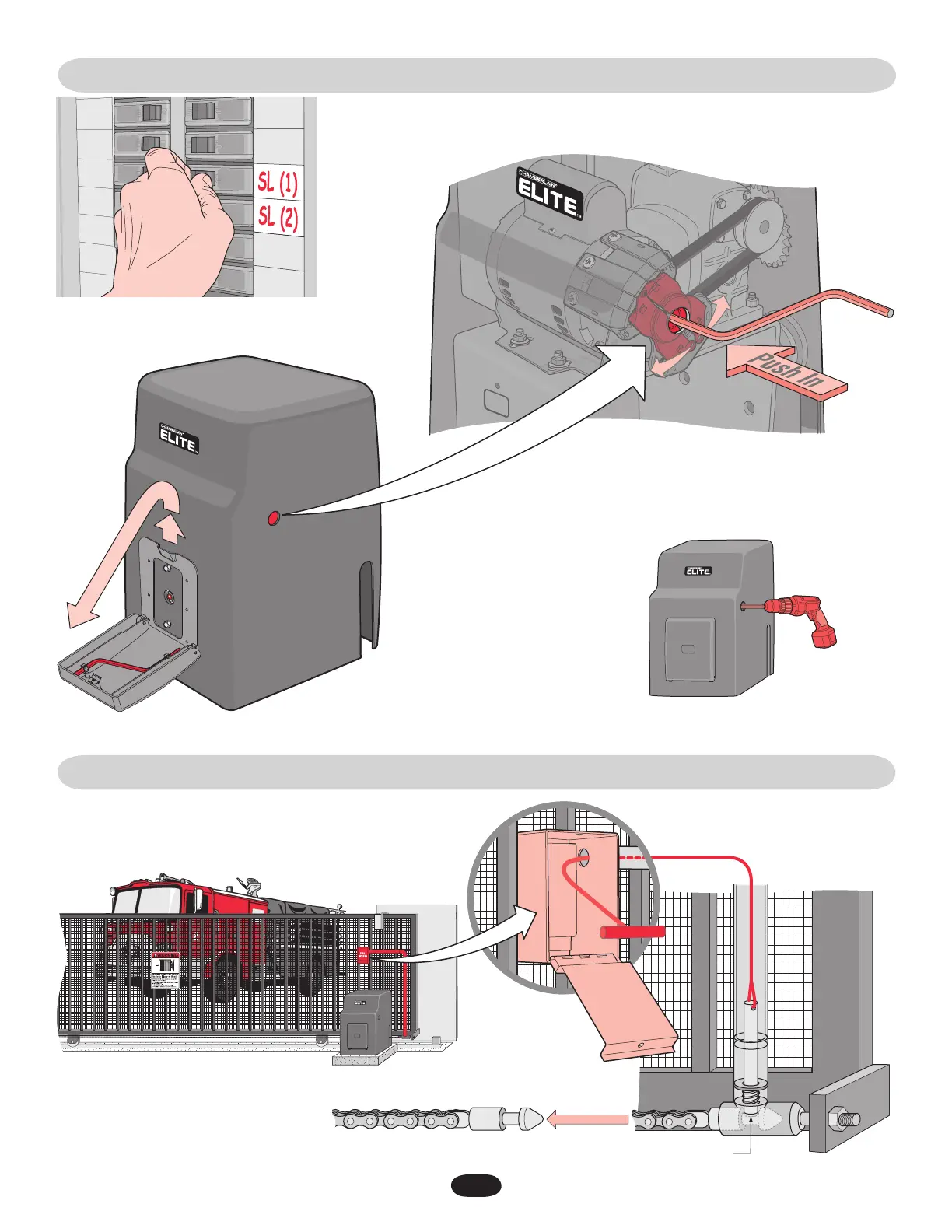

EMERGENCY MANUAL RELEASE
OPTIONAL MANUAL RELEASE
NOTE: YOU may use a
cordless power drill (6"/sec)
for quicker opening in
non-emergency situations.
Push the crank tool in hole. Safety releases will
separate. Turn the crank to open the gate.
Remove crank tool.
Allen wrench drill
bit size is 5/16"
The chain is held in place by a spring loaded pin.
Pull firmly on the “T” Handle
to release the chain.
NOTE: Use the dedicated breaker switch
to disconnect power to the operator.
Turn the power OFF!
Contact your local dealer for information
about a Fire Box Release.
To Next Page
