Because the coasting distance may
vary due to changes in temperature,
it is NOT recommended to install a
stop or catch post in front of the
gates path. To do so will cause the
gate to hit the post in certain
instances.
It is only recommended installing catch
rollers with safety covers on the side of a
post or wall with a minimal distance of half
an inch between the rollers and gate.
NOTE: For safety reasons, physical stops MUST be installed on both ends of the gate
rail prior to installation of the gate operator. This will assure that the gate does not
derail while opening or closing fully.
When fully opened, the end of the sliding gate should
stop at least five inches from an obstructing wall.
End View of Gate and Wall
10

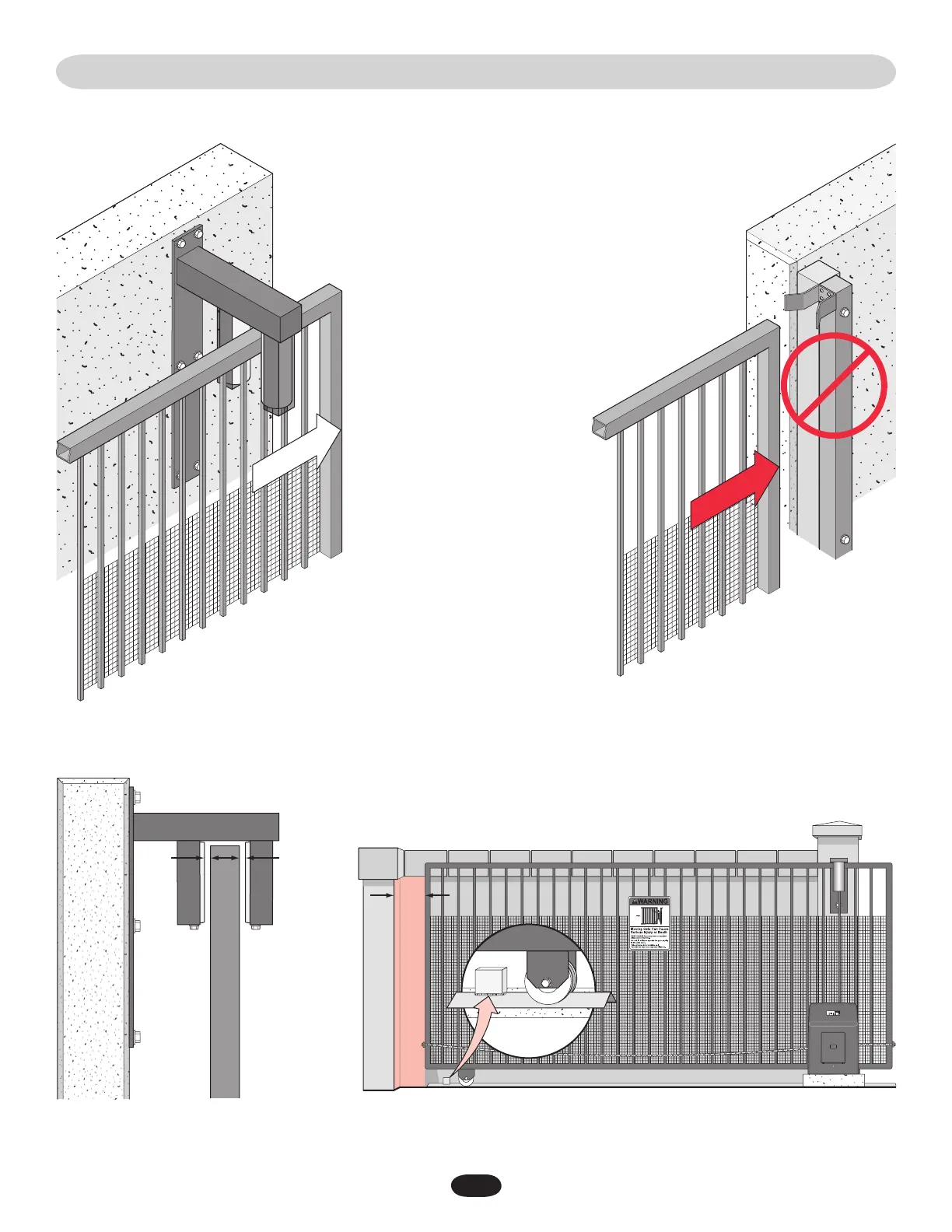

SAFETY CATCH ROLLERS AND GATE RAIL STOPS
Closing Gate
Closing Gate
5"
1/2"1/2"
Gate Rail Stop
Safety Catch Rollers
DO NOT use a
Gate Catch Post.
To Next Page
