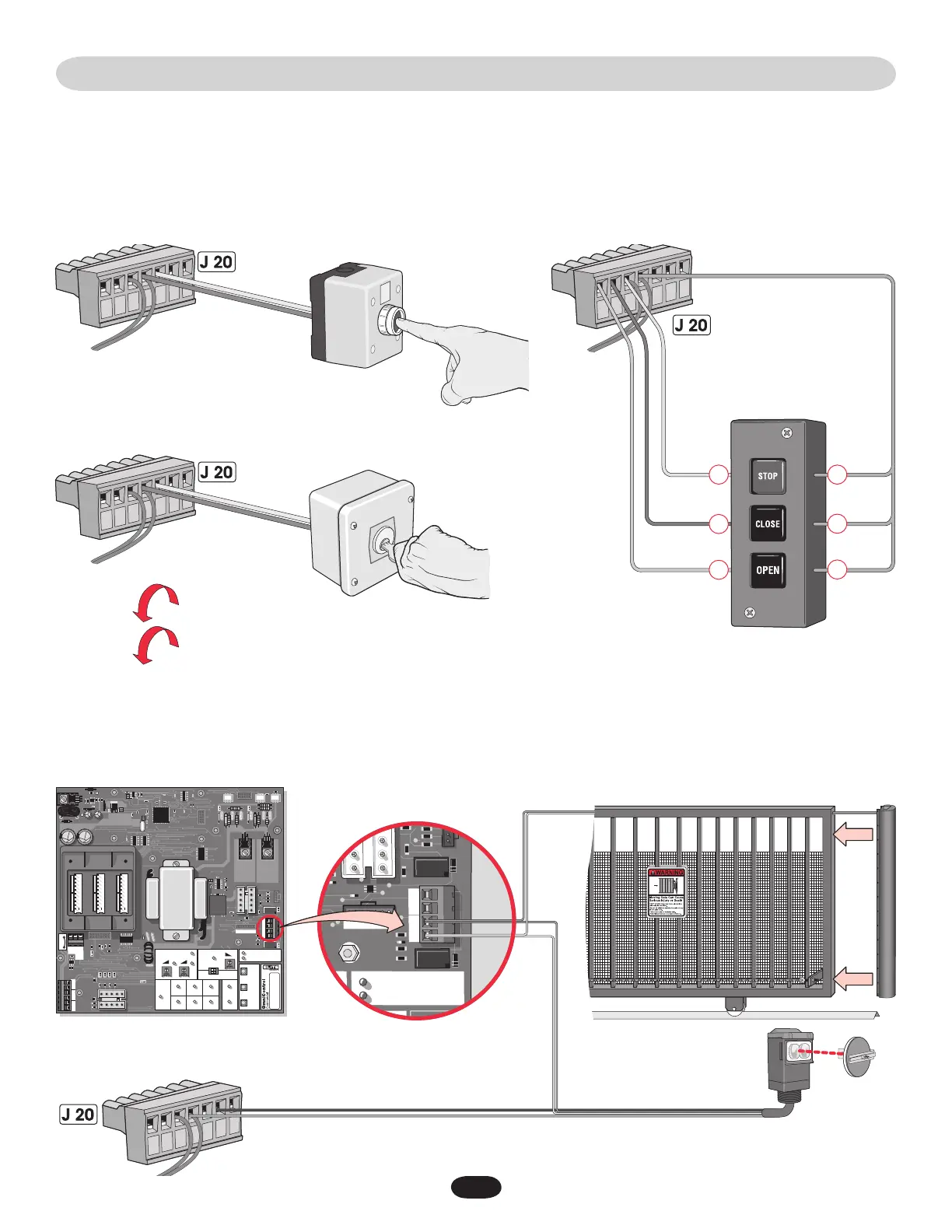

DC2000™ DEVICE WIRING
Manually Operated DC2000™ Devices
Manual external devices should be dry-contact which do not consume any current like push buttons or a key switch.
Key switch is for property owner’s emergency access ONLY. DO NOT FOR USE FOR A EMERGENCY FIRE/POLICE KEY ACCESS.
Contact your local Fire/Police municipalities for more information on correct Fire/Police emergency key access.
DC2000™ Entrapment Protection Devices
It is recommended using separate entrapment protection devices to maintain gate safety when the DC2000™ is needed for any reason.
The entrapment protection devices connected to the OmniControl™ board and surge suppressor WILL NOT protect the gate when there
is a AC power failure and the DC2000™ is used.
See Accessories
ComN.O.
N.O.
N.O.
Com
Ground
+12Vdc
Com
See Accessories
Push and HOLD button to Open.
Push button again and HOLD to Close.
OmniControl™ Board
Sensor Connection
Failsafe Photoelectric Sensor: If a photoelectric sensor is not working,
loses power or photoelectric sensor is blocked, then the photoelectric
sensor will stop all gate operation.
Push and HOLD a button to operate.
Turn and HOLD key to Open.
Turn key again and HOLD to Close.
Manual One-Button
3 Edge Sensor
12Vdc Failsafe
Photoelectric
Sensor
Manual 3-Button
Manual Key Switch
See Accessories
Reset button and
interlock wires,
Do Not Remove.
To Next Page
